Description
- Model: ABB 3BHB003688R0101
- Brand: ABB (Switzerland)
- Series: ACS6000 / MEGADRIVE-LCI Power Electronics
- Core Function: Integrated Gate-Commutated Thyristor (IGCT) Phase Module
- Product Type: High-Power Semiconductor Module
- Key Specs: 4.5 kV Blocking Voltage Water-Cooled Fiber Optic Control

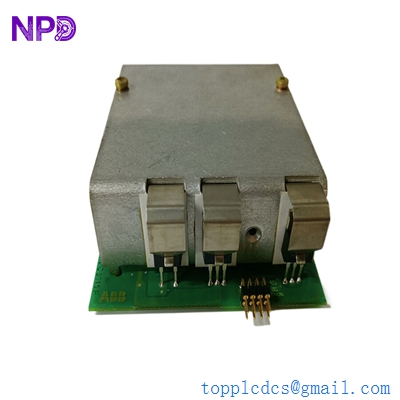

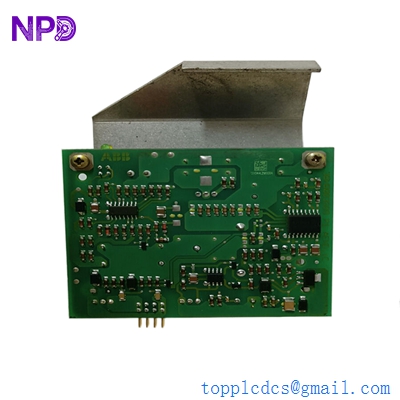

ABB 3BHB003688R0101
Key Technical Specifications
- Device Technology: IGCT (Integrated Gate-Commutated Thyristor)
- Peak Off-state Voltage: 4,500 V
- Max. Cont. Current: Approx. 1,100 A (Dependent on cooling flow)
- Cooling Type: Liquid/Water Cooled (Deionized water)
- Control Interface: Fiber Optic (for high-voltage isolation)
- Gate Drive Power: 24 VDC (Internal conversion)
- Switching Frequency: Optimized for Medium Voltage (MV) conversion
- Storage Temperature: -40 °C to +70 °C
- Compliance: IEC 60747, CE
Application Scenarios & Pain Points
The 3BHB003688R0101 is a heavy-hitter in the world of Medium Voltage (MV) drives. In an ACS6000 system, this module is responsible for the actual “switching” of megawatts of power. If one of these fails, your drive trips on “Overcurrent” or “Phase Loss,” and because these are water-cooled units, a failure can sometimes be messy. In my experience, these modules are the most critical spares to have on-site for any plant running high-power compressors, fans, or pumps.
Typical Application Scenarios:
- Metals & Mining (Rolling Mills) Used in the massive drives that power hot and cold rolling mills where rapid torque changes and high reliability are non-negotiable.
- Oil & Gas (Main Pipeline Compressors) Managing the speed of large compressors in LNG or natural gas pipelines. A module failure here stops the flow of product entirely.
- Marine Propulsion Used in diesel-electric propulsion systems for large vessels and cruise ships, providing the variable frequency needed for the main thrusters.
- Power Generation (Excitation Systems) Serving as the power stage for static excitation systems in large hydro or thermal power plants.
Case Study: The “Dirty Water” Trap
Background: A desalination plant in the Middle East reported frequent “IGCT Gate Power” alarms on their ACS6000 unit.
The Problem: Upon inspection, we found the internal heat sinks of the 3BHB003688R0101 were partially clogged. The deionized water system had been contaminated. The IGCT was running too hot, causing the onboard gate-drive electronics to drift and eventually trigger a shutdown.
The Solution: We replaced the stressed module with a fresh 3BHB003688R0101 and performed a complete flush of the cooling manifold. We also replaced the fiber optic patch cables which had become brittle from the heat.
Result: The drive returned to full capacity. The customer learned that monitoring the differential pressure of the cooling water is just as important as monitoring the electrical load.

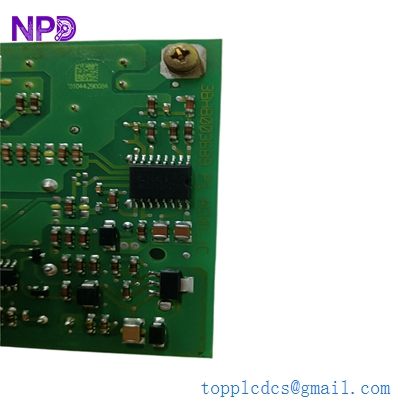

ABB 3BHB003688R0101
Similar Product Recommendations
When dealing with ABB power modules, the revision number (R0101) and the base semiconductor part number (often 5SHY series) are vital.
| Model Number | Compatibility | Application |
| 3BHB003154R0101 | ⚠️ Check Drawings | Often used in smaller frame ACS6000 units. |
| 3BHB003688R0001 | ✅ Direct (Legacy) | The earlier revision; R0101 is the improved successor. |
| 5SHY 35L4510 | ✅ Sub-Component | This is the actual IGCT semiconductor inside the 3BHB assembly. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Action |
| Gate Unit LED “Red” | Power Supply/Internal Fault | ✅ High | Verify 24V supply to the frame; if okay, the internal gate-drive is dead. |
| Fiber Optic “No Signal” | Dirty/Broken Fiber | ⚠️ Medium | Clean the fiber tips with lint-free wipes; check the AMC board output. |
| Leakage Near Terminals | Seal/O-ring Failure | ✅ High | STOP IMMEDIATELY. Water and high voltage are fatal. Check O-rings. |
| Temp Alarm (Software) | Cooling Flow Restricted | ⚠️ Medium | Check the water flow rate and temperature of the cooling loop. |
Technical SOP & Quality Guarantee
Handling an IGCT phase module requires more than just a screwdriver. These are sensitive power electronics:
- Fiber Optic Loop-back: We test the optical receivers on every 3BHB003688R0101 to ensure they trigger the gate correctly.
- Pressure Test: The cooling circuit is pressurized to 6 bar to ensure zero leaks at the connections.
- Insulation Test: We perform a high-pot test between the power terminals and the control electronics to verify isolation integrity.
- Cleaning: The modules are cleaned to remove any conductive dust or residue that could cause tracking in high-humidity environments.
Important Safety Note: Honestly, never attempt to replace this module without fully discharging the DC link capacitors in the ACS6000 rack. Even with the power off, those busbars can hold a lethal charge for 15-20 minutes.
