Description
Model: ABB 3BHB004027R0101 (GVC700AE01)
· Brand: ABB (Switzerland)
· Series: UNITROL / MEGATROL Excitation Systems
· Sub-Components: Includes 3BHB003152P201, 3BHB003152P104, and 5SXE05-0155
· Core Function: Gate Voltage Control (GVC) for high-power thyristor converters
· Condition: Brand New Surplus (Original Factory Stock)
· Type: Control & Drive Module
- Logic Voltage: 24 V DC (nominal)
- Gate Drive Outputs: Fiber optic or electrical pulse triggered
- Board Assembly: Integrated 3BHB003152P201 Logic Board
- Protection Circuitry: Includes 5SXE05-0155 surge suppression/interface
- Compatibility: Designed for ABB Power Electronics converters (ACV/DCV)
- Communication: High-speed serial link for firing angle synchronization
- Insulation Class: High-voltage isolation for power semiconductor interfaces
- Operating Temp: -10°C to +55°C
- Cooling: Natural convection / Forced air (system dependent)
- Weight: Approximately 1.8 kg

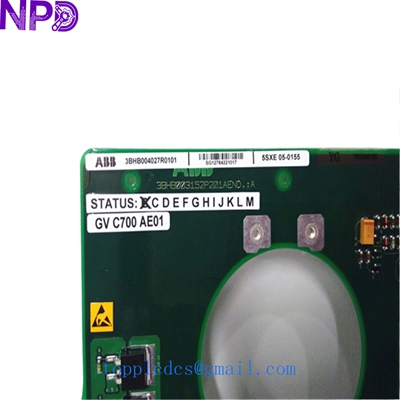

3BHB004027R0101 GVC700AE01 3BHB003152P201 3BHB003152P104 5SXE05-0155
Installation & Configuration Guide
Phase 1: Pre-Installation
⚠️ High Voltage Warning: This module interfaces directly with high-power thyristor bridges. Ensure the main circuit breaker is locked out and the DC link capacitors are fully discharged. Use a calibrated high-voltage meter to verify zero potential before opening the cabinet.
Tools Required: · Torque wrench (for electrical connections) · Fiber optic cleaning kit (if using optical links) · Anti-static mat and wrist strap · newplcdcs datasheet reference
Phase 2: Removal of Old Module
- Fiber Optic Care: If your unit uses fiber optics (3BHB003152P104 variants), do not bend the cables beyond a 50 mm radius. Label each fiber clearly.
- Disconnect Multi-pin Connectors: Carefully release the locking tabs on the ribbon cables.
- Mechanical Removal: Unscrew the mounting standoffs. Check the rear of the board for any signs of arcing or heat damage on the backplane.
Phase 3: New Module Installation
- Verify Hardware Revision: Ensure the “P” suffixes (e.g., P201 vs P104) match exactly. Sub-component mismatches can lead to timing errors in thyristor firing.
- Seat the Module: Align the board with the mounting pins. Do not force the connectors; they should slide in with moderate pressure.
- Torque Connections: If there are screw terminals for gate leads, tighten to the specified 0.6 N·m torque to prevent vibration-induced loosening.
Phase 4: Commissioning
- Control Power Only: Apply only the 24 V DC control power first. Observe the GVC700AE01 status LEDs.
- Pulse Test: Use the ABB service tool to perform a “Firing Pulse Test” at low voltage to verify all thyristor gates are receiving the trigger signal.
- Full Load Sync: Gradually increase the main power while monitoring the synchronization waveforms on an oscilloscope if necessary.

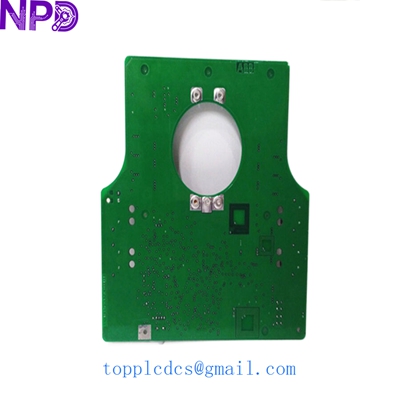

3BHB004027R0101 GVC700AE01 3BHB003152P201 3BHB003152P104 5SXE05-0155
Customer Cases & Industry Applications
Case 1: Marine Propulsion Drive Recovery
Situation: A LNG carrier equipped with an ABB propulsion drive experienced a “Gate Drive Fail” alarm while at sea. The GVC module (3BHB004027R0101) had suffered a component failure due to long-term thermal stress.
Task: The ship was operating on reduced power. The lead time for a new unit from the European factory was 8 weeks—far too long for a vessel on a tight charter schedule.
Action: We dispatched a New Surplus unit from our Shenzhen warehouse via DHL Express to the ship’s next port of call in Singapore. Our team provided the technical drawings for the 3BHB003152P201 sub-board configuration.
Result: The onboard chief engineer replaced the module during a 6-hour port stay. The drive passed self-diagnostics immediately, and the vessel resumed full-speed operations, avoiding significant charter penalties.
Case 2: Hydroelectric Plant Excitation Upgrade
Situation: A hydro plant using UNITROL systems wanted to refresh their critical spares inventory. They were using an older version of the GVC board and needed the exact 3BHB004027R0101 revision to ensure 100% compatibility without software changes.
Action: The plant purchased a matched pair of modules for their two main generators. We provided the individual test reports for each sub-component (5SXE05-0155 and P104 boards).
Result: During the annual maintenance shutdown, one unit was tested and installed. It functioned perfectly with the existing firmware, proving that maintaining “New Surplus” stock of specific revisions is a safer bet than trying to integrate newer, potentially incompatible hardware.
3BHB004027R0101 GVC700AE01 3BHB003152P201 3BHB003152P104 5SXE05-0155
Frequently Asked Questions (FAQ)
Q1: What is the difference between the 3BHB003152P201 and P104 boards? A: These are sub-assemblies of the GVC700. The P201 is typically the main logic processing board, while the P104 often handles the physical interface or fiber optic signal distribution. They are sold as a complete GVC700AE01 assembly to ensure timing synchronization.
Q2: Is this module compatible with MEGATROL systems? A: Yes, the 3BHB004027R0101 is a standard gate control module used in both UNITROL 6000 and MEGATROL power electronics platforms. However, always verify your specific system’s “Bill of Materials” (BOM) to match the R-revision.
Q3: Can I buy the 5SXE05-0155 component separately? A: We prefer to sell the complete GVC700AE01 assembly to guarantee performance. However, if you only need the interface component, please contact our sales team to check individual component availability.
