Description
🔧 Product Overview

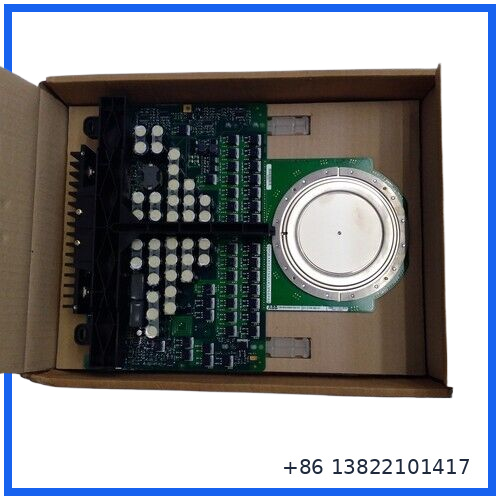

The ABB 5SHY3545L0009 is an IGCT (Integrated Gate-Commutated Thyristor) Module designed for high-power industrial power-electronics applications.
ABB identifies 3BHB013085R0001 as the ABB Product ID and 5SHY 3545L0009 as the ABB Type Designation, with the catalog description listed as IGCT MODULE. The related identifiers 3BHE009681R0101 and GVC750BE101 are also associated with this configuration.
IGCT technology is used in high-power converter architectures where controlled semiconductor switching is required. The device is a power-electronics component rather than a PLC, DCS I/O module, or standalone drive controller.
⭐ Key Features
🔹 ABB 5SHY3545L0009 IGCT module
🔹 ABB Product ID: 3BHB013085R0001
🔹 Associated Product ID: 3BHE009681R0101
🔹 Associated designation: GVC750BE101
🔹 Integrated Gate-Commutated Thyristor technology
🔹 Designed for high-power switching applications
🔹 Suitable for industrial power-electronics systems
🔹 Used as a power semiconductor component within larger converter assemblies
🔹 Suitable for maintenance and replacement of compatible ABB power-electronics equipment
📋 Technical Information
Brand: ABB
Type Designation: 5SHY 3545L0009
Product ID: 3BHB013085R0001
Associated Product ID: 3BHE009681R0101
Associated Designation: GVC750BE101
Product Type: IGCT Module
Technology: Integrated Gate-Commutated Thyristor
Product Category: Power Semiconductor / Converter Component
Application: High-power industrial power electronics
Product Family: ABB Drives / Power Electronics Spare Parts
ABB Catalog Description: 5SHY 3545L0009; IGCT MODULE
Product Net Weight: Approx. 3.4 kg according to ABB product data
⚠️ Important: Exact voltage, current, gate-drive, cooling and switching parameters should be verified against the complete ABB drive/converter configuration and the physical module marking. Published third-party specifications for this part are inconsistent, so they should not be used as a substitute for the ABB documentation.
⚙️ Function
An IGCT is a high-power semiconductor switching device used to control the flow of electrical energy inside converter and drive equipment.
In a typical power-electronics assembly, the IGCT works together with an appropriate gate-control/driver arrangement. The control circuitry provides the required switching commands, while the IGCT performs the high-power switching operation.
The GVC750BE101 designation is commonly associated with this IGCT configuration. The complete assembly should therefore be treated as a matched power-electronics component set rather than assuming that similarly numbered IGCT modules are interchangeable.
🏭 Typical Applications
Medium-Voltage Drives
IGCT technology is widely used in high-power motor-drive converter architectures.
Power Conversion Systems
Suitable for industrial converter equipment where high-power semiconductor switching is required.
Industrial Power Electronics
Used as a replacement component within existing ABB power-electronics assemblies.
Power Generation Equipment
Can be found in high-power converter and excitation-related equipment depending on the system configuration.
Maintenance & Spare Parts
The exact part number is particularly important when replacing an obsolete or failed semiconductor module in an existing ABB installation.
🔌 Installation & Replacement Notes
- Verify the complete marking on the existing device before ordering.
- Confirm 5SHY3545L0009, 3BHB013085R0001, 3BHE009681R0101, and GVC750BE101 against the existing assembly where applicable.
- Completely isolate the converter or drive from its power source before replacement.
- Follow the manufacturer’s DC-link discharge and high-voltage safety procedures.
- Inspect the heatsink, mounting surface, thermal interface and mechanical clamping arrangement.
- Check the gate-driver connection and associated control components before energizing the replacement.
- Do not substitute another 5SHY-series IGCT solely because the housing or mounting pattern looks similar.
- After installation, perform appropriate insulation, gate-control, switching and system-level commissioning tests according to the equipment service procedure.
⚠️ This is a high-power semiconductor component. Installation and testing should be performed by qualified personnel familiar with medium-voltage/high-power converter equipment.
🔍 Identification Checklist
When identifying this part, check all available markings:
- ABB logo
- 5SHY3545L0009
- 3BHB013085R0001
- 3BHE009681R0101
- GVC750BE101
- Manufacturer labels
- Terminal configuration
- Mechanical dimensions
- Mounting arrangement
- Gate-driver interface
- Cooling arrangement
ABB’s product information specifically identifies 3BHB013085R0001 as 5SHY 3545L0009; IGCT MODULE, which is the strongest identification point for this listing.
❓ FAQ
Q: What is ABB 5SHY3545L0009?
A: It is an ABB IGCT Module for high-power power-electronics applications.
Q: What does 3BHB013085R0001 identify?
A: It is the ABB Product ID associated with the 5SHY 3545L0009 IGCT Module.
Q: What is GVC750BE101?
A: GVC750BE101 is an associated designation found with this IGCT configuration and its gate-control arrangement.
Q: Is 3BHE009681R0101 the same product?
A: It is an associated ABB identifier for this configuration. Before replacement, compare the complete part-number combination and physical markings.
Q: Is this a PLC module?
A: No. It is a high-power semiconductor component used in power-electronics equipment.
Q: Can I replace it with another ABB 5SHY-series module?
A: Not automatically. Electrical characteristics, gate-drive compatibility, mechanical mounting, cooling and system configuration must all match.
Q: What systems can use this type of component?
A: Applications can include high-power industrial drives and converter systems. The exact system compatibility should be confirmed from the equipment model and original configuration.
🔧 Related ABB IGCT / Power-Electronics Models
- ABB 5SHY3545L0009
- ABB 5SHY3545L0010
- ABB 5SHY3545L0014
- ABB 5SHY3545L0016
- ABB 5SHY4045L0003
- ABB 5SHY4045L0006
- ABB 5SHY5055L0002
- ABB 3BHB013085R0001
- ABB 3BHB020720R0002
- ABB GVC736BE101
These are related ABB power-semiconductor or gate-control part numbers, but they should not be considered direct substitutes without checking the complete drive/converter configuration.
