Description
- The ABB 3BHE017628R0102 PPD115A102 is a high-reliability, microprocessor-based drive control and processing board engineered specifically for ABB’s high-power industrial excitation and drive delivery systems, such as the UNITROL 6000 and ACS series. This advanced control module executes complex algorithms for firing angle calculations, voltage regulation, and precise dynamic response management. Built on a ruggedized PCB platform with specialized industrial component integration, it provides stable processing power, comprehensive diagnostic coverage, and high-speed communication interfaces required to maintain synchronized grid connections and heavy machinery protection.
Product Datasheet & Specifications
- Manufacturer: ABB
- Part Number: 3BHE017628R0102
- Model Designation: PPD115A102 (often referred to as PPD115 A102)
- Product Type: Drive Power Processing & Control Card
- Internal Architecture: High-speed DSP / FPGA processing core
- Input Operating Voltage: 24 V DC internal system supply
- Power Consumption: System-load dependent (typically under 15 Watts)
- Approximate Dimensions: 23.4 cm x 16.8 cm x 3.2 cm
- Approximate Weight: 620 grams (0.62 kg)
- Country of Origin: Switzerland / Germany
- Certification Standards: CE Certified, RoHS Compliant, IEC 61800 Industrial Drive Standards
- Communication Interface: High-speed fiber-optic linkages, specialized drive-bus channels
ABB 3BHE017628R0102 PPD115A102
ABB 3BHE017628R0102 PPD115A102

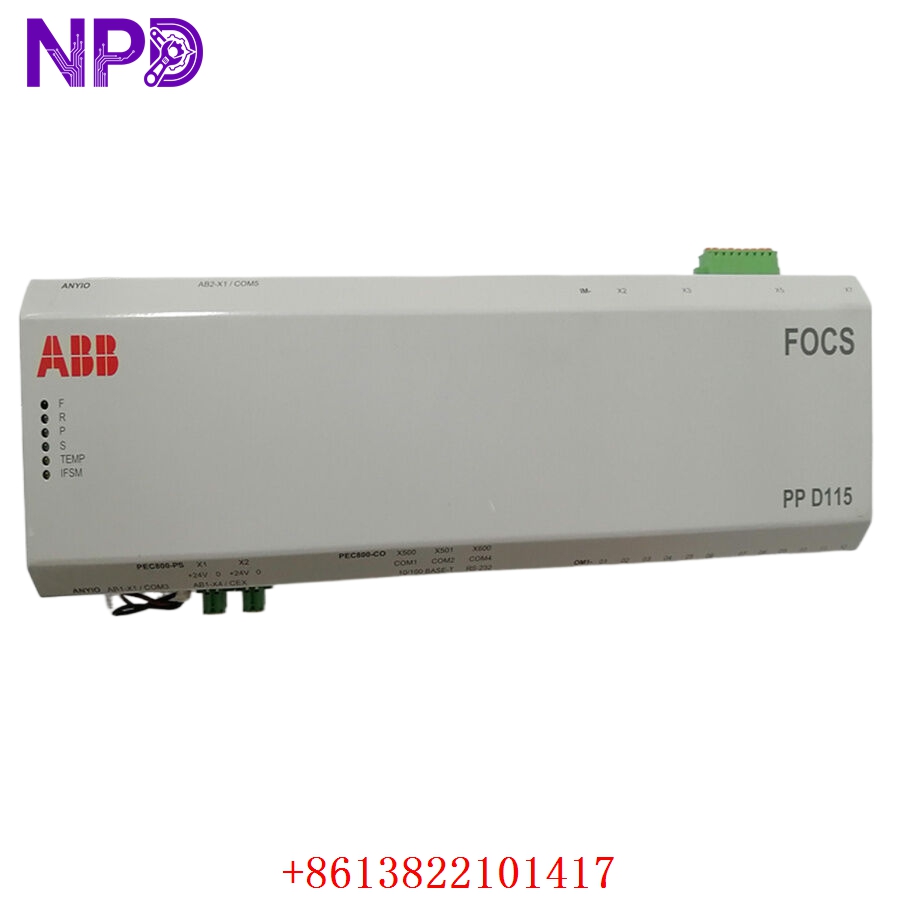

ABB 3BHE017628R0102 PPD115A102
ABB 3BHE017628R0102 PPD115A102
Key Application Fields
- Power Plant Excitation: Functions as the core control card within UNITROL static excitation systems for large synchronous generators.
- Heavy Duty Motor Drives: Manages real-time processing and control loops for medium-voltage variable frequency drives (VFDs).
- Marine Propulsion Control: Coordinates dynamic phase adjustments and motor speed parameters for electric ships and drilling platforms.
- Metal & Steel Rolling Mills: Regulates fast-acting high-torque requirements on heavy material processing rollers.
- Chemical Process Compression: Controls large-scale compressor motor lines that require continuous, uninterrupted runtime profiles.
Product Instructions & Guidelines
- Electrostatic Protection: Always wear an earth-grounded anti-static wrist strap and handle the module strictly by its outer plastic edges or faceplate frame to avoid discharging static electricity into sensitive CMOS logic chips.
- Slot Alignment and Security: Ensure the carrier panel or control rack chassis main power is completely turned off. Align the PPD115A102 edge connectors with the rack card guides, press straight inward until the multi-pin plugs seat firmly into the backplane, and tighten the retaining screws.
- Fiber-Optic Connection Cleanliness: Keep the protective dust boots on the fiber optic ports until the cables are ready to connect. Clean the ends of the fiber connectors using specialized fiber-wipes to ensure clear light transmission across control channels.
- Firmware Verification: Cross-check the existing system application software version with the pre-loaded firmware on the replacement board. Use the ABB DriveWindow or specialized engineering workspace to sync parameters if needed.
- Ambient Airflow Management: Ensure that electrical cabinet cooling fans are fully functional. Thermal buildup from restricted airflow around high-speed processing boards can reduce component life and cause accidental safety shutdowns.
Q&A – Frequently Asked Questions
- Q: What is the primary purpose of the optical ports found on the front of the PPD115A102 board?
- A: These high-speed fiber-optic interfaces provide noise-free, isolated transmission of firing commands and real-time feedback data between the central control processor and remote gate driver boards.
- Q: Does this module require standalone field parameter programming before hardware swap out?
- A: The hardware itself contains core boot-loader code. However, system operating values, motor curves, and excitation tuning parameters must be downloaded from your engineering station or uploaded automatically from the system flash memory backup module upon startup.
- Q: How does the processing card behave if it detects an internal timing or communications error?
- A: The module triggers its internal hardware watchdog circuit, illuminates a red fault LED on the front panel, switches its system status output to “Not OK”, and immediately commands a safe drive shut-off loop to protect the power electronics.
- Q: Can this exact board replace other PPD115 variants directly?
- A: It is vital to match the exact hardware revision tail code (R0102 / A102). While different variants may belong to the same family, subtle changes in on-board memory arrays or component tolerances can affect compatibility with existing drive firmware.
