Description

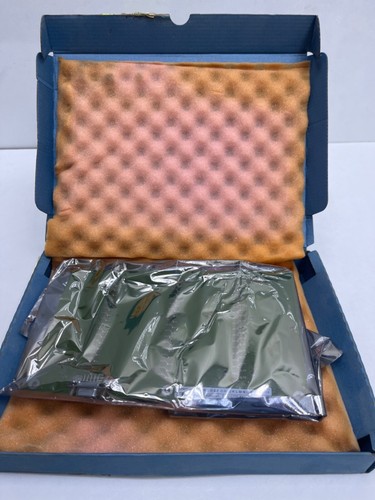

The ABB 3BHE021083R0101 is a High Voltage Detection (HVD) board designed for use within ABB’s high-power electronics systems, specifically the UNITROL 6000 excitation systems and MEGATROL frequency converters. This board functions as a safety and monitoring interface that detects the presence and magnitude of high voltages in the DC link or AC bus sections. It converts high-voltage levels into isolated, low-voltage signals that can be safely processed by the system’s central controller (such as the AC 800PEC).
- System Compatibility: UNITROL 6000 / MEGATROL / ACS6000
- Function: High-voltage sensing and galvanic isolation
- Detection Range: Typically supports voltages up to several kilovolts (depending on external resistor scaling)
- Isolation Type: Fiber-optic output and high-creepage magnetic isolation
- Accuracy: High-precision potential sensing for voltage regulation loops
- Power Supply: 24V DC auxiliary input
- Redundancy: Integrated into dual-channel monitoring architectures
Product Datasheet
| Feature | Specification |
|---|---|
| Model | ABB 3BHE021083R0101 |
| Board Type | High Voltage Detection (HVD) |
| Dimensions | 210 x 135 x 40 mm |
| Weight | 0.52 kg |
| Country of Origin | Switzerland |
| Connector Type | Fiber-optic transceivers and high-voltage screw terminals |
| Compliance | IEC 61800-5-1 (Safety for Power Conversion) |
Application Fields
This board is a critical safety and control component in heavy power infrastructure:
- Excitation Systems: Monitoring the generator field voltage in UNITROL 6000 systems to ensure field overvoltage protection.
- Large AC Drives: Sensing the DC link voltage in ACS6000 drives to manage braking resistors and power flow.
- Static Frequency Converters (SFC): Providing voltage feedback for grid-synchronization in hydroelectric and pumped-storage plants.
- Renewable Energy Converters: Monitoring the output of large-scale solar or wind power conversion units.
Product Instructions
- High Voltage Safety: WARNING. This board interfaces directly with high-voltage circuits. Ensure the system is completely de-energized, isolated, and grounded according to local electrical safety standards before installation.
- Mounting: Install the board onto the designated high-insulation standoffs. Maintain the specified air and creepage distances between the high-voltage terminals and other conductive parts of the cabinet.
- Wiring: Connect the high-voltage sense leads to the dedicated input terminals. Use shielded cables for the low-voltage auxiliary power and fiber optics for the signal output to prevent electromagnetic interference (EMI).
- Fiber-Optic Link: Ensure the fiber tips are clean. Insert the cables until they click into the TX/RX ports. This provides the primary safety isolation between the high-voltage board and the control rack.
- Testing: After installation, perform an insulation resistance test (Megger) on the power leads before energizing the control circuit to verify that no grounding faults exist.
Q&A – Common Questions
Q1: What is the primary cause of HVD board failure? A1: The most common causes are transient overvoltages (surges) that exceed the board’s protection limits or environmental contamination (dust/moisture) that reduces the creepage distance between high-voltage components, leading to arcing.
Q2: Does the 3BHE021083R0101 require calibration? A2: The board is factory-calibrated. However, because it often works in conjunction with external high-voltage dividers or resistors, the overall measurement scaling must be verified in the control system software (e.g., Control IT or Toolbox).
Q3: Can I use this board in a Simplex system if it came from a Redundant system? A3: Yes. The board hardware is the same. The redundancy is typically managed by the arrangement of multiple boards and the logic within the AC 800PEC controller rather than a specific hardware setting on the board itself.
