Description
The ABB 3BHE021889R0101 UFC721BE101 is a high-performance Unit Control Board typically utilized within ABB’s advanced excitation systems (such as the UNITROL series) and large industrial drive systems. This module acts as a critical processing and control hub, managing real-time feedback loops, firing pulses, and system communications to ensure the stable and efficient regulation of synchronous generators and motors. Built with robust industrial components, the UFC721BE101 delivers precise control, rapid response times, and superior reliability in high-demand power generation and heavy industrial applications.
Technical Specifications & Datasheet
- Product ID: 3BHE021889R0101
- Model Designation: UFC721BE101
- Product Type: Unit Control Board / Processor Module
- System Compatibility: UNITROL Excitation Systems / MEGATROL / High-Power Drives
- Dimensions (Width x Height x Depth): 285 mm x 220 mm x 45 mm
- Weight: 1.20 kg (2.65 lbs)
- Country of Origin: Switzerland
- Communication Interfaces: Fiber optic links, Ethernet, and proprietary high-speed bus interfaces
- Operating Temperature: 0°C to +55°C
Target Application Fields
The UFC721BE101 module is predominantly deployed in heavy power generation plants, including hydro, thermal, and nuclear power stations, where it regulates synchronous generator excitation. It is also extensively used in large-scale industrial plants—such as oil and gas facilities, steel mills, marine propulsion systems, and chemical processing plants—that utilize high-power synchronous motors and specialized ABB drive architectures requiring precise control loops.

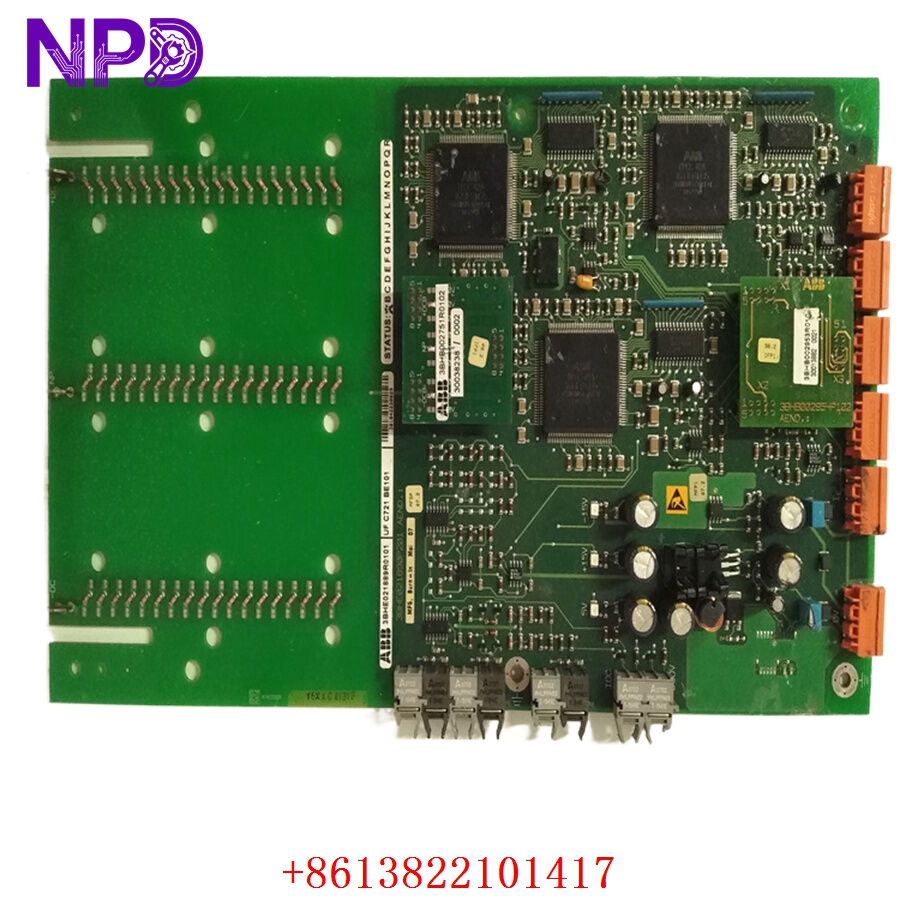

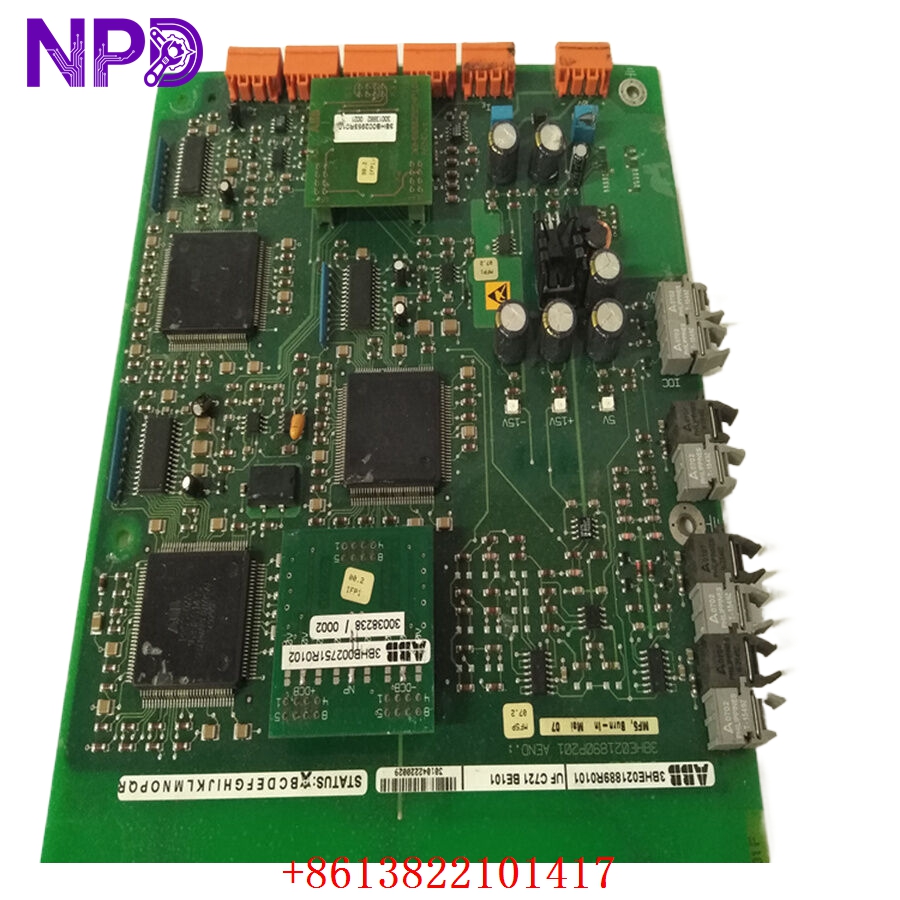

ABB 3BHE021889R0101 UFC721BE101

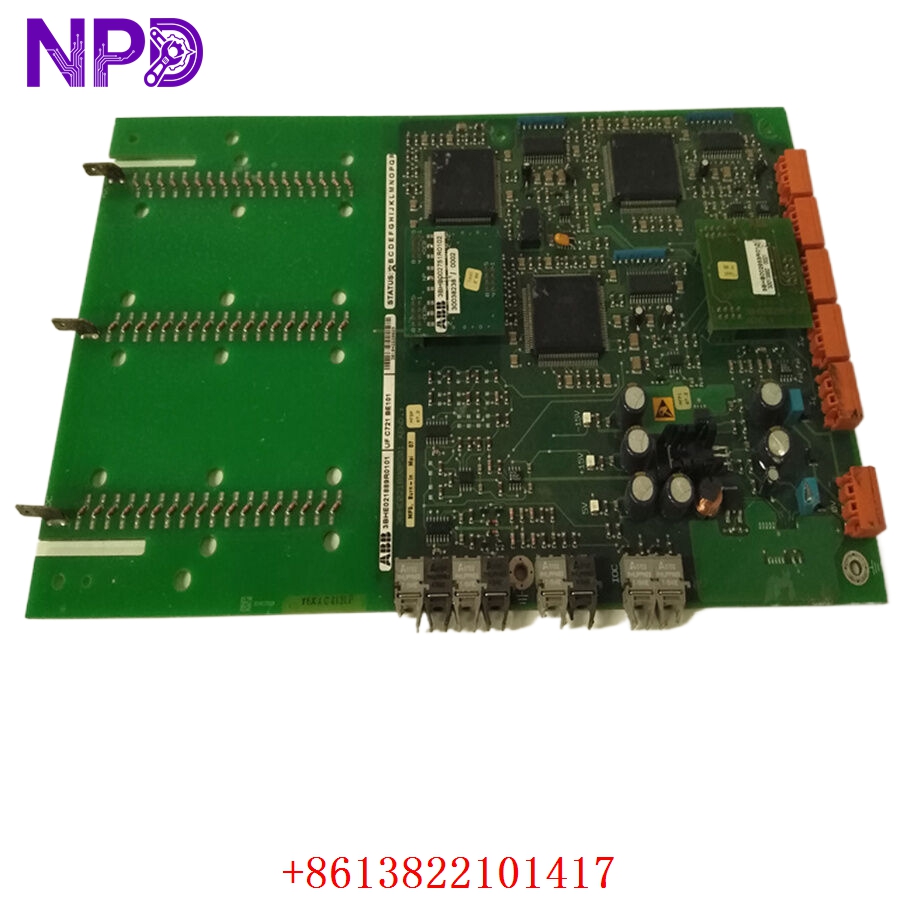

ABB 3BHE021889R0101 UFC721BE101

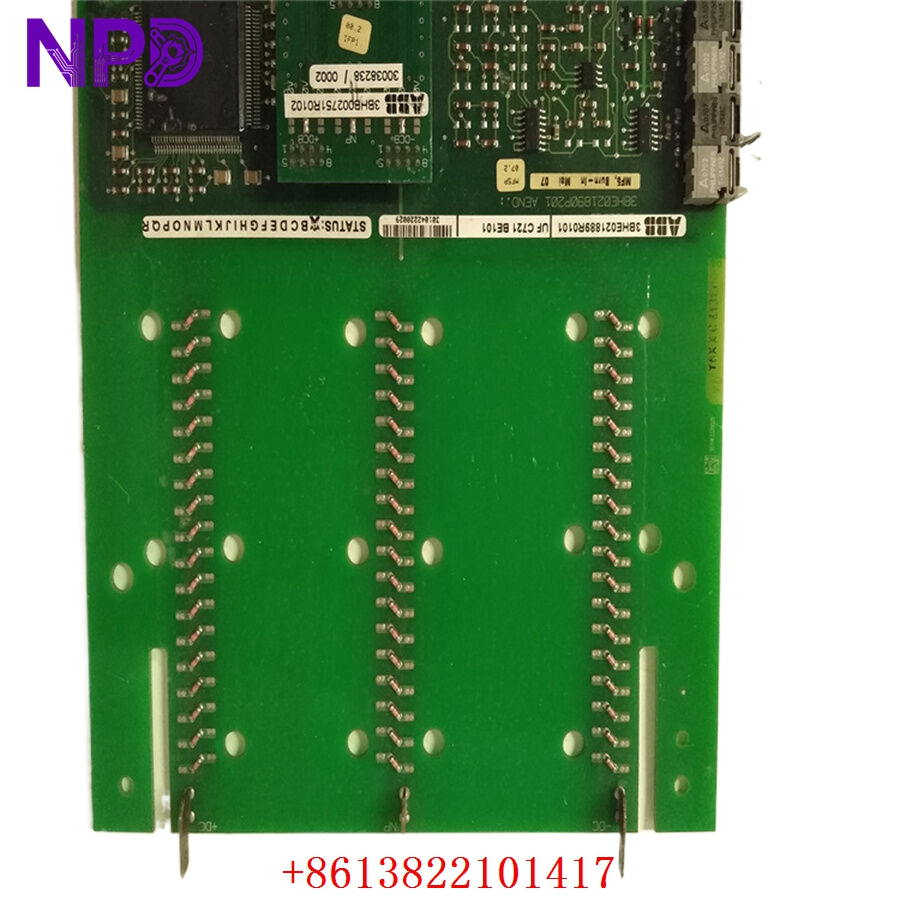

ABB 3BHE021889R0101 UFC721BE101
Installation and Usage Instructions
Installation must only be performed by qualified personnel familiar with static-sensitive electronic assemblies. Before handling the board, ensure that the control system is completely powered down and that appropriate Electrostatic Discharge (ESD) protection measures (such as a grounded wrist strap) are in place. Carefully slide the UFC721BE101 into its designated slot along the subrack guide rails until the backplane connectors are fully seated. Secure the front panel retention screws to ensure a reliable ground connection and mechanical stability. Connect all fiber optic cables and interface wiring exactly as specified in the system documentation. Once verified, power up the system and monitor the diagnostic LEDs on the front panel to confirm normal initialization and communication status.
Frequently Asked Questions
Q: What is the main function of the fiber optic ports on the front panel? A: The fiber optic ports on the ABB 3BHE021889R0101 UFC721BE101 are designed for high-speed, noise-immune communication between the control board, power semiconductor modules, and external monitoring systems, protecting the processing core from high-voltage transients.
Q: Can this module be swapped while the excitation system is actively running? A: No. Because this unit serves as the core processing and control board for the excitation loop, removing it during operation will disrupt the control signal, causing an immediate system trip. The system must be safely shut down and isolated before replacement.
Q: Are firmware updates required when replacing an older UFC721BE101 board? A: Yes, it is critical to verify that the firmware pre-loaded on the replacement board matches the exact software version utilized by your existing control system parameters to ensure full compatibility and prevent synchronization errors.
