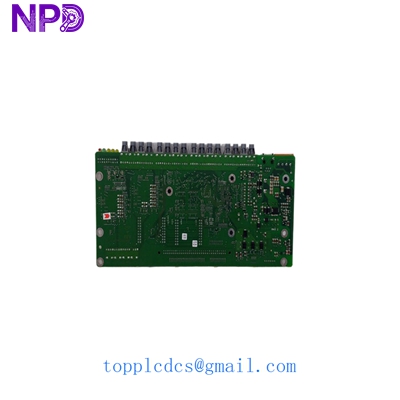

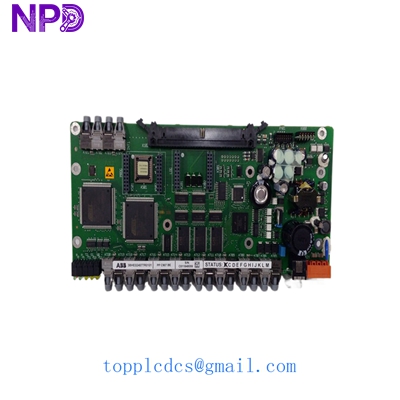

ABB 3BHE024577R0101 PPC907BE | Power Electronics Controller

Description

• Model: ABB 3BHE024577R0101 (PPC907BE)
• Brand: ABB (Switzerland)
• Series: AC 800PEC / UNITROL 6000 Series
• Core Function: High-Performance Power Electronics Control [Condition: New Surplus]
• Product Type: Processor and Control Board (PPC)
• Key Specs: High-speed DSP | Fiber Optic Communication | Redundancy Ready

ABB 3BHE024577R0101 PPC907BE

Installation & Configuration Guide

The PPC907BE is the “brain” of high-power converters and excitation systems. Handling this module requires strict adherence to power electronics safety protocols, as these controllers often interface with high-voltage hardware.

Phase 1: Preparation (Estimated: 20 mins)

⚠️ Safety Warning: Ensure the excitation system or converter is completely de-energized and grounded. Capacitors in high-power circuits can hold lethal charges for several minutes after power-off. Use a non-contact voltage tester to verify a safe state.

Tool Checklist:

• Anti-static wrist strap and conductive mat.
• Fiber optic cleaning tool (essential for 3BHE series stability).
• Precision screwdriver set.
• Current system backup (Control IT or PEC800 tool).

Phase 2: Removal of Old Module (Estimated: 10 mins)

1. Label Fiber Optics: Before unplugging, label every fiber optic cable. Swapping RX/TX or moving a link to the wrong port will cause immediate system “E-Stop” on restart.
2. Disconnect Connectors: Gently remove the 24V power plug and any local I/O headers.
3. Release Module: Loosen the top and bottom retaining screws on the front panel.
4. Extract: Pull the module straight out using the ejector handles to avoid lateral stress on the backplane Board.

Phase 3: Installation of New Module (Estimated: 15 mins)

1. Verify Hardware Revision: Ensure the new 3BHE024577R0101 matches the revision of the failed unit to ensure firmware compatibility.
2. Inspect Fiber Ports: Remove dust caps only at the moment of connection. Ensure no dust enters the transceiver.
3. Insert into Subrack: Align the board with the guide rails. Slide it in until the backplane connectors seat firmly. Tighten the front panel screws to ensure proper grounding.
4. Reconnect: Attach fiber optics and power connectors according to your labels.

Phase 4: Commissioning & Download (Estimated: 40 mins)

• Initial Power-Up: Monitor the LEDs. The “Power” LED should be green. A “Fault” LED is normal until the application software is loaded.
• Connect Software: Use the ABB PEC800 tool or equivalent via the service port.
• Load Firmware/Application: Download the system-specific parameters and logic. Do not interrupt power during the flash process.
• Functional Test: Perform a “Dry Run” test without high-voltage power to verify that the PPC907BE can communicate with all I/O and pulse-triggering boards.
• Log Parameters: Record the new module’s serial number in the plant maintenance log.

ABB 3BHE024577R0101 PPC907BE

Customer Cases & Industry Applications

Case 1: Hydroelectric Plant Excitation Recovery

Background: A hydroelectric plant in Northern Europe utilized the UNITROL 6000 excitation system. A sudden lightning strike near the plant caused a surge that damaged the communication interface of the primary PPC907BE controller.

The Problem: The generator could not synchronize with the grid. The OEM quoted a long lead time for a replacement board, threatening weeks of lost energy revenue.

The Result: The plant contacted us for a New Surplus 3BHE024577R0101. We dispatched the unit via 24-hour priority freight. Because the board was New Surplus and matched the R0101 revision, the plant engineers successfully restored the excitation logic and had the turbine back online within 48 hours of the failure.

Case 2: Steel Mill LCI Drive Maintenance

Background: A large steel mill used a MEGADRIVE-LCI for a critical fan motor. During a scheduled upgrade, a technician accidentally damaged the fiber optic header on the PPC907BE board.

The Solution: To avoid an extended shutdown, the mill needed an identical replacement board immediately. We provided a unit from our inventory along with its original QC test report.

Feedback: The Lead Electrical Engineer noted: “Finding the 3BHE series R0101 revision in stock was a lifesaver. The module was pristine, and the fiber optic communication was restored without any signal attenuation issues.”

ABB 3BHE024577R0101 PPC907BE

Frequently Asked Questions (FAQ)

Q1: Is the PPC907BE interchangeable with the PPC907BE01? A: While they belong to the same family, you must match the Part Number (3BHE024577R0101) exactly. Sub-revisions often involve hardware timing changes that can affect high-speed power electronics synchronization.

Q2: Does the board come with the application software pre-loaded? A: No. It comes with factory bootloader/firmware. You must use the ABB engineering tools to download the specific project files (Excitation logic, Drive parameters, etc.) used at your site.

Q3: What is the significance of the fiber optic ports? A: In power electronics, fiber optics provide galvanic isolation between the low-voltage control logic and the high-voltage power stages, preventing EMI (Electromagnetic Interference) from disrupting the processor.

Q4: How do I identify a “New Surplus” ABB board? A: Our New Surplus units are original ABB manufacture, never used in production. They feature clean gold-plating on the backplane, zero dust in the fiber ports, and are shipped in original or high-grade anti-static shielding.

Q5: What should I do if the “Run” LED doesn’t turn on? A: Check the 24V DC supply stability first. If the supply is good, verify the firmware version. A “Run” LED only activates once the application software has successfully initialized.
