Description
Product Overview

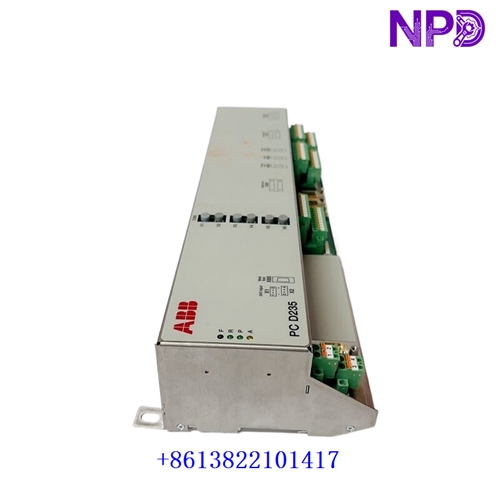

The ABB PCD235A101, part number 3BHE032025R0101, is an exciter control module associated with ABB UNITROL excitation and AC 800PEC control systems. It is used in generator excitation applications, where control electronics process system signals and support regulation of generator excitation to maintain stable terminal voltage during changing operating conditions.
The module is intended for compatible ABB excitation system configurations. Depending on the system design, its interfaces may support signal acquisition, control outputs, and communication with other control components. Verify the exact hardware revision, firmware requirements, connector arrangement, and system compatibility before installation. Do not assume that modules with similar PCD235 designations are interchangeable.
Product Datasheet
| Parameter | Details |
|---|---|
| Brand | ABB |
| Model | PCD235A101 |
| Part Number | 3BHE032025R0101 |
| Series | ABB UNITROL / AC 800PEC |
| Product Name | Exciter Control Module |
| Product Type | Excitation control and interface module |
| Application | Generator excitation and power-generation control |
| Place of Manufacture | Not independently verified |
| Product Status | Supplier-dependent; confirm new, used, or refurbished condition |
| Dimensions | Approx. 373 × 140 × 75 mm; verify against the actual unit |
| Weight | Approx. 1.46 kg; verify with supplier |
| Country of Origin | Not independently verified |
| Power Requirements | Confirm supply voltage and connection requirements using the applicable ABB documentation |
| Discontinued Status | Current lifecycle status not verified |
Recommended Related ABB Models
The following models are related to ABB excitation, power electronics, and industrial control systems. They are not guaranteed direct replacements for the PCD235A101. Confirm compatibility with the installed UNITROL or AC 800PEC system before ordering.
- PCD235B101 — Related PCD235 module designation; verify revision and functionality before substitution.
- PCD230A — Related ABB control-module designation; confirm the complete part number.
- PPD113B03 — ABB power electronics control component; verify its specific system role.
- PM866 — AC 800M controller for compatible process automation applications.
- PM864A — ABB AC 800M controller used in industrial automation systems.
- PM865 — ABB AC 800M controller model for compatible control applications.
- CI854A — PROFIBUS-DP communication interface for ABB automation systems.
- CI867 — ABB communication interface module; verify network and system compatibility.
- AI810 — S800 I/O analog input module.
- AI835 — S800 I/O analog input module for compatible signal applications.
- AO810 — S800 I/O analog output module.
- DI810 — S800 I/O digital input module.
- DO810 — S800 I/O digital output module.
- UNITROL 5000 — ABB excitation system family for generator applications.
- UNITROL 6000 — ABB excitation system platform for large generator applications.
