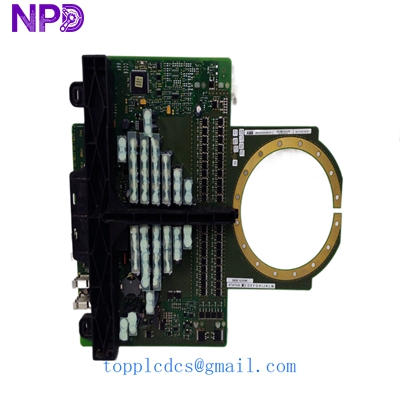

ABB 3BHE039203R0101 5SXE12-0184 | GVC736CE101 Control Board

Description

ABB 3BHE039203R0101 5SXE12-0184 GVC736CE101

Installation & Configuration Guide

The GVC736CE101 serves as the critical bridge between the central processor and the high-power switching elements (IGBTs). Given its role in pulse-width modulation (PWM), any installation error can lead to catastrophic failure of the power stack.

Phase 1: Preparation (Estimated: 25 mins)

⚠️ Safety Warning: You are working with high-power converter hardware. Ensure the DC Link capacitors are fully discharged. Use a verified high-voltage probe to check for residual voltage (>50V is lethal). Keep the new Board in its anti-static bag until the moment of insertion.

Tool Checklist:

• Anti-static wrist strap and grounded work surface.
• Fiber optic inspection microscope or cleaning pen.
• Torque screwdriver (if busbar connections are involved).
• PEC800 Diagnostic Tool software.

Phase 2: Removal of Old Module (Estimated: 10 mins)

1. Mark Fiber Paths: This board often handles sensitive timing signals. Use colored tape to mark “Master” and “Slave” fiber links.
2. Disconnect Wiring: Carefully pull the 24V power header and any feedback ribbon cables.
3. Unfasten Retainers: Unscrew the captive screws on the module faceplate.
4. Extract: Pull the module straight out using a steady motion to ensure the 5SXE12-0184 logic board clears the guide rails without snagging.

Phase 3: Installation of New Module (Estimated: 20 mins)

1. Match Revisions: Confirm the new board is the 3BHE039203R0101 (R0101). Older revisions may have different pulse timing.
2. Clean Fiber Ports: Even a microscopic speck of dust in the HFBR ports can cause “Signal Loss” or jitter in the gate pulses.
3. Insert and Lock: Slide the board into the slot. You should feel a distinct click when the backplane connector seats.
4. Reconnect: Attach fiber optics and power. Ensure the fiber cables are not bent beyond their minimum 30mm radius.

Phase 4: Commissioning & Validation (Estimated: 45 mins)

• Pre-Power Check: Verify 24V supply polarity.
• Control Power Only: Switch on control power but keep high-voltage (DC Link) isolated.
• Fiber Link Test: Check the “Fiber Status” LED. A solid light indicates a successful handshake with the AC 800PEC controller.
• Pulse Pattern Test: Using the diagnostic software, trigger a low-frequency pulse test to verify the GVC736CE101 is responding correctly to gate commands.
• High-Voltage Ramp: Slowly ramp up the DC Link voltage while monitoring the phase feedback on the HMI.

ABB 3BHE039203R0101 5SXE12-0184 GVC736CE101

Customer Cases & Industry Applications

Case 1: Offshore Wind Farm Converter Repair

Background: A 5MW offshore wind turbine using an ABB PCS 6000 converter experienced a “Phase Loss” trip. Field engineers traced the fault to a malfunctioning GVC736CE101 board that was failing to drive one of the three-phase bridges.

The Problem: Being an offshore site, every hour of downtime meant thousands of dollars in lost renewable energy subsidies. Local ABB stock was non-existent for this specific R0101 revision.

The Result: The operator contacted us for a New Surplus 3BHE039203R0101. We provided same-day dispatch via helicopter-ready express shipping. The board was installed within 48 hours of the initial fault. The turbine was synchronized back to the grid, and post-installation logs showed perfectly balanced phase currents.

Case 2: Metal Smelter Excitation System Maintenance

Background: A smelting plant’s UNITROL 6000 excitation system was showing intermittent gate drive errors. The plant’s internal audit suggested the 5SXE12-0184 logic on the GVC board was overheating due to age.

The Solution: The plant decided to replace all three phase-control boards as a preventive measure. We provided a matched set of three New Surplus boards from the same production batch.

Feedback: “We chose New Surplus because we needed the original ABB reliability without the 20-week wait. These boards were pristine, and the system stability improved immediately after the swap.”

ABB 3BHE039203R0101 5SXE12-0184 GVC736CE101

Frequently Asked Questions (FAQ)

Q1: What does the “GVC” in the model name stand for? A: GVC stands for Gate Vector Control. It is the board responsible for translating high-level vector control commands into physical gate pulses for the power semiconductors.

Q2: Can I use a 3BHE039203R0102 to replace the R0101? A: Not recommended without a firmware update and consultation. Revision changes often include hardware-level timing adjustments for specific IGBT types. It is always safest to match the 3BHE039203R0101 exactly.

Q3: Does the board require software programming? A: The GVC736CE101 contains hardware logic (5SXE12-0184) that is typically managed by the main controller. However, the main controller (like a PPC907) may need to be informed of the hardware replacement to re-sync the pulse timing.

Q4: How do I verify the fiber optic signal strength? A: Most PCS 6000 systems allow you to read the optical power level via the service tool. If the signal is below -20dBm, you likely have a dirty connector or a failing fiber cable.

Q5: Why is this board considered “Obsolete”? A: ABB has moved to newer generations of AC 800PEC hardware. However, thousands of units remain in operation globally in wind, marine, and metal industries, making these New Surplus boards essential for long-term maintenance.

Suggested Spare Parts Inventory

For operators of PCS 6000 or UNITROL 6000 systems, we recommend stocking these core parts:

1. ABB 3BHE024577R0101 – PPC907BE Controller
2. ABB 3BHE022293R0101 – CIO626 I/O Board
3. ABB 3BHE035301R0002 – UNS0881A-P,V1
4. ABB 3BHE039203R0101 – GVC736CE101
5. EMERSON VE3008 – MQ Controller
6. HONEYWELL CC-PAIH01 – Analog Input
7. TRICONEX 3721 – Analog Input
8. BENTLY NEVADA 3500/15 – Power Supply
9. YOKOGAWA AAI143-S00 – Analog Input
10. GE IC695CPU315 – RX3i Processor
