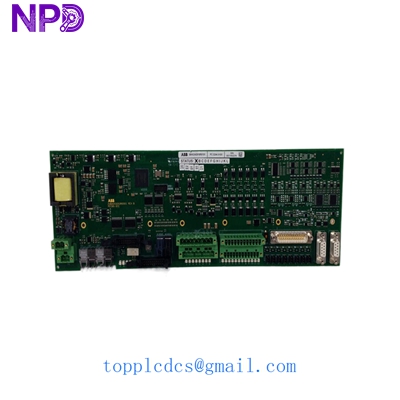

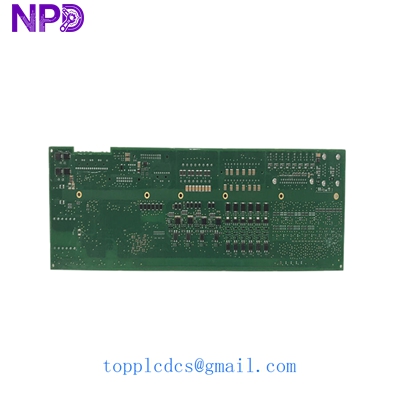

ABB 3BHE042816R0101 PCD244A101 | Pulse Transformer Board

Description

• Model: ABB 3BHE042816R0101 (PCD244A101)
• Brand: ABB (Switzerland)
• Series: UNITROL 6000 / AC 800PEC Power Electronics
• Core Function: Pulse Distribution and Gate Triggering [Condition: New Surplus]
• Product Type: Pulse Transformer and Interface Board
• Key Specs: Galvanic Isolation | 6-Pulse/12-Pulse Support | Fiber Optic Input

ABB 3BHE042816R0101 PCD244A101

Installation & Configuration Guide

The PCD244A101 is the final stage of the control chain before the high-voltage thyristors. Its primary job is to provide the “kick” needed to turn on large power semiconductors while keeping the sensitive control electronics isolated from the high-voltage power circuit.

Phase 1: Preparation (Estimated: 25 mins)

⚠️ Safety Warning: You are working in the “Heart” of the power converter. Ensure the main AC breaker is locked out and tagged out (LOTO). Verify that the DC link voltage has dissipated to < 10V. Magnetic fields around pulse transformers can be strong; keep sensitive electronics and credit cards away from the board during installation.

Tool Checklist:

• Anti-static wrist strap (essential to protect the fiber optic transceivers).
• Calibrated torque screwdriver for terminal connections.
• Fiber optic cleaning pen (HFBR series compatible).
• Digital oscilloscope (for pulse verification if required).

Phase 2: Removal of Old Module (Estimated: 10 mins)

1. Label Gate Leads: The gate (G) and cathode (K) leads to the thyristors must not be swapped. Mark them clearly (e.g., V1-G, V1-K).
2. Disconnect Fiber: Unplug the fiber optic cables. Place dust caps on both the cable and the PCD244A101 ports immediately.
3. Unmount: Remove the mounting screws. These boards are often mounted vertically near the power stack for short lead lengths.
4. Inspect: Check the old Board for signs of “tracking” or carbon deposits, which indicate high-voltage arcing.

Phase 3: Installation of New Module (Estimated: 20 mins)

1. Check Pulse Transformers: Ensure the transformers on the new 3BHE042816R0101 are not cracked or physically damaged from shipping.
2. Mount Securely: Vibration in power cabinets can loosen screws over time. Use thread-locking compound if specified by the plant manual.
3. Clean Optics: Even a single thumbprint on the fiber port will cause “misfiring” of the thyristors, leading to massive harmonic distortion or blown fuses.
4. Torque Terminals: Secure the gate/cathode wires. A loose connection here will cause “Gate Open” faults.

Phase 4: Commissioning & Pulse Test (Estimated: 45 mins)

• Continuity Check: Measure resistance between Gate and Cathode terminals to ensure no short circuits in the wiring.
• Low-Voltage Test: Power up the control rack (24V) but keep the 480V/6.6kV power isolated.
• Pulse Verification: Use the ABB diagnostic tool to “Force” a pulse. If you have an oscilloscope, you should see a sharp rising edge (typically 2-5 microseconds) at the transformer output.
• Phasing Check: Confirm that Pulse 1 corresponds to Thyristor 1. Swapping phases will cause a catastrophic short circuit upon main power-up.
• Full Power Sync: Gradually increase the excitation/power voltage while monitoring for “Misfire” alarms on the HMI.

ABB 3BHE042816R0101 PCD244A101

Customer Cases & Industry Applications

Case 1: Nuclear Power Plant Excitation Maintenance

Background: A nuclear facility used the UNITROL 6000 for its main generator excitation. During a 10-year overhaul, they found that the insulation on the old pulse transformers was beginning to degrade due to constant thermal cycling.

The Problem: The PCD244A101 is a critical safety-related component. A failure in the firing circuit could cause a sudden loss of excitation, forcing a reactor trip. The OEM lead time was quoted at over 26 weeks.

The Result: The facility procured two New Surplus 3BHE042816R0101 units from our stock. We provided the full traceability and serial number logs required for their quality records. The boards were installed during the planned outage, and the generator passed its excitation response test with zero “Jitter” in the firing angle.

Case 2: Aluminum Smelter Rectifier Repair

Background: An aluminum smelter’s 100kA rectifier experienced a “Fuse Blown” event. The cause was traced to a PCD244A101 board that was sending “Ghost Pulses” due to a faulty input logic chip.

The Solution: The smelter needed to resume production immediately to prevent the “freezing” of the aluminum pots. We shipped a New Surplus board via air-priority.

Feedback: “The R0101 revision was a perfect match. We had the rectifier back at 50% load within 12 hours of delivery and 100% load by the following shift. The quality was indistinguishable from the original factory part.”

Frequently Asked Questions (FAQ)

Q1: Can I replace a PCD231 with a PCD244A101? A: No. While they are both pulse boards, the PCD244A101 has different electrical characteristics and mounting footprints. Stick to the 3BHE042816R0101 part number for guaranteed compatibility.

Q2: Does this board require a firmware download? A: No. The PCD244A101 is a hardware-level interface board. It processes signals in real-time. All “intelligence” or software resides in the PPC907 or AC 800PEC controller upstream.

Q3: What causes these boards to fail most often? A: High-voltage surges, dust accumulation (causing arcing), and the drying out of electrolytic capacitors in the pulse-shaping circuit after 10-15 years of continuous service.

Q4: Is “New Surplus” reliable for critical power systems? A: Absolutely. Our New Surplus boards are original ABB products that have been stored in climate-controlled environments. They offer the same reliability as a new factory order but without the extreme lead times.

Q5: How do I test the fiber optic input? A: When the controller is active, you should see a visible red light (650nm) at the end of the fiber cable. CAUTION: Do not look directly into the fiber; point it at a white piece of paper to see the reflection.

Suggested Spare Parts Inventory

For Unitrol 6000 or AC 800PEC operators, these are the top 10 recommended spares:

1. ABB 3BHE024577R0101 – PPC907BE Controller
2. ABB 3BHE039203R0101 – GVC736CE101 Gate Control
3. ABB 3BHE042816R0101 – PCD244A101
4. ABB 3BHE022293R0101 – CIO626 I/O Board
5. ABB 3BHE035301R0002 – UNS0881A-P,V1
6. HONEYWELL CC-PAIH01 – Analog Input
7. EMERSON VE3008 – MQ Controller
8. TRICONEX 3721 – Analog Input
9. BENTLY NEVADA 3500/15 – Power Supply
10. GE IC695CPU315 – RX3i Processor
