Description

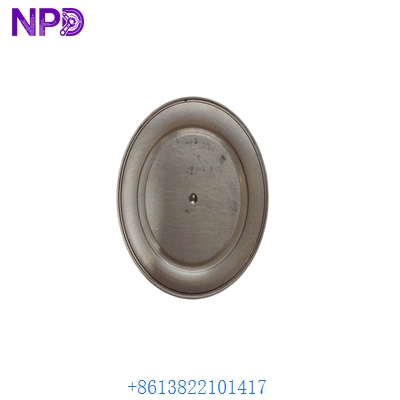

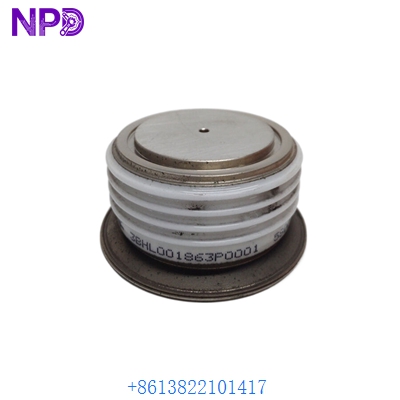

The ABB 3BHL001863P0001 5SDD1060F0001 is a high-performance welding diode designed for high-current rectification in demanding industrial power electronics. It provides exceptional thermal stability and low forward voltage drop, ensuring efficient energy conversion in heavy-duty applications.
Product Parameters
- Model: 3BHL001863P0001 / 5SDD1060F0001
- Average Forward Current (IF(AV)): Up to 10,600A
- Repetitive Peak Reverse Voltage (VRRM): 200V – 600V range
- Forward Voltage Drop (VF): Very low (typically < 1.0V at peak current)
- Junction Temperature (Tj): Up to 180°C
Product Specifications
- Package Type: Press-pack (Disc) ceramic housing
- Cooling Requirement: Double-sided water or air cooling
- Clamping Force: Optimized for high-pressure mechanical mounting
- Weight: Approximately 0.45 kg
- Construction: Rugged hermetic seal for harsh industrial environments
Application Fields
- Resistance welding equipment
- High-current DC power supplies
- Electrolytic plating and metal refining
- Industrial battery charging systems
- Medium-frequency converters
Q&A
Q: What is the benefit of the press-pack housing? A: It allows for double-sided cooling and provides superior thermal cycling capability under extreme current loads.
Q: Can this diode be used in high-frequency welding? A: Yes, it is specifically optimized for low switching losses in medium to high-frequency rectification.
Q: Does it require a specific mounting clamp? A: Yes, precise clamping force must be applied to ensure optimal electrical contact and heat dissipation.
Check technical availability for ABB 5SDD1060F0001 to optimize your power system.
