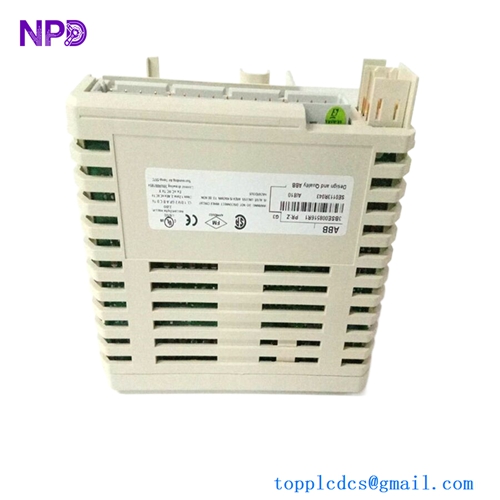

ABB 3BSE008516R1 AI810
Analog Input Module
Product Introduction
The ABB AI810 Analog Input Module (order number 3BSE008516R1) is a reliable analog input module designed for the ABB S800 I/O system. It is used to acquire analog current signals from field devices and convert them into high-accuracy digital values for process control systems.
The ABB AI810 module supports standard industrial current signals and is optimized for stable, long-term operation in demanding automation environments. With robust electrical isolation and consistent measurement performance, it is widely used in distributed control systems where precision and system availability are critical.

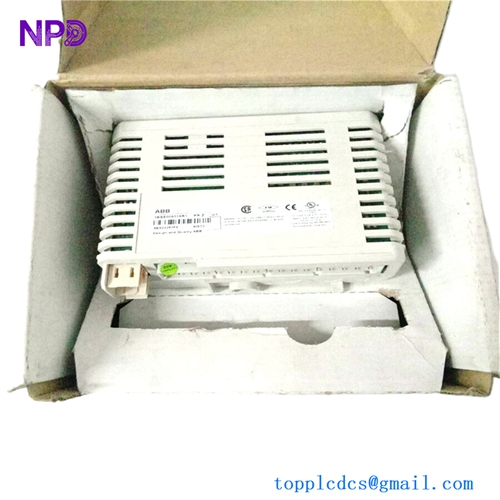

ABB 3BSE008516R1 AI810
Product Parameters
⚙️ Technical Parameters
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Module |
| Model | AI810 |
| Order Number | 3BSE008516R1 |
| Number of Channels | 8 |
| Input Signal Range | 0–20 mA / 4–20 mA |
| Signal Type | Analog current |
| Input Resolution | High-resolution A/D conversion |
| Isolation | Channel-to-system isolation |
| Power Supply | Via S800 I/O bus |
| Mounting Method | DIN rail |
| System Platform | ABB S800 I/O |
Product Datasheet (Summary)
📄 Datasheet Overview
| Item | Description |
|---|---|
| Input Configuration | 8 independent analog current inputs |
| Accuracy | Stable measurement performance |
| Protection | Built-in overcurrent and overvoltage protection |
| Diagnostics | Module and channel status monitoring |
| Operating Mode | Continuous industrial operation |
| Environmental Design | Suitable for harsh industrial conditions |

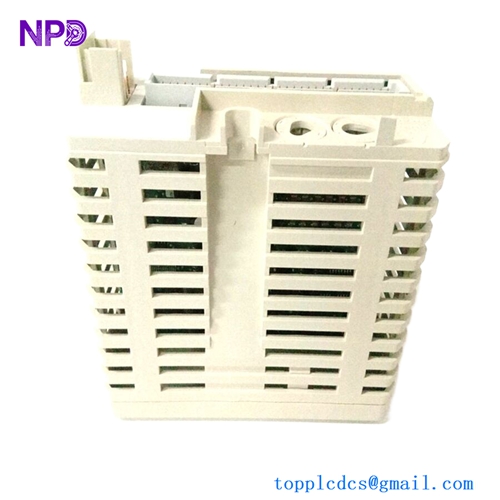

ABB 3BSE008516R1 AI810
Country of Origin
🌍 Origin:
The ABB AI810 (3BSE008516R1) is produced under ABB’s standardized manufacturing and quality management system. The module is typically manufactured in Europe, ensuring consistent quality, traceability, and compliance with industrial automation standards.
Frequently Asked Questions (Q&A)
Q1: What signal types are supported by the AI810?
A1: The AI810 supports standard industrial analog current signals, including 0–20 mA and 4–20 mA.
Q2: How many channels does the AI810 provide?
A2: The module provides 8 independent analog input channels.
Q3: Is the AI810 suitable for process control applications?
A3: Yes, it is designed for continuous process monitoring and control systems.
Q4: Does the AI810 include signal isolation?
A4: Yes, it provides electrical isolation to enhance system stability and signal reliability.
Q5: Is the AI810 compatible with the ABB S800 I/O system?
A5: Yes, it is fully compatible with the ABB S800 I/O platform.
