Description
The ABB PP826 3BSE042244R1 is a Panel 800 series operator panel designed for industrial automation and process control applications. It provides a local human-machine interface (HMI) for monitoring, operating, and configuring ABB automation systems, including System 800xA and AC 800M based control environments.
The PP826 is a compact function key panel featuring a 5.7-inch color display with graphical and text visualization capability. It combines display functions with programmable keys and LED indicators, allowing operators to view process information, alarms, equipment status, and execute control commands directly from the field.
This operator panel is commonly used in industrial plants, power generation facilities, process industries, and manufacturing systems where reliable local operation and visualization are required.

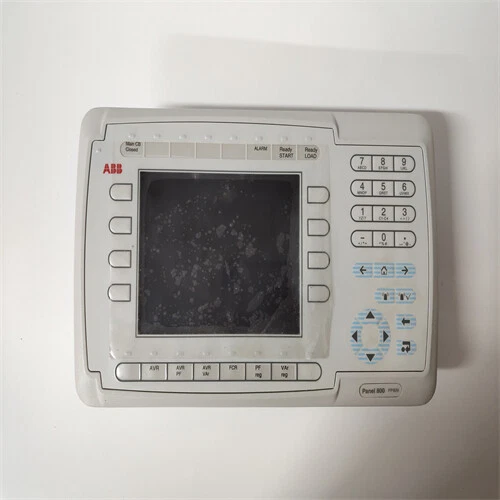

ABB PP826 3BSE042244R1
Product Specifications
| Specification | Details |
|---|---|
| Brand | ABB |
| Model | PP826 |
| Part Number | 3BSE042244R1 |
| Series | Panel 800 |
| Product Name | Function Key Control Panel / HMI Operator Panel |
| Display Type | STN Color LCD |
| Display Size | 5.7 inch |
| Display Resolution | 320 × 240 pixels |
| Display Function | Graphics and text visualization |
| Function Keys | 16 programmable function keys |
| LED Indicators | 16 dual-color LED indicators |
| Communication Interface | Ethernet / Serial communication options |
| Configuration Software | ABB Panel Builder 800 |
| Compatible Systems | ABB System 800xA, AC 800M automation systems |
| Mounting Type | Panel Mount |
| Power Supply | 24 VDC |
| Power Consumption | Approx. 0.3 A typical / 0.5 A maximum |
| Front Panel Dimensions | Approx. 275 × 168 mm |
| Mounting Cut-Out | Approx. 240 × 130 mm |
| Mounting Depth | Approx. 57 mm |
| Weight | Approx. 1.1 kg |
| Place of Manufacture / Origin | Sweden |
| Product Status | New Surplus / Original New |
| Country of Origin | Sweden |
| Discontinued | Yes (Legacy Panel 800 series) |
Key Features
⚙️ Industrial HMI Operation
Provides operators with a direct interface for process monitoring, equipment control, alarm handling, and system status display.
⚙️ Compact Panel 800 Design
The PP826 offers a space-saving installation format suitable for control cabinets and operator stations.
⚙️ Programmable Function Keys
Includes configurable keys with LED feedback for fast access to frequently used control functions.
⚙️ ABB Automation Integration
Designed for connection with ABB control systems, including AC 800M controllers and System 800xA environments.
⚙️ Reliable Industrial Visualization
Supports graphical and text-based process screens for industrial monitoring applications.
Typical Applications
• ABB System 800xA operator stations
• AC 800M PLC control systems
• Power plant automation
• Chemical and process industries
• Manufacturing production lines
• Water treatment systems
• Industrial machine control panels
• DCS local operation stations
Frequently Asked Questions
❓ Q: What is ABB PP826 3BSE042244R1 used for?
A: It is an industrial HMI operator panel used for process monitoring, visualization, and operator control in ABB automation systems.
❓ Q: Is PP826 part of the ABB Panel 800 series?
A: Yes. PP826 belongs to ABB Panel 800 operator panels designed for industrial automation applications.
❓ Q: What type of display does the PP826 have?
A: The PP826 features a 5.7-inch color display with 320 × 240 pixel resolution for graphics and text visualization.
❓ Q: Does PP826 support touch operation?
A: The PP826 is a function key panel version, using programmable keys and display interaction rather than a touch-only interface.
❓ Q: Which software is used to configure this panel?
A: ABB Panel Builder 800 is used for creating and configuring operator panel applications.
❓ Q: Can PP826 replace another ABB HMI panel?
A: Replacement compatibility depends on the existing Panel 800 model, application project, communication settings, and mechanical installation requirements.
