Description
🔹 Product Introduction

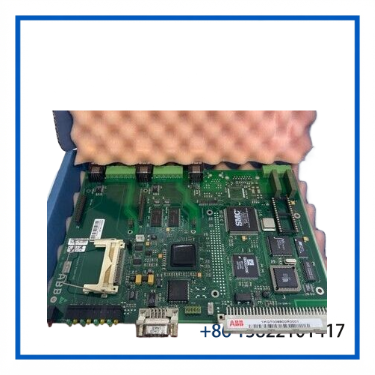

The ABB 560CMU80R1 with part number 1KGT008800R0001 is a communication unit for the ABB RTU560 remote terminal system. It provides the central communication functions between the RTU560 system, serial communication devices, and connected field equipment. ABB documentation identifies the 560CMU80 as a 6HE Euro-card format module occupying two slots, with RS232/RS485 serial interfaces and a removable CompactFlash interface.
The R0001 version is the non-Ethernet configuration; ABB documentation distinguishes it from 560CMU80R0002, which adds a 10BaseT Ethernet interface. This makes the exact suffix important when replacing an existing RTU560 communication unit.
🔗 Product Keyword: ABB 560CMU80R1 1KGT008800R0001 Communication Unit
560CMU80R1 1KGT008800R0001
📋 Product Datasheet
| Parameter | Value |
|---|---|
| 🏷️ Brand | ABB |
| 🔢 Model | 560CMU80R1 |
| 🆔 Part Number | 1KGT008800R0001 |
| 📚 Series | RTU560 |
| ⚙️ Product Name | Communication Unit |
| 🌍 Place of Origin | Germany |
| 📦 Product Status | New |
| 📐 Dimensions | Approx. 233.4 × 160 mm PCB format |
| ⚖️ Weight | Approx. 0.4 kg |
| ⚡ Power | 5 VDC / approx. 650 mA |
🛠️ Key Features
- 🔌 RS232C and RS485 communication interfaces
- 📡 CP1, CP2 and CPA communication connections
- 💾 Removable CompactFlash memory interface
- ⚙️ 80C251 serial-line controller architecture
- 🧩 6HE Euro-card format
- 📦 Occupies two RTU560 rack slots
- 🏭 Designed for ABB RTU560 remote terminal systems
- 🔧 Suitable for utility automation, telemetry and SCADA applications
- 🔄 Supports configuration through ABB RTU engineering tools
- 🛠️ Appropriate for maintenance and replacement of compatible RTU560 installations
❓ FAQ
Q: What is the ABB 560CMU80R1?
A: It is a communication unit used in ABB RTU560 remote terminal systems for serial communication and system-level data exchange.
Q: What is the complete part number?
A: The supplied model is 560CMU80R1, with ABB part number 1KGT008800R0001. ABB’s ordering information identifies this as the R0001 version.
Q: Does the R0001 version have Ethernet?
A: ABB documentation identifies the 10BaseT Ethernet interface with the R0002 version. Therefore, the R0001 version should not be assumed to have the Ethernet interface.
Q: What should be checked before replacement?
A: Confirm the complete 560CMU80R1 / 1KGT008800R0001 designation, interface configuration, firmware compatibility, rack position, and RTU560 system configuration before installation.
