Description

The ABB 5SHX06F6004, identified by the assembly part number 3BHB003387R0101, is a high-power Integrated Gate Commutated Thyristor (IGCT) module. This device is a critical semiconductor component used in high-power converters, medium-voltage drives (MVD), and static var compensators. The unit incorporates a specialized gate-driver circuit board, often associated with sub-part numbers 5SXE05-0151 and 3BHB003151P104, which provides the high-current pulses necessary to achieve rapid switching of the power semiconductor.

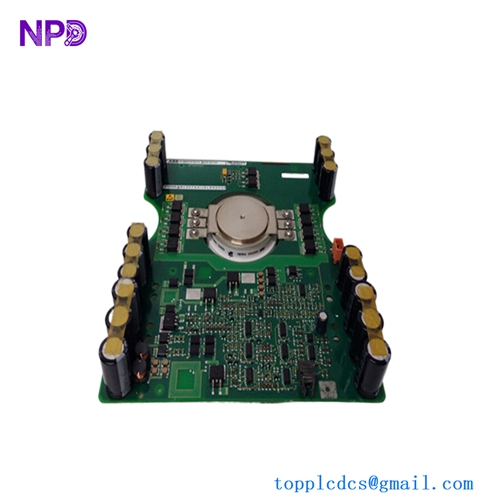

ABB 5SHX06F6004 3BHB003387R0101 5SXE05-0151 3BHB003151P104

Technical Specifications (Datasheet Summary)

The 5SHX06F6004 is designed for high-voltage, high-current switching applications where efficiency and thermal reliability are paramount.

Key Functional Features

• Integrated Gate Unit: The 5SXE05-0151 gate driver is mounted directly to the semiconductor. This minimizes inductance between the driver and the gate, allowing for extremely fast turn-off times and improved safe operating areas (SOA).
• Press-Pack Technology: The module uses a press-pack housing that ensures high reliability under thermal cycling. The lack of a wire-bonded internal structure reduces the risk of fatigue-related failures.
• Low On-State Losses: As a thyristor-based device, the IGCT offers lower conduction losses compared to equivalent IGBTs, making it ideal for high-efficiency utility-scale power conversion.
• Fiber Optic Control: The gate unit is typically triggered via fiber optic interfaces to provide total galvanic isolation between the high-power circuit and the control electronics.

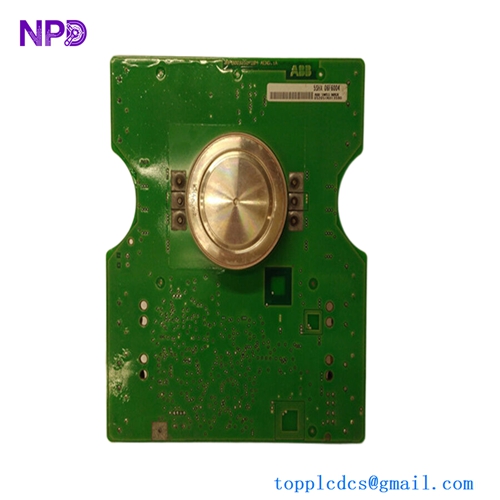

ABB 5SHX06F6004 3BHB003387R0101 5SXE05-0151 3BHB003151P104

Application Areas

The 5SHX06F6004 is a cornerstone of heavy-duty power electronics:

• Medium Voltage Drives (MVD): Used in ABB ACS6000 and similar series drives for controlling large motors in mining, water pumping, and marine propulsion.
• Wind Power Converters: Converting erratic wind energy into stable grid-frequency AC power.
• Static Var Compensators (SVC): Managing reactive power and stabilizing voltage on national transmission grids.
• Railway Traction Converters: Providing power to high-speed locomotives and urban rail systems.

Country of Origin

The ABB 5SHX06F6004 is manufactured in Switzerland. ABB’s Power Grids division (now Hitachi Energy) operates specialized semiconductor fabrication facilities in Lenzburg, Switzerland, where high-power IGCTs and IGBTs are designed and tested.

Installation and Maintenance

Mechanical Handling

• Clamping Force: As a press-pack device, the 5SHX06F6004 requires a specific mechanical clamping force (typically tens of kilonewtons) to ensure proper electrical and thermal contact with the heatsink.
• Surface Preparation: Heatsink surfaces must be machined to a high flatness and treated with a thin layer of thermal compound to prevent localized hot spots.

Electrical Interfacing

• Power Supply: The integrated gate unit (3BHB003151P104) requires a stable 24V DC auxiliary power supply, usually delivered through a specialized low-inductance connector.
• Fiber Optics: Ensure the fiber optic cables are clean and not bent beyond their minimum radius to avoid signal attenuation and false triggering.

Recommended Related ABB Models

For maintenance and design of systems utilizing the 5SHX series, the following related components and modules are frequently required:

• 5SHX08F6002: A related IGCT variant with different current handling specifications.
• 3BHB003154R0101: Common auxiliary power supply units for IGCT gate drivers.
• ACS6000 Spare Modules: Various phase modules and DC-link components used in the same drive family.
• 5SXE05-0155: Alternative gate unit revisions used in later-generation IGCT modules.
