Product Core Brief
· Model: ABB 5SHX08F4502 (Assembly: 3BHB003387R0101 / 5SXE05-0151 / GVC703AE01) · Brand: ABB (Switzerland) · Series: High-Power Semiconductor / IGCT Gate Driver Series · Core Function: Integrated Gate-Commutated Thyristor (IGCT) for high-power inverter control · Product Type: Gate Phase Module / Power Semiconductor Assembly · Key Specs: 4,500 V Blocking Voltage Integrated Gate Driver Fiber Optic Interface
Key Technical Specifications
- Peak Off-State Voltage: 4,500 V
- Controllable Turn-Off Current: 800 A – 1,200 A (typical for this frame)
- Gate Drive Supply: 24 V DC (via dedicated power interface)
- Control Interface: Fiber Optic (HFBR-series connectors)
- Cooling: Press-pack design requiring specific clamping force
- Mounting Type: Integrated assembly with GVC703AE01 Gate Unit
- Operating Temperature: -40 °C to +125 °C (Junction temperature)
- Storage Temperature: -40 °C to +70 °C

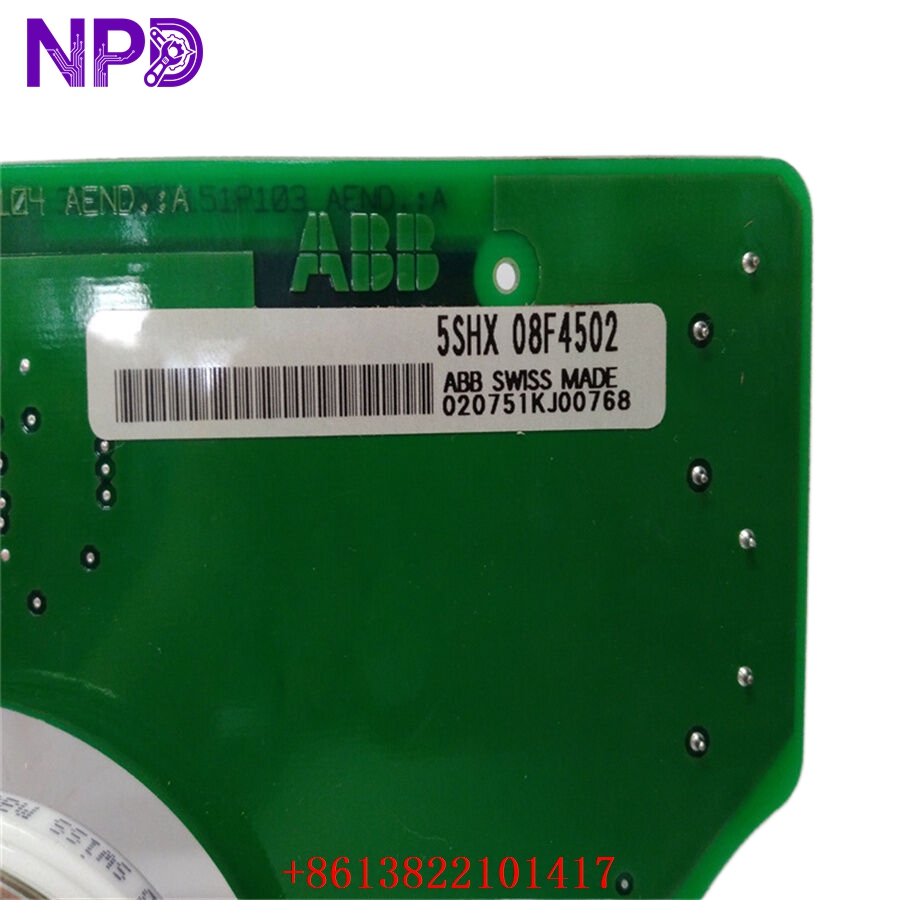

ABB 5SHX08F4502 3BHB003387R0101 5SXE05-0151 GVC703AE01

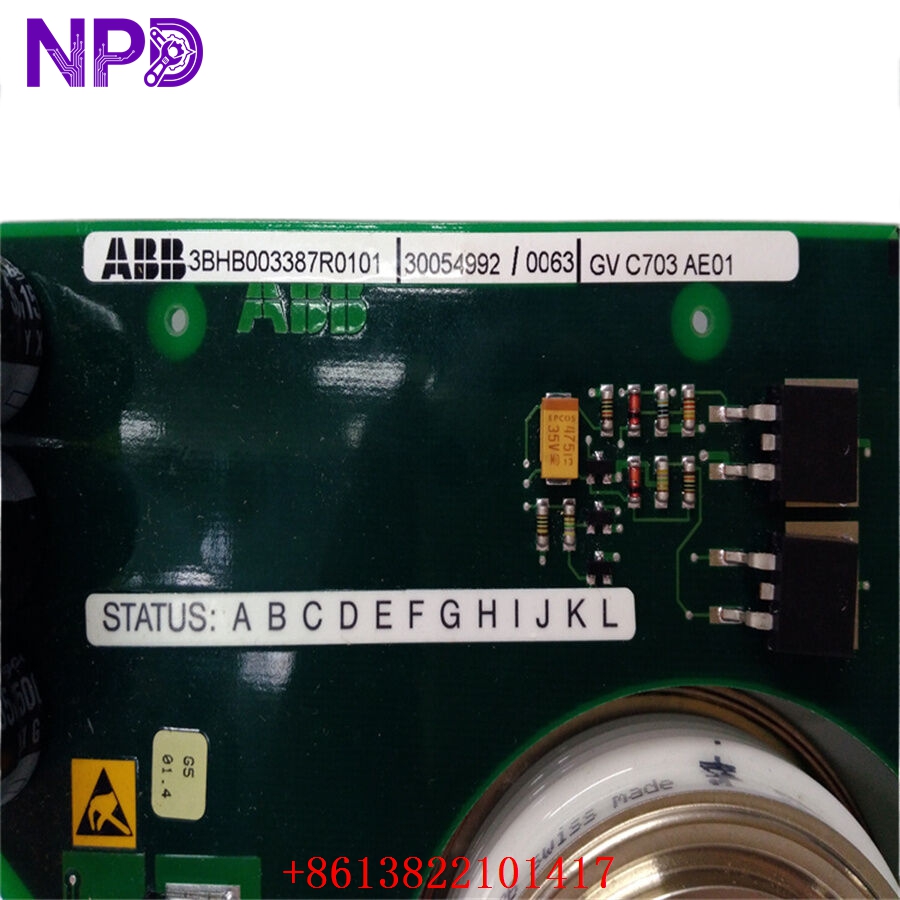

ABB 5SHX08F4502 3BHB003387R0101 5SXE05-0151 GVC703AE01

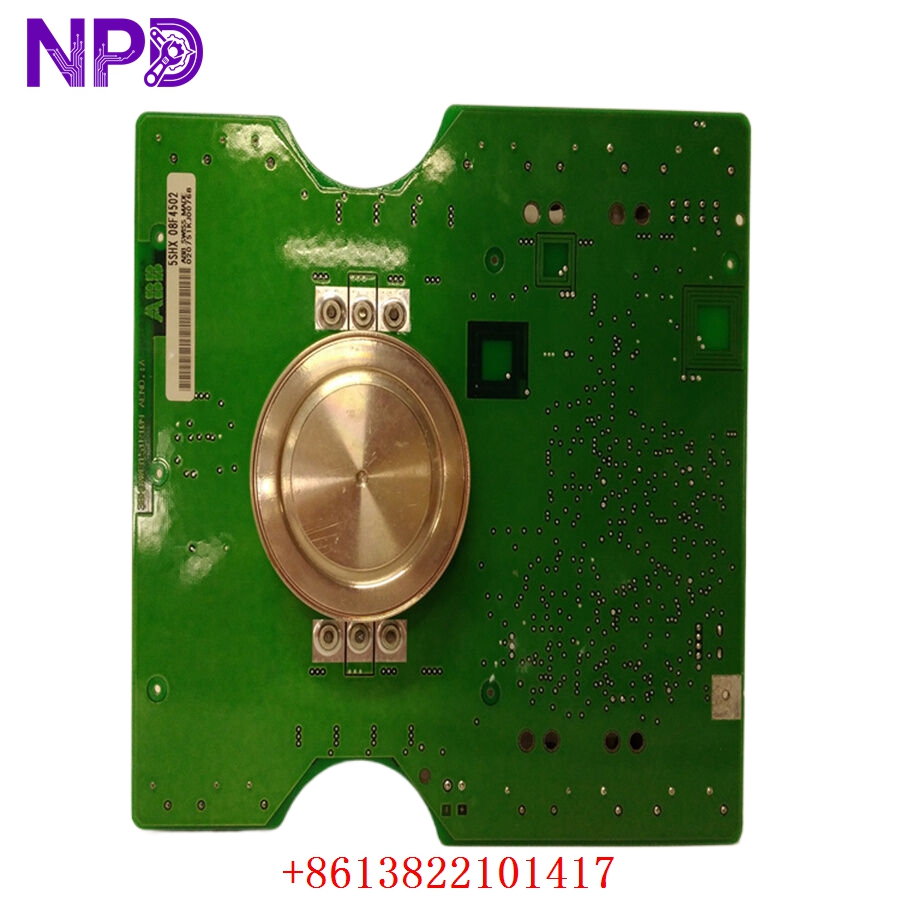

ABB 5SHX08F4502 3BHB003387R0101 5SXE05-0151 GVC703AE01
ABB 5SHX08F4502 3BHB003387R0101 5SXE05-0151 GVC703AE01
Application Scenarios & Pain Points
In high-power industrial drives (like the ACS6000 or MEGADRIVE-LCI), these IGCT modules are the “heart” of the power conversion process. When one of these fails, it’s rarely a quiet event. Usually, the drive trips on an overcurrent or gate failure, and your process—whether it’s a massive water pump for a city or a rolling mill in a steel plant—grinds to a halt. The real headache? These components are often long-lead items. If you don’t have a spare on the shelf, you’re looking at weeks of downtime while the OEM navigates supply chain backlogs.
Typical Application Scenarios:
- Metals & Mining – Rolling Mills
Used in main drive inverters to manage the extreme torque required for steel processing. High reliability is non-negotiable here.
- Oil & Gas – Large Compressor Drives
Powering VFDs (Variable Frequency Drives) for massive gas compressors where any ignition or failure risks significant safety and financial consequences.
- Marine – Propulsion Systems
Onboard LNG carriers or cruise ships, these modules manage the propulsion power, requiring components that can withstand vibration and marine environments.
- Power Generation – Static Frequency Converters (SFC)
Used for starting large gas turbines or interconnecting grids with different frequencies.
Case Study: The “Midnight Trip” at a District Heating Plant
Background: A municipal heating plant in Northern Europe utilized an ABB ACS series drive to control a 5 MW pump motor. During a peak winter load in 2024, the drive tripped.
Problem: The fault code pointed to a “Gate Unit Failure” on Phase U. The resident technician found the GVC703AE01 board on the 5SHX08F4502 module had suffered a component failure due to aged capacitors. The OEM quoted a 10-week delivery for a replacement assembly.
Solution: The plant manager sourced a 3BHB003387R0101 module from our surplus stock. We provided the individual test report showing the fiber optic trigger response and leakage current levels. The module was air-freighted and arrived in 72 hours.
Result:
- Recovery: The drive was back online within 4 days of the failure.
- Savings: Avoided over $200,000 in emergency heating bypass costs and potential pipe freeze-ups.
Compatible Replacement Models
Finding the exact match for these power modules is critical because of the physical dimensions and gate drive timing.
| Original Model | Replacement / Alternative | Compatibility | Notes |
| 5SHX08F4502 | 5SHX08F4510 | ⚠️ Software Compatible | Higher current rating; check gate drive timing parameters in firmware. |
| 3BHB003387R0101 | 3BHB003387R0110 | ✅ Direct Replacement | Minor revision change, fully interchangeable in most ACS6000 frames. |
| GVC703AE01 | GVC703AE02 | ✅ Direct Replacement | Updated gate driver board; improved noise immunity. |
Troubleshooting Quick Reference
| Symptom | Likely Cause | Spare Relevance | Quick Check | Action |
| “Gate Unit Fault” on Drive HMI | Failed GVC703AE01 board | ✅ High | Check 24V power to the gate unit; check fiber optic cables for kinks/breaks. | If fiber/power is OK, replace the module assembly. |
| Overcurrent (OC) Trip at Start | Shorted IGCT semiconductor | ✅ High | Use a multimeter (Diode mode) to check for a short between Anode and Cathode. | Must replace. Check snubber circuit before installing new module. |
| Drive trips on “Supply Phase Loss” | Input side issue | ❌ Low | Check input breakers and SCRs/Diodes on the rectifier side. | Issue is likely not this IGCT module. |
| Intermittent “Fiber Optic Link Error” | Dirty connectors / Aging LED | ⚠️ Medium | Clean fiber tips with isopropyl alcohol. Swap fiber cables to see if fault moves. | If fault stays with the module, the GVC driver is failing. |
❗ Old Engineer’s Tip: When you pull the old 5SHX08F4502 out, look at the thermal paste pattern. If it’s uneven, your clamping pressure was off, which likely caused the failure. Also, always replace the fiber optic cables if they show any yellowing or brittleness—it’s a 50 part that can save a 5,000 module.
Important Warning: These modules are extremely sensitive to Electrostatic Discharge (ESD). I’ve seen a guy blow a gate driver just by pointing at it without a wrist strap in a dry room. Use a grounded mat and strap, or you’re just throwing money away.
If you’re stuck looking at a “Fault 14” or “Gate Unit 1 Failure” and need to confirm if this is the right part, just send me a photo of your drive’s nameplate and the failed module’s sticker. I’ll verify the revision compatibility for you.
