Description

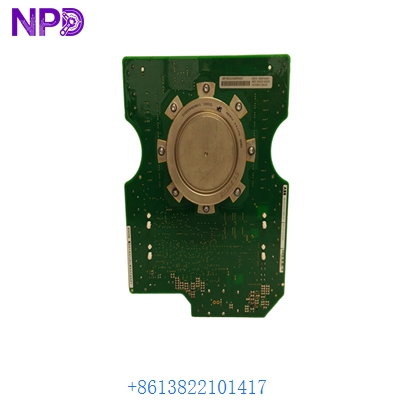

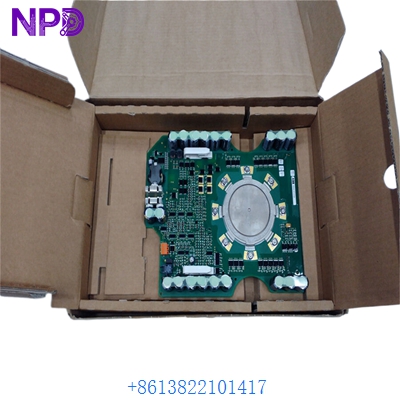

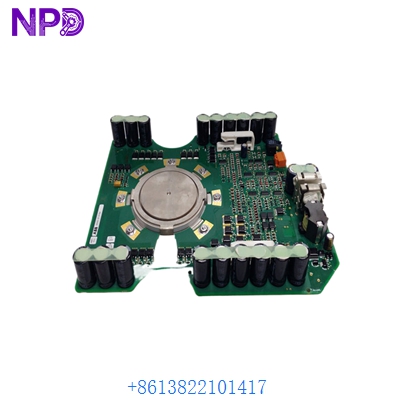

The ABB 5SHX1060H0003 (comprising 3BHB020538R0001, 3BHE024415R0101, and GVC714A101) is an integrated high-power semiconductor assembly. It combines an asymmetric Integrated Gate-Commutated Thyristor (IGCT) with a high-precision gate driver unit, designed for demanding medium-voltage power conversion tasks.
Technical Parameters
- Model: 5SHX1060H0003
- Associated Parts: 3BHB020538R0001 (Gate Driver), 3BHE024415R0101 (Thyristor Unit)
- Configuration: Asymmetric IGCT with integrated electronics
- Voltage Rating: 4500V – 6500V class (typical for series)
- Current Rating: High-current switching capability for MV drives
Product Specifications
- Control Interface: GVC714A101 Fiber Optic communication
- Housing: Press-pack design for efficient thermal management
- Weight: 5.5 kg (total assembly)
- Insulation: High-voltage isolation via integrated gate unit shielding
Application Fields
- Medium Voltage AC Drives (ACS6000 series)
- Static Frequency Converters (SFC)
- Flexible AC Transmission Systems (FACTS)
- Large-scale Wind Turbine Converters
Origin & Operating Requirements
- Origin: Switzerland (ABB Semiconductors)
- Clamping Force: Requires precise mounting force (kN) in a stack assembly
- Cooling: Must be used with high-efficiency water-cooled or air-cooled heatsinks
- Handling: Sensitive electronic components; require specialized ESD and mechanical tools for installation
Q&A
- Q: Can the gate driver be replaced independently of the thyristor?
- A: While physically possible, they are often calibrated together as a single unit to ensure timing precision.
- Q: What is the function of the GVC714A101?
- A: It acts as the signal interface board, translating optical control signals into gate-level electrical pulses.
- Q: Does this unit support parallel connection?
- A: Yes, provided the drive system architecture supports synchronized gate firing for load sharing.
