Description

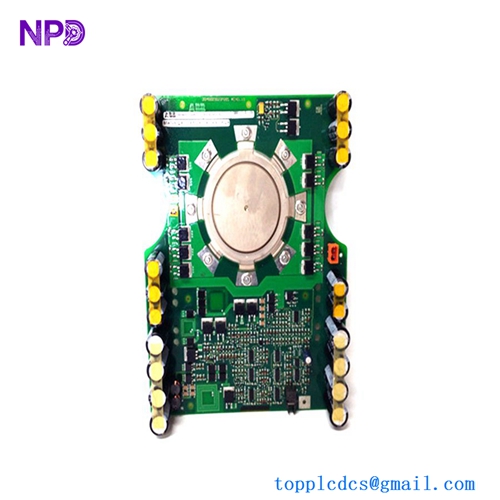

The 5SHX10H6004 (3BHB003230R0101) is a high-power semiconductor assembly, specifically an Integrated Gate Commutated Thyristor (IGCT). It is a critical power-switching component used in ABB’s medium-voltage drives (such as the ACS6000), Static Var Compensators (SVC), and high-power traction converters. This unit combines a high-voltage power semiconductor with an integrated gate unit (3BHB003023P201) to ensure ultra-fast and reliable switching performance.
ABB 5SHX10H6004 3BHB003230R0101 5SXE05-0152 3BHB003023P201
Product Technical Description
The IGCT is an evolution of the GTO (Gate Turn-Off) thyristor. By integrating the gate drive circuit directly onto the semiconductor housing, the device achieves very low inductance. This allows the device to be turned off much faster than a standard GTO, enabling higher switching frequencies and reducing the size of snubbers or eliminating them entirely.
- Integrated Gate Unit: The board 3BHB003023P201 (5SXE05-0152) is the high-speed drive electronics mounted on the device. It receives optical signals and converts them into the high-current pulses needed to trigger the semiconductor.
- Low Loss: Designed for high-efficiency power conversion in the megawatt range.
- Hermetic Press-Pack: The semiconductor is housed in a ceramic press-pack disk, designed to be clamped under high pressure for optimal thermal and electrical contact.
Product Datasheet (Parameters)
| Parameter | Specification |
| Product ID | 3BHB003230R0101 |
| Model Type | 5SHX 10H6004 |
| Gate Unit Part No. | 3BHB003023P201 (5SXE05-0152) |
| Max. Repetitive Peak Off-state Voltage (VDRM) | 6000 V |
| Max. Turn-off Current (ITGQM) | 1000 A |
| Max. RMS On-state Current (IT(RMS)) | Approx. 550 – 650 A (depending on cooling) |
| Control Interface | Fiber-optic (Optical Input/Output) |
| Gate Unit Supply Voltage | 28V – 30V DC |
| Storage Temperature | -40°C to +70°C |
| Country of Origin | Switzerland |
Technical Characteristics
- Optical Control: The use of fiber optics for signal transmission ensures total galvanic isolation between the high-voltage power circuit and the control system.
- Fast Switching: The “Commutated” nature of the device allows for hard-switching performance similar to an IGBT but with the high-current capability of a thyristor.
- Thermal Management: Requires precise mechanical clamping (press-pack) within a heatsink assembly to manage the significant heat generated during operation.
Common Questions & Answers (Q&A)
Q: Can I replace the gate unit board (3BHB003023P201) separately? A: While the board is technically a separate part, it is factory-matched to the semiconductor disk. In most high-reliability industrial applications, the entire assembly (5SHX10H6004) is replaced as a single unit to ensure timing precision and insulation integrity.
Q: What is the significance of the clamping force? A: Press-pack devices rely on mechanical pressure for electrical conductivity and heat dissipation. Incorrect clamping force (too high or too low) can lead to immediate device failure or overheating.
Q: Why are there two fiber optic ports on the gate unit? A: One port is the Input for the firing pulse signal. The second port is the Feedback (Status) signal, which tells the controller that the IGCT has successfully switched or if a local fault (like supply voltage loss) has occurred.
Q: Does this device require a snubber circuit? A: The 5SHX series is designed for “snubberless” operation in many configurations, though a small di/dt limiter is usually still required in the phase leg.
Similar Model Recommendations (8 Units)
- 5SHX08H6004: A lower current version (800A turn-off) in the same voltage class.
- 5SHX14H6004: A higher current version within the same 6000V family.
- 5SHY35L4510: An asymmetric IGCT used in different drive topologies.
- 3BHB003230R0102: A variation of the 5SHX10H6004 with updated gate unit revisions.
- 5SXE05-0151: An alternative gate unit board used for different semiconductor ratings.
- 3BHB013088R0001: A common power supply module used to provide the 28V DC to these gate units.
- 5SHX26L4520: A 4500V high-current IGCT used in ACS6000 propulsion drives.
- 3BHB003154R0101: A specialized gate driver interface board for medium voltage applications.
