Description
| Feature | Specification |
| Manufacturer | ABB (Power Grids / Discrete Automation) |
| Part Number | 5SHX1445H0001 |
| Model Code | 3BHL00391P0101 / 3BHB003230R0101 |
| Control Unit | 5SXE05-0152 |
| Device Type | Integrated Gate-Commutated Thyristor (IGCT) |
| Voltage Rating | 4500V (4.5kV) |
| Current Rating | 1400A – 1500A (Application Dependent) |
| Switching Frequency | Up to 1 kHz (Typical for IGCT) |
| Gate Unit Interface | Fiber Optic Triggering |
| Cooling Method | Press-pack (Double-sided Liquid or Air) |
| Application | Medium Voltage Drives (MVD), Wind Power, Rail Traction |

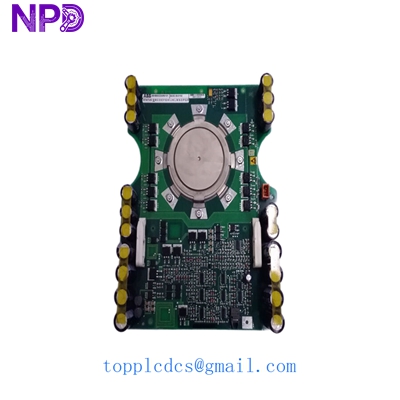

ABB 5SHX1445H0001 3BHL00391P0101 3BHB003230R0101 5SXE05-0152

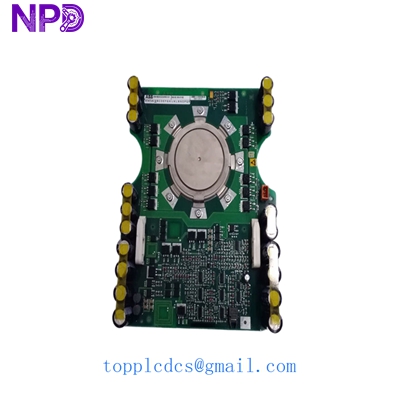

ABB 5SHX1445H0001 3BHL00391P0101 3BHB003230R0101 5SXE05-0152
ABB 5SHX1445H0001 3BHL00391P0101 3BHB003230R0101 5SXE05-0152
The ABB 5SHX1445H0001 is a high-power Integrated Gate-Commutated Thyristor (IGCT) assembly designed for the most demanding industrial power conversion applications. Combining a high-speed gate unit (5SXE05-0152) with a robust thyristor wafer, this component provides the efficiency of a GTO with the fast switching performance of an IGBT. It is a critical replacement part for ABB ACS series drives and static var compensators, ensuring precise high-voltage switching and thermal stability in heavy-duty utility and marine propulsion systems.
