Description

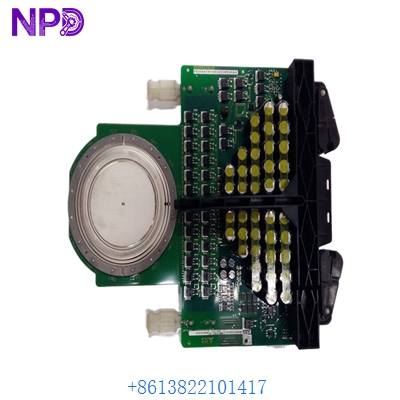

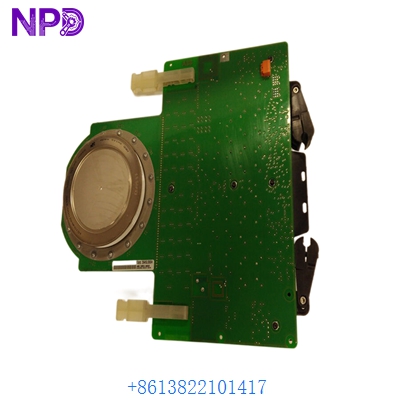

The 5SHX2645L0004 is an Integrated Gate Commutated Thyristor (IGCT) module combined with the 3BHB003154R0101 gate unit, specifically engineered for high-power industrial conversion and medium voltage drive systems requiring rapid switching and extreme reliability.
Technical Parameters
- Component Type: IGCT with integrated gate drive
- Gate Unit Model: 3BHB003154R0101 / 5SXE03-0141
- Voltage Rating: 4500V Peak repetitive off-state voltage
- Current Rating: 2100A Maximum turn-off current
- Control Interface: Fiber optic triggering (3BHB003149P104)
Dimensions & Weight
- Overall Diameter: 147 mm
- Total Height: 31 mm (press-pack unit)
- Net Weight: 3.1 kg
- Clamping Pressure: 36 kN to 44 kN (nominal 40 kN)
Environmental Certifications
- Compliance: RoHS 2011/65/EU and 2015/863/EU
- WEEE Category: Category 9 (Monitoring and control instruments)
- Storage Temperature: -40°C to +70°C
- Operating Humidity: 5% to 95% non-condensing
Application Fields
- Medium voltage frequency converters (ACS series)
- Static synchronous compensators (STATCOM)
- Traction power supply for rail networks
- High-voltage DC (HVDC) transmission equipment
Product Q&A
- Q: Does the 3BHB003149P104 interface support dual-channel fiber?
- A: Yes, it typically uses one channel for firing commands and one for feedback status.
- Q: Is the 5SXE03-0141 compatible with older ACS800 units?
- A: Compatibility depends on the control board revision; it is primarily used in newer ACS series architectures.
- Q: Can this module be air-cooled?
- A: It is designed for press-pack mounting between water-cooled or high-efficiency air-cooled heatsinks under high pressure.
