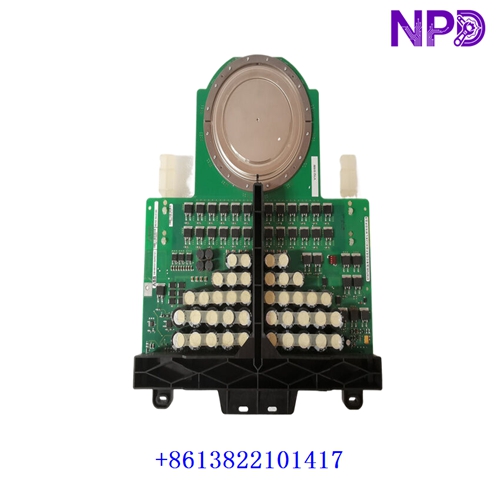

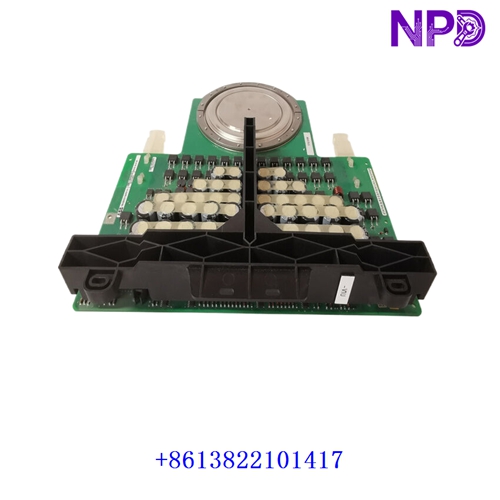

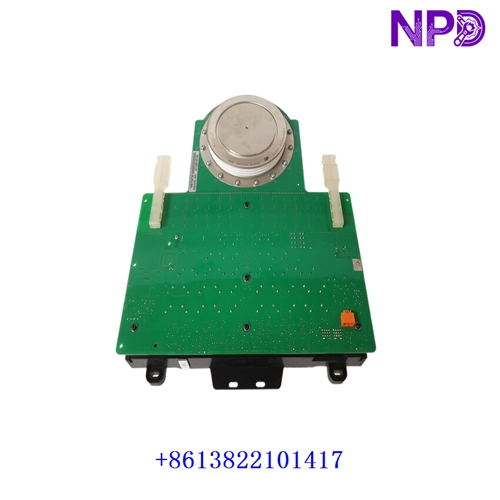

The ABB 5SHX2645L0004, with order number 3BHL000389P0104, is an IGCT RC (Integrated Gate-Commutated Thyristor, Reverse Conducting) power semiconductor component designed for high-power electrical conversion applications. It is used in compatible industrial power converters and medium-voltage drive systems to support high-power switching and energy conversion. The associated reference numbers include 3BHB003154R0101 and 5SXE05-0156. Before replacement, verify the complete part number, gate-drive configuration, mounting arrangement, cooling requirements, and compatibility with the original ABB equipment.
5SHX2645L0004 3BHL000389P0104
📋 Product Parameters
Product Datasheet
🏷️ Brand: ABB
🔢 Model: 5SHX2645L0004
🆔 Order Number: 3BHL000389P0104
📚 Series: ABB IGCT Power Semiconductor Series
⚡ Product Name: IGCT RC Power Semiconductor
🌍 Place of Manufacture: Verify against the unit label and order documentation
📦 Product Status: New, open-box, or used — confirm actual inventory condition
📐 Dimensions: Exact dimensions require confirmation against the applicable mechanical drawing
⚖️ Net Weight: Approximately 2.6 kg
🏭 Country of Origin: Confirm for the specific unit and shipment
🔌 Power Requirements: High-power semiconductor; operating voltage, gate-drive requirements, and cooling configuration depend on the equipment design
🛠️ Discontinued: Current lifecycle and replacement status require confirmation
📑 Customs Tariff Number: 85413000
🔧 Recommended ABB Models
The following 15 ABB models are related to power semiconductors, converters, and industrial drive systems. They are not guaranteed direct replacements; verify technical compatibility before ordering.
- 5SHX2645L0002 — Related IGCT semiconductor model for comparison with the target part.
- 5SHY3545L0010 — High-power IGCT device used in industrial power conversion.
- 5SHY35L4520 — ABB IGCT-family designation; verify the exact part and application.
- 5SHX08F4502 — IGCT-family model for power-electronics applications; verify specifications.
- 5SHX14H4502 — Related high-power semiconductor model; confirm electrical ratings.
- 5SHX26L4520 — IGCT-family designation; verify the complete ordering code.
- 5SDF10H4503 — ABB high-power semiconductor family component; verify device type and ratings.
- 5SDF16L4503 — Power semiconductor model for comparison within ABB converter applications.
- 5SNA1200G450300 — ABB high-power IGBT module for compatible power-conversion designs.
- 5SNA1500E330305 — ABB IGBT module; not a direct IGCT substitute.
- 5SNA2000K450300 — High-power IGBT module for suitable converter applications.
- 5SXE05-0156 — Associated reference listed with the target IGCT assembly; confirm its exact role in the equipment.
- 3BHB003154R0101 — Associated ABB reference for matching the target assembly.
- 3BHL000389P0101 — Earlier related product identifier; verify revision and interchangeability.
- 3BHL000389P0104 — Target ABB ordering number for the 5SHX2645L0004 IGCT RC component.
For critical drive equipment, use the original ABB bill of materials and semiconductor documentation to confirm the correct replacement, revision, and gate-drive compatibility.
