Description

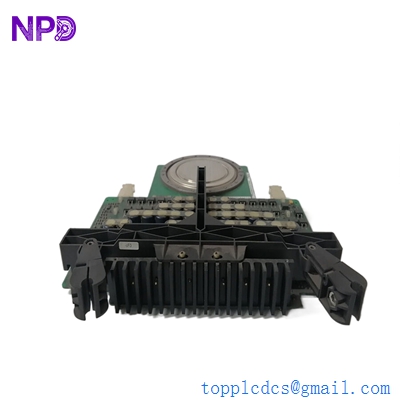

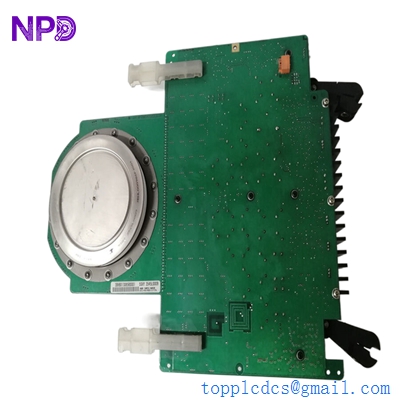

- Model: 5SHY3545L0009 (Integrated Gate-Commutated Thyristor – IGCT)
- Associated Part Numbers: 3BHB013085R0001 / 3BHE009681R0101
- Hardware Revision: GVC750BE101
- Brand: ABB (Switzerland)
- Series: ACS6000 / UNITROL 6000 / MEGADRIVE-LCI
- Core Function: High-power semiconductor switching with integrated gate control
- Product Type: IGCT Power Module (New Surplus)
- Key Specs: 4500V Blocking Voltage | Integrated Gate Driver | Fiber Optic Triggering
- Device Type: Asymmetric IGCT (Integrated Gate-Commutated Thyristor)
- Repetitive Peak Off-State Voltage (VDRM): 4500 V
- Controllable Turn-off Current (ITGQM): 3500 A – 4000 A (Application dependent)
- Gate Unit Power Supply: Integrated via the GVC750 interface
- Control Interface: Fiber optic (HFBR-series) for maximum galvanic isolation and noise immunity
- Revision GVC750BE101: Features optimized gate driving circuitry for improved switching losses and thermal performance
- Cooling Requirement: Press-pack design requiring specific clamping force and liquid or forced-air cooling
- Switching Frequency: Optimized for Medium Voltage (MV) drive applications (typically up to 1 kHz)
ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101
Installation & Configuration Guide
Phase 1: Preparation (Pre-Installation)
⚠️ Safety First:
- This module operates in Medium Voltage environments (up to 4.5kV). Ensure the DC link is discharged to < 50V and verified with a high-voltage probe.
- Clamping Force: IGCTs are “Press-pack” devices. You must have a calibrated torque wrench and the correct ABB mounting clamp. Improper pressure will destroy the device upon first power-up.
- Cleanliness: The contact surfaces must be perfectly clean. Use specialized lint-free wipes and a thin layer of silver-loaded conductive paste if specified by the ABB manual.
Phase 2: Removal of Faulty Module
- Fiber Optics: Disconnect the fiber optic cables. Do not touch the ends; use protective caps immediately. Contamination on the fiber tip can lead to “Gate Failure” alarms.
- Pressure Release: Gradually release the tension on the stack clamp.
- Handling: These modules are heavy and contains sensitive ceramic housings. Use both hands and do not lift by the gate unit circuit board.
Phase 3: New Module Installation
- Alignment: Align the 5SHY3545L0009 in the stack. Ensure the orientation of the gate unit (GVC750) matches the original layout for cable reach.
- Torquing: Apply pressure in increments according to the ABB assembly drawing. Final pressure is typically measured in kilonewtons (kN).
- Fiber Connections: Ensure the “TX” and “RX” fiber optics are seated until they “click.”
Phase 4: Commissioning & Testing
- Gate Power Test: Apply control power (usually 24V DC to the gate unit). Verify the status LEDs on the GVC750BE101 board are green before applying main high voltage.
- Fiber Loop-back: Use the drive’s diagnostic software to verify that the gate unit is “talking” to the main controller.
- Insulation Test: Perform a Megger test on the stack to ensure no grounding faults occurred during installation.
ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101
Customer Cases & Industry Applications
Case 1: Restoring a Marine Propulsion Drive (LNG Carrier)
Situation: An LNG carrier experienced a propulsion trip mid-voyage. The ACS6000 drive indicated an “IGCT Overcurrent” in Phase A. The 5SHY3545L0009 had failed due to a cooling system blockage.
Task: The ship was operating on reduced power. Every day of delay in a high-voltage repair costs the operator significant charter penalties.
Action: We provided a New Surplus 3BHB013085R0001 kit. The part was air-freighted to the ship’s next port of call.
Result: The onboard electrical officer replaced the module using the onboard clamping kit. The drive was recommissioned, and the vessel returned to full speed within 24 hours of receiving the part.
Case 2: Steel Mill Rolling Stand Recovery
Situation: A major steel mill in Brazil had a UNITROL 6000 excitation system fail on a main rolling motor. The failure was a “Gate Unit Fault” on the GVC750BE101 board attached to the IGCT.
Task: The mill’s production line was halted. The manufacturer’s lead time for a new IGCT assembly was 14 weeks.
Action: We supplied the exact revision 5SHY3545L0009 GVC750BE101. As a New Surplus item, it was available for immediate dispatch.
Result: The mill was back in operation 5 days after the failure. The ROI on the spare part was realized in less than one hour of restored production time.
ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101
Frequently Asked Questions (FAQ)
Q: Can I just replace the GVC750 board? A: No. The 5SHY3545L0009 is an “Integrated” unit. The gate driver is tuned at the factory to the specific characteristics of the silicon wafer. Separating them can lead to timing mismatches and catastrophic failure.
Q: What is the significance of the 3BHB013085R0001 vs 3BHE009681R0101 numbers? A: These are often used interchangeably in ABB’s global inventory system. 3BHB… is typically the top-level assembly number, while 3BHE… often refers to the electronic gate unit sub-assembly.
Q: Why choose “New Surplus” for high-power semiconductors? A: IGCTs have a finite number of thermal cycles. Used or “refurbished” semiconductors carry the risk of internal silicon fatigue or weakened gate capacitors. Our New Surplus units have zero operational cycles, ensuring the maximum possible life for your medium voltage drive.
Q: What is the most common cause of failure for the GVC750 gate unit? A: Moisture and dust ingress. These boards operate in high-voltage environments where “tracking” can occur if the environment isn’t clean. Always ensure your drive room is climate-controlled and pressurized.
Q: Does this module require a software update? A: No, the gate unit is a hardware-level trigger device. However, you should always check that your drive’s firmware supports the specific revision of the IGCT being installed.
