Description

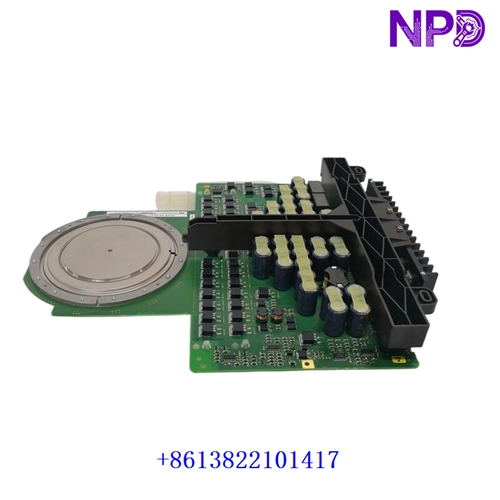

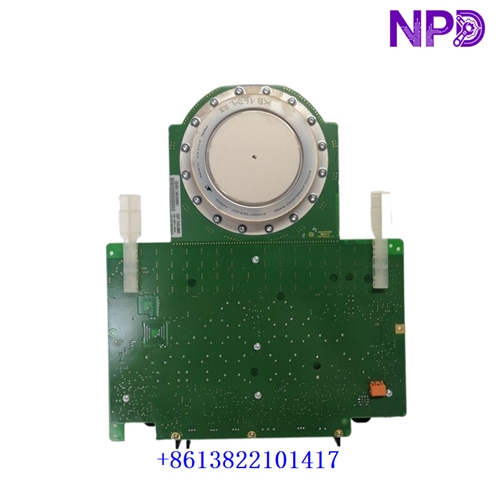

The components referenced (ABB 5SHY3545L0009 / part number 3BHB013085R0001 paired with the GVC750BE101 gate unit / part number 3BHE009681R0101) form an integrated, high-power Integrated Gate-Commutated Thyristor (IGCT) semiconductor assembly. Designed by ABB for medium-voltage industrial drives (such as the ACS6000 series), STATCOMs, wind turbine converters, and heavy-duty power electronics, this system provides fast, low-loss switching for high-voltage DC/AC conversion.
| Parameter | Specification |
| Brand / Manufacturer | ABB |
| Component Pair | 5SHY3545L0009 (IGCT Semiconductor Module) + GVC750BE101 (Gate Driver Unit) |
| Module Part Numbers | 3BHB013085R0001 (IGCT) / 3BHE009681R0101 (Gate Unit) |
| Product Type | Asymmetrical IGCT Power Semiconductor & Dedicated Gate Driver Assembly |
| Application Series | ABB Medium-Voltage Frequency Converters, FACTS, & HVDC Systems |
| Switching Characteristics | High-speed commutation, low conduction losses, optimized for snubberless operation |
| Isolation & Interface | Fiber-optic Rx/Tx command/feedback links for high electromagnetic immunity |
| Auxiliary Power (Gate Unit) | 24 V DC nominal input |
| Product Status | Industrial Power Semiconductor / Active System Support |
First-Run Inspection Checklist
- ☑ Physical & Package Integrity
Inspect the ceramic/metal housing of the IGCT module, contact pole faces, and the attached gate driver board for any transport damage, cracks, or loose fasteners.
- ☑ Optical Fiber & Cable Connection Check
Ensure that fiber-optic communication links between the gate unit and the control rack are clean, securely latched, and free of tight bend radii.
- ☑ Clamping Force & Thermal Interface
Verify that the mechanical stack clamping pressure (per ABB installation manuals) and the thermal interface grease between the module disc and liquid/air heat sinks are correctly applied prior to commissioning.
Routine Maintenance & Servicing
- 🛠 Cooling System Audit
Regularly monitor cooling water flow rates or heat sink temperatures to prevent thermal over-stressing during heavy-load operations.
- 🔌 Electrical & Grounding Inspection
Periodically inspect low-voltage auxiliary power connections (24 V DC), gate unit terminal blocks, and busbar mountings for oxidation or looseness caused by thermal cycling.
Troubleshooting & Common Issues
- ⚠️ Module Over-Temperature Trips
If converter fault logs report a thermal trip, check for cooling circuit scale accumulation, verify pump flow rates, and inspect baseplate thermal compound contact.
- ⚠️ Gate Communication Loss / Commutation Faults
If the drive registers a gate unit communication failure, inspect the optical transceivers for dust contamination, check the 24 V DC auxiliary rail stability, and verify fiber-optic cable continuity.
Safety Precautions
- 🔐 Qualified Personnel Only
Handling, testing, and replacement of high-power semiconductor modules and gate units must be executed exclusively by certified high-voltage technicians.
- ⚠️ Capacitor Discharge & Energy Isolation
Always fully isolate, lock out, and verify complete discharge of the DC-link capacitor banks before touching switchgear stack components or decoupling gate units.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the relationship between the 5SHY3545L0009 and the GVC750BE101?
A: The 5SHY3545L0009 is the high-power IGCT semiconductor power disc module, while the GVC750BE101 (
3BHE009681R0101) is its dedicated companion gate drive unit mounted directly to it, providing high peak gate currents and fiber-optic isolation. - ❓ Q2: Why are fiber optics utilized for these gate units?
A: Fiber optics provide high-voltage galvanic isolation and robust noise immunity against severe electromagnetic interference (EMI) generated inside high-power medium-voltage converter cabinets.
