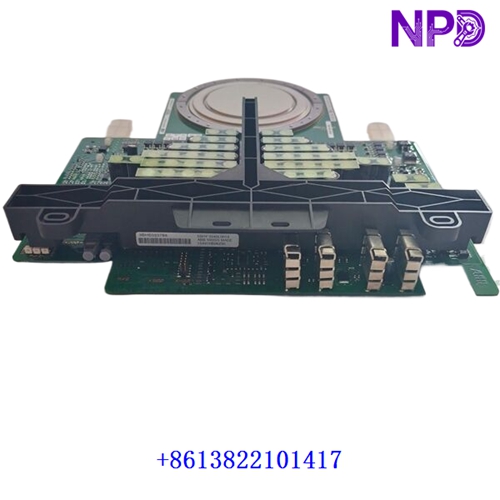

ABB | 5SHY3545L0014 | IGCT Power Semiconductor Module
🌟 Product Overview
The ABB 5SHY3545L0014 (integrating part numbers 3BHB013085R0001, 3BHE039203R0101, and GVC736CE101) is a premium-grade Integrated Gate-Commutated Thyristor (IGCT) module specifically engineered for high-power industrial applications. It features exceptionally low on-state losses, robust power cycling capabilities, and highly reliable high-frequency switching performance. Designed for demanding environments such as medium-voltage variable speed drives, marine propulsion systems, and renewable energy converters, this unit ensures optimized thermal management and continuous operational stability. Its integrated gate drive board delivers precise firing control, making it an indispensable component for efficient power electronics networks.
📊 Product Datasheet
| Parameter | Value |
| Brand | ABB |
| Model | 5SHY3545L0014 / 3BHB013085R0001 |
| Series | IGCT Asymmetric Series |
| Product Name | IGCT Drive Control Board Module |
| Origin | Switzerland |
| Product Status | Active / In Stock |
| Dimensions | 150mm x 150mm x 40mm |
| Weight | 2.5 kg |
| Country of Origin | Switzerland (CH) |
| Power Rating | 4500V / 4000A |
🛠️ Operation Standards and Usage Methods
🔸 Installation Standards: Ensure that the mounting contact surface is exceptionally clean, flat, and free of any dust or impurities. The exact mechanical clamping force specified by the official ABB manual must be strictly applied to guarantee optimal thermal conduction and electrical contact performance.
🔸 Electrical Connections: Carefully check that all gate drive connections, including the GVC736CE101 board, are securely inserted and locked. Always wear an anti-static wrist strap throughout the handling of the gate drive unit to prevent electrostatic breakdown of core microelectronic components.
🔸 Operational Requirements: The equipment must operate within its rated voltage and current parameters. Before energizing the main circuit, start the cooling system and confirm that the liquid or air cooling system is running smoothly in a fully normal circulation state.
🚨 Emergency Shutdown Procedures
🔺 Rapid Main Power Disconnection: When the system detects abnormal vibration, severe overheating, sudden current spikes, or a loss of control board connection, immediately trigger the main circuit breaker to completely and physically isolate the IGCT module from the high-voltage grid.
🔺 Blocking Trigger Pulses: The control system must send an emergency shutdown (OFF) command to the drive control board (3BHE039203R0101) within milliseconds, completely halting any conduction trigger signals sent to the thyristor.
🔺 Maintaining the Cooling Circulation: Do not shut down the cooling system immediately after an emergency stop. Allow the cooling water circulation or cooling fans to continue running for at least 10 to 15 minutes to fully dissipate residual heat from inside the module, preventing thermal stress damage to the semiconductor wafer.
🔍 Troubleshooting and Common Issues
⚠️ Issue 1: Gate Drive Non-Responsive
Troubleshooting Method: First, inspect the fiber optic cables connected to the GVC board for excessive bending or damage. Second, use a high-precision multimeter to measure the auxiliary power supply providing voltage to the gate drive unit, confirming whether its output voltage remains stable within the specified range.
⚠️ Issue 2: Module Overheating Trip Alarm
Troubleshooting Method: After shutting down and powering off the system, first check if the mechanical clamping force of the heat sink has loosened due to aging. Second, check the deionized water cooling circuit for any impurity blockages or abnormal drops in water pump operating pressure.
⚙️ Routine Maintenance and Care
🔹 Visual Inspection: It is recommended to perform a detailed appearance inspection weekly, focusing on checking the module surface for dust accumulation, and inspecting the gate control board for signs of moisture, corrosion, or discoloration of components due to high temperatures.
🔹 Cooling Medium Monitoring: For water-cooled systems, continuously monitor the conductivity of the deionized water online to ensure it consistently stays below the strict micro-Siemens safety threshold required by the equipment, preventing leakage currents and corrosion.
🔹 Fastener Testing: Every half year of operation, use professional torque tools to retest the pressure values of the mechanical clamping mechanism to ensure they remain within the original factory-specified kilonewton range.
💡 Frequently Asked Questions Q&A
❓ Q1: Can the gate control board and the main thyristor be replaced independently?
💬 A1: Generally, if anti-static standards are strictly observed during operation and proper parameter calibration is performed by qualified technicians, the gate drive board can be disassembled and replaced independently without replacing the entire thyristor body.
❓ Q2: What is the estimated design lifespan of this IGCT module?
💬 A2: Under specified cooling conditions, regular maintenance, and normal operating conditions within the rated power limits, the design lifespan of this ABB IGCT module series typically reaches 15 to 20 years or more.
❓ Q3: Are there any special environmental requirements for spare parts storage?
💬 A3: Spare parts must be stored in a dry, clean environment free of corrosive gases. It is recommended to keep the ambient temperature between -40°C and +60°C, with relative humidity below 75%, and do not remove the original factory anti-static sealed packaging prior to actual installation.
