Description

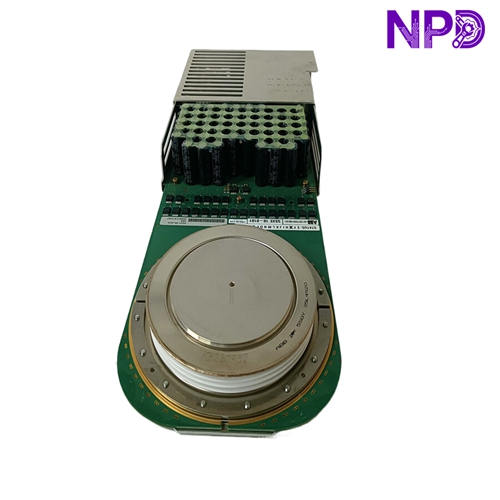

The ABB 5SHY35L4520 (part of the 5SXE series) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module designed for demanding industrial power electronics. Engineered for extreme reliability and high power density, this semiconductor component excels in high-voltage and high-current applications where efficiency and switching performance are critical.
📋 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB Integrated Gate-Commutated Thyristor (IGCT) |
| Model Number | 5SHY35L4520 (5SXE10-0181) |
| Power Rating | Designed for multi-megawatt power converters |
| Core Function | High-speed switching and power regulation |
| Primary Usage | Medium voltage drives, grid interconnection, HVDC |
| Voltage Class | 4500 V |
| Current Rating | 3500 A |
| Dimensions | Standardized industrial module footprint |
| Weight | Approximately 5.5 kg (depending on heatsink assembly) |
| Country of Origin | Switzerland |
🚀 Recommended Series Models
Explore these alternative models within the ABB high-power semiconductor lineup for similar industrial applications:
- 5SHY35L4510 – Enhanced thermal performance series
- 5SHY42L4500 – Higher current density variant
- 5SHY50L2600 – Optimized for 2.6kV grid systems
- 5SHX26L4510 – Asymmetric IGCT for specialized drives
- 5SHY65L2600 – High-current capacity model
- 5SHY35L4521 – Precision-tuned high-voltage variant
- 5SHY40L4500 – Heavy-duty industrial switching module
- 5SHX35L4512 – Integrated gate drive optimized module
- 5SHY55L3000 – Versatile medium-voltage application
- 5SHY35L5000 – Extended voltage range IGCT
