Description

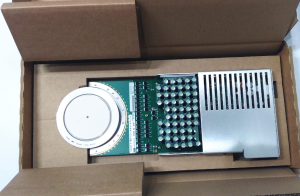

- Model: ABB 5SHY35L4520
- Brand: ABB (Switzerland/Sweden)
- Series: IGCT (Integrated Gate-Commutated Thyristor) Power Series
- Core Function: High-speed, high-power semiconductor switching for MV converters
- Product Type: Integrated Gate-Commutated Thyristor Module
- Key Specs: 4,500 V Blocking Voltage | 3,500 A Peak Current | Integrated Gate Driver
- Peak Repetitive Off-state Voltage (VDRM): 4,500 V
- Controllable Turn-off Current (ITGQM): 3,500 A
- Device Symmetrical Type: Asymmetric IGCT
- Gate Driver Supply Voltage: 24 V DC (nominal)
- Optical Interface: Fiber optic (HFBR connectors) for noise immunity
- Storage Temperature: -40 °C to +70 °C
- Operating Junction Temperature: 0 °C to +115 °C
- Weight: Approx. 6.5 kg (including heat sink interface)
- Mounting Type: Press-pack (requires calibrated clamping force)
- Cooling Requirement: Liquid cooled (typically deionized water)
5SHY35L4520
Application Scenarios & Pain Points
In large-scale industrial plants, especially those running 2,000+ kW motors, the power conversion stage is the heart of the operation. If an IGCT module like the 5SHY35L4520 fails, it’s not just a “blown fuse”—it’s a catastrophic halt for a main drive or a static var compensator (SVC). Because these components handle massive energy, the failure usually involves an immediate system trip to prevent a fire. Finding an exact replacement with the right gate-unit revision is often the bottleneck that keeps a multi-million dollar plant dark for weeks.
Typical Application Scenarios:
- Metals & Mining – Main Mill Drives Used in ACS6000 multi-drive systems to control the speed of massive grinding mills. High reliability is mandatory due to the dusty, high-vibration environment.
- Power Grid – Static Var Compensators (SVC) Integrated into FACTS (Flexible AC Transmission Systems) to stabilize grid voltage. These modules handle the high-speed switching required for reactive power compensation.
- Marine – Propulsion Systems Found in the frequency converters of large electric ships (LNG carriers/Cruise ships). Space is tight and the cost of failure at sea is astronomical.
- Oil & Gas – Large Compressor Drives Powering gas export compressors where any spark or failure must be managed by robust, predictable semiconductor behavior.
Case Study: The 48-Hour Mining Rescue
Background: A copper mine in Chile experienced a drive failure on their primary conveyor system. The diagnostic log showed a “Gate Driver Power Supply Failure” on Phase U of the main inverter.
Problem: The existing module, an older revision of the 5SHY35L4520, was dead. The local distributor quoted a 14-week lead time for a new unit. Every day the conveyor was down cost the mine $120,000 in lost throughput.
Solution: We verified a 5SHY35L4520 in our “Ready-to-Ship” inventory. Before dispatch, we performed a 24-hour fiber-optic loopback test and a leakage current check at 4,000 V. We overnighted the unit via international air freight.
Result: The module arrived within 48 hours. The on-site tech swapped the unit, recalibrated the clamping pressure, and the conveyor was back at 100% capacity by the third day. Total downtime was slashed by over 90 days compared to the official channel.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
| 5SHY35L4520 | 5SHY35L4521 | ✅ Direct | Improved gate driver efficiency | None (Plug & Play) |
| 5SHY35L4520 | 5SHY35L4522 | ✅ Direct | Higher Tj (Junction Temp) | None (Firmware ≥ V4.0) |
| 5SHY35L4520 | 5SHY45L4520 | ⚠️ Software | Higher current rating (4,500 A) | Must adjust current limits in PEC |
Troubleshooting Quick Reference
| Symptom | Potential Cause | IGCT Relevance | Fast Check | Action |
| Drive “Ground Fault” | Insulation breakdown | ✅ High | Check for moisture or carbon tracking on the module ceramic. | Clean or replace module. |
| “Gate Supply Fail” | Internal DC/DC failure | ✅ High | Measure 24 V DC input at the gate unit terminal. | If 24 V is present but LED is off, module is toast. |
| Communication Error | Fiber optic link down | ⚠️ Medium | Inspect fiber ends for dust or kinks. Use a light meter. | Clean fiber or replace cable before the module. |
| Overtemperature Trip | Cooling blockage | ❌ Low | Check flow rate of the liquid cooling circuit. | Flush the cold plate; usually not a module fault. |
Pro-Tip from the Field: When replacing an IGCT, never reuse the old thermal paste. Use a high-quality, high-conductivity compound and a torque wrench to set the clamp. If the pressure isn’t perfectly centered, you’ll create hot spots that will kill a $5,000 module in minutes. I’ve seen it happen—don’t be that guy.
SOP Quality Transparency
- Inbound Verification: We track the serial numbers against ABB’s manufacturing database to ensure the unit isn’t a “grey market” repair. We physically inspect the press-pack surface for any microscopic pits or scratches.
- Live Functional Testing: We use a specialized test rig simulating an ABB PEC (Power Electronic Controller) environment.
- Gate Handshake: Confirming the module communicates via the fiber optic link.
- Static Leakage Test: We apply 4,500 V DC using a Fluke 1555 insulation tester to ensure leakage is within factory specs (< 100 mA).
- Mechanical Check: Verification of the integrated gate unit’s capacitor bank health (checking for bulging or electrolyte leakage).
- Final Packing: The module is vacuum-sealed in an ESD-safe bag, then nested in a custom-cut high-density foam crate to prevent any vibration damage during transit.
Additional Inventory Highlights
- 5SHY35L4510
- 5SHY35L4512
- 3BHB003154R0101
- 3BHE039025R0101
- 5SXE08-0166
- 5SNA1200E330100
- 5SHY35L4503
- 5SHY45L4520
