Description
Product Core Brief

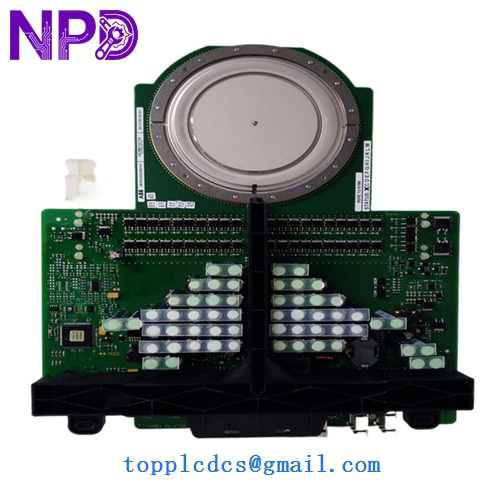

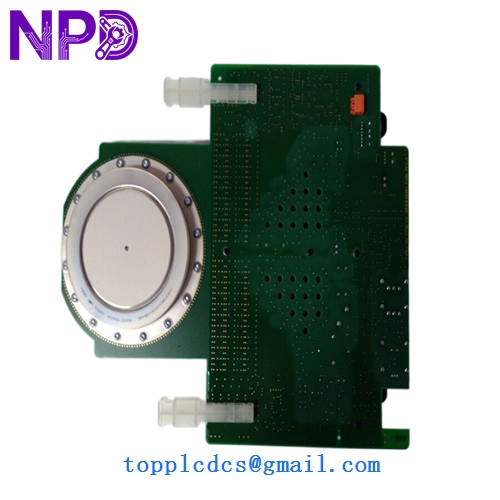

- Model: 5SHY4045L0006 (Commonly associated with 3BHB030310R0001 / 3BHE039203R0101)
- Brand: ABB (Switzerland)
- Series: High-Power Semiconductor / IGCT Series
- Core Function: High-power switching and phase control for medium-voltage drives and converters
- Condition: Brand New Surplus (Original New), zero hours of operation
- Product Type: Integrated Gate-Commutated Thyristor (IGCT) Module
- Key Specs: High-current switching capability | Robust thermal management | Integrated gate drive
Key Technical Specifications
- Device Type: Integrated Gate-Commutated Thyristor (IGCT)
- Voltage Rating: Typically 4,500 V to 6,500 V (Model specific)
- Current Rating: High-capacity industrial load handling
- Control Interface: Fiber optic trigger (for noise immunity)
- Gate Drive: Integrated on-board electronics
- Cooling Method: Press-pack design for liquid or forced-air cooling
- Mounting: Specific clamp-force requirements for electrical contact
- Firmware/Revision: GVC736CE101 / 5SXE12-0184 compatible
- Standard Compliance: IEC industrial power electronic standards
- Storage Temperature: -40 °C to +70 °C
ABB 5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 5SXE12-0184
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation: 20 minutes)
⚠️ CRITICAL SAFETY WARNING: These modules operate in high-voltage environments. Ensure the drive system is completely de-energized, locked out, and all DC link capacitors are fully discharged using a certified discharge rod. Wait at least 15 minutes after power-down and verify zero voltage with a high-voltage probe.
Tools Required:
- Calibrated torque wrench (essential for press-pack pressure)
- Clean, lint-free gloves (avoid skin oils on contact surfaces)
- Fiber optic cleaning kit
- Fluke 1587 Insulation Tester (Megger)
Phase 2: Removal of the Failed Module (Removal: 30 minutes)
- Fiber Optic Disconnection: Gently unplug the fiber optic control cables. Mark them “TX” and “RX” clearly to avoid cross-wiring.
- Loosen Clamping Pressure: These IGCTs are held by intense pressure. Slowly loosen the stack clamp bolts in a cross-pattern to prevent uneven stress on the remaining modules.
- Surface Inspection: Once the old 5SHY4045L0006 is removed, inspect the heatsink surfaces for pitting or arcing marks. Use a fine abrasive pad if minor oxidation is present.
Phase 3: Installing the New Module (Installation: 45 minutes)
- Alignment: Position the new 3BHB030310R0001 module. Note the orientation of the gate unit—it must align perfectly with the cooling assembly and fiber optic routing.
- The “Torque Rule”: This is where most mistakes happen. You must apply the exact kN (kilo-Newton) force specified in the ABB drive manual. Too little pressure causes high resistance and fire; too much pressure cracks the silicon wafer.
- Fiber Optic Seating: Ensure the fiber cables “click” into place. A loose connection here will cause immediate gate-drive failure or “misfire” faults.
Phase 4: Commissioning (Testing: 40 minutes)
- Gate Drive Self-Test: Power up the control electronics only (not the main power). Observe the status LEDs on the GVC736CE101 unit. You should see a steady green “Ready” or “Power OK” light.
- Insulation Check: Perform a 500 V DC insulation test between the gate electronics and the power terminals to ensure no grounding occurred during installation.
- Pulse Test: If your drive software supports it, perform a low-voltage pulse test to verify the thyristor is firing correctly before applying full DC link voltage.
ABB 5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 5SXE12-0184
Customer Cases & Industry Applications
Case 1: Marine Propulsion System Recovery A large LNG carrier experienced a propulsion drive failure while docked in Singapore. The drive utilized ABB IGCT modules, and the original manufacturer quoted a 14-week lead time for a new 5SHY4045L0006. This delay would have cost the shipping company $50,000 per day in port fees and lost charter revenue. We dispatched a tested, new surplus module via air-dash. The ship was back under power within 72 hours of the initial fault.
Case 2: Steel Mill Rolling Line Maintenance A European steel mill relied on an aging ABB converter for its main rolling stand. During a planned maintenance shutdown, two modules were found to have degraded gate drive characteristics. Rather than committing to a €500,000 system-wide upgrade, the mill opted to purchase our last three units of the 3BHE039203R0101. This strategic buy extended the life of their current infrastructure by an estimated 7 years, saving massive capital expenditure in the short term.
ABB 5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 5SXE12-0184
Frequently Asked Questions (FAQ)
Q: Is the 5SHY4045L0006 interchangeable with other IGCT versions? A: Generally, no. While the physical dimensions of press-pack IGCTs may look identical, the gate drive electronics (GVC736CE101) and the internal silicon characteristics are tuned to specific drive parameters. Always match the 3BHB030310R0001 or 3BHE039203R0101 part numbers exactly.
Q: Why is the price for this “Surplus” module higher than some other sites? A: To be honest, you might find these cheaper on auction sites, but those are almost always “pulls” from scrapped drives. Our units are Brand New Surplus. They have never seen a load. When you are dealing with a part that controls thousands of volts, the “history” of the part is the difference between a successful repair and a catastrophic explosion.
Q: Do you provide the clamping hardware? A: No, we provide the IGCT module and the integrated gate drive unit. We highly recommend using new original ABB spring clamps if the old ones show any signs of fatigue or loss of tension.
Q: Can I get a test report before I buy? A: Absolutely. We perform a power-on self-test of the gate unit and a static leakage current test. We can provide photos of the serial number and the test bench setup at www.newplcdcs.com before the item leaves our warehouse.
