Description
- Model: 5SHY5045L0020 (including 5SXE10-0181 / AC10272001R0101)
- Brand: ABB (Switzerland)
- Series: IGCT (Integrated Gate Commutated Thyristor) Power Modules
- Core Function: High-power switching and commutation for large-scale converters.
- Product Type: Power Semiconductor / Gate Driver Unit
- Key Specs: High voltage/current rating | Fiber optic control | Integrated gate driver
- Peak Off-state Voltage: 4,500 V
- Controllable Turn-off Current: 4,000 A
- Gate Drive Supply Voltage: 24 V DC (nominal)
- Control Interface: Optical fiber (HFBR-series compatible)
- Switching Frequency: Up to 500 Hz – 1 kHz (application dependent)
- Storage Temperature: -40 °C to +70 °C
- Operating Temperature: 0 °C to +60 °C (heatsink dependent)
- Cooling Requirement: Liquid or forced air (requires external heatsink)
- Mounting Type: Press-pack assembly
- Weight: Approx. 5.5 kg (unit only)

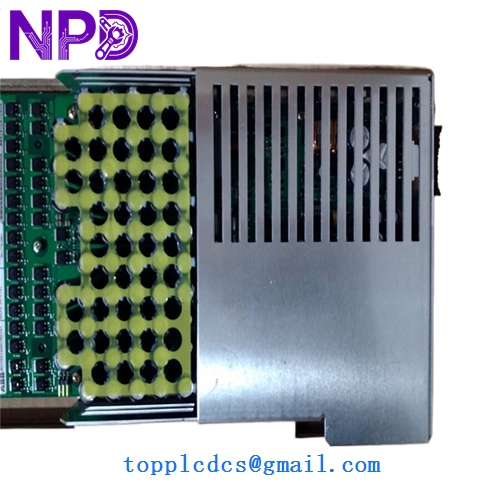

ABB 5SHY5045L0020 AC10272001R0101 5SXE08-01675SHY5045L0020
Application Scenarios & Pain Points
In large-scale industrial power applications—like medium voltage drives or wind turbine converters—the 5SHY5045L0020 is the heart of the power stage. When one of these thyristors fails, it’s rarely a “silent” death; it usually trips the entire drive, halting production instantly. Because these modules are specialized power electronics, lead times from the factory can stretch into months, leaving critical infrastructure at a standstill.
Typical Application Scenarios:
- Medium Voltage Drives (MVD) Used in ABB ACS series drives for heavy-duty motors in mines and mills. These modules handle the high-speed switching required for motor speed control.
- Wind Power Converters Acting as the primary switching element in utility-scale wind turbine inverters to sync power with the grid.
- Static Var Compensators (SVC) Maintaining grid stability and power quality in utility substations by managing reactive power.
- Marine Propulsion Integrated into the electric drive systems of large vessels where reliability and high current density are non-negotiable.
Engineering Case Study: The 24-Hour Recovery
Background: A regional water treatment plant utilized an ABB ACS6000 drive for their main high-lift pump. During a summer peak, a 5SHY5045L0020 module failed due to a gate driver power supply spike.
The Problem: The local distributor quoted a 14-week lead time. The plant only had 48 hours of water reserve before they would have to implement strict rationing for the city.
The Solution: We provided a verified, tested 5SHY5045L0020 from our stock. Because we had the 5SXE10-0181 sub-assembly details on file, we could confirm it was the exact revision needed for their specific drive version.
Result: The module arrived within 18 hours. The site engineer swapped the press-pack unit, re-calibrated the clamping pressure, and the pump was back online with 12 hours of reserve to spare.
ABB 5SHY5045L0020 5SXE10-0181 AC10272001R0101
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
|---|---|---|---|---|
| 5SHY5045L0020 | 5SHY5045L0021 | ✅ Direct | Minor gate driver revision | Drop-in replacement |
| 5SHY5045L0020 | 5SHY35L4520 | ⚠️ Software | Lower current rating | Must check load limits |
| 5SHY5045L0020 | Generic GTO | ❌ Incompatible | Different gate requirements | Cannot be used |
ABB 5SHY5045L0020 5SXE10-0181 AC10272001R0101
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to 5SHY5045L0020 | Quick Check | Action |
|---|---|---|---|---|
| Gate Drive Error (LED Red) | Loss of 24V or Fiber link | ⚠️ Medium | Measure 24V DC at the module connector. | Check fiber cables for kinks. |
| Short Circuit Trip | Module breakdown | ✅ High | Use a megger/multimeter on Anode-Cathode. | Replace module if resistance < 10kΩ. |
| Over-temperature Trip | Poor clamping/Cooling | ✅ High | Check clamping pressure (kN) on the press-pack. | Re-apply thermal paste; verify pump. |
| Phase Loss Alarm | Gating failure | ⚠️ High | Check gate driver pulse with an oscilloscope. | Replace if pulses are missing. |
Engineer’s Pro-Tip: “I’ve seen this a dozen times—if you’re replacing a 5SHY5045L0020, don’t forget the clamping pressure. These press-packs are sensitive. If you don’t hit the exact kilonewton (kN) rating specified in the ABB manual, the electrical contact will be poor, and you’ll blow the new module within ten minutes of full-load operation. Also, always replace the fiber optic cables if they look even slightly cloudy.”
If you need a copy of the clamping specifications or the specific gate driver pinout for the AC10272001R0101 board, just ask—I’ve got the technical docs ready.
