Description
The ABB 70PR05B-ES (Part Number: HESG332204R0001) is a specialized pulse preamplifier and signal conditioning module. It is a key component within ABB’s power electronics and turbine control families, designed to interface between high-speed rotational sensors and digital control systems.
Product Parameters (Datasheet)
- Model Number: 70PR05B-ES
- Part Number: HESG332204R0001
- Module Type: Pulse Preamplifier / Speed Sensing Interface
- Input Signal Type: Sinusoidal or pulse signals from inductive/magnetic speed sensors
- Operating Voltage: 24V DC (Standard system power)
- Frequency Range: Capable of handling high-frequency inputs (typically up to 10 kHz or higher for turbine applications)
- Output Signal: Square wave or logic-level pulses compatible with PLC/DCS digital inputs
- Mounting: Rack-mounted or DIN rail compatible (depending on the carrier board)
- Protection: Galvanic isolation and transient surge protection
- Operating Temperature: -10°C to +70°C (Industrial grade)

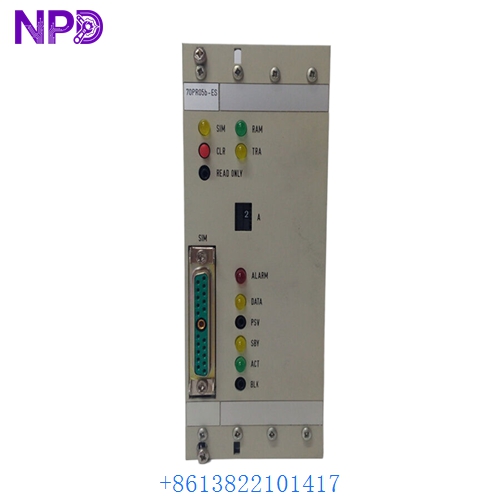

ABB 70PR05B-ES HESG332204R0001

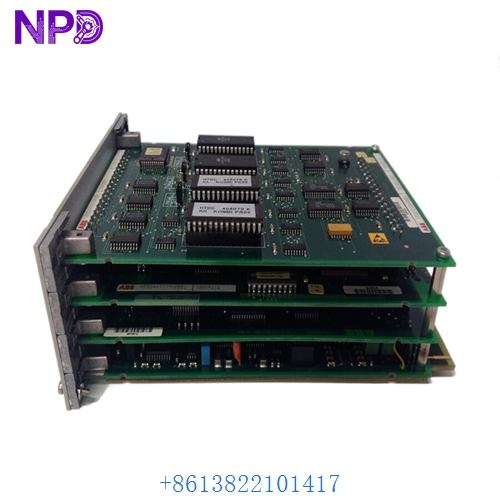

ABB 70PR05B-ES HESG332204R0001
ABB 70PR05B-ES HESG332204R0001
Country of Origin
This precision electronic module is engineered and manufactured by ABB in Switzerland or Germany, typically for use in their ProControl P13 or Advant control platforms.
Application Fields
The 70PR05B-ES is primarily utilized in sectors requiring precise rotational speed monitoring:
- Power Generation: Monitoring the RPM of steam and gas turbines to manage overspeed protection systems.
- Hydroelectric Plants: Tracking water turbine speed for frequency synchronization.
- Heavy Machinery: Interfacing with tachometers on large industrial motors and compressors.
- Wind Energy: Monitoring rotor and generator speeds in utility-scale wind turbines.
Product Usage Instructions
- Installation: Ensure the module is securely seated in its subrack or carrier. Check that all backplane pins are straight and clean before insertion.
- Sensor Wiring: Connect the magnetic pickup or speed sensor to the input terminals. Use shielded, twisted-pair cabling to prevent electrical noise from causing “false pulses.”
- Threshold Adjustment: If applicable, use the onboard potentiometers to adjust the input trigger sensitivity, ensuring the module ignores low-level background noise.
- Signal Verification: Use an oscilloscope at the output test points to verify that the incoming sinusoidal wave is being correctly converted into a clean square wave.
- Grounding: Ensure the cable shield is grounded at the control cabinet end only to avoid ground loops that can degrade signal accuracy.
Product Technical Description
The 70PR05B-ES HESG332204R0001 functions as a “bridge” between the analog world of physical motion and the digital world of control logic. Technically, it is a high-gain amplifier followed by a Schmitt trigger circuit. When a magnetic sensor detects a gear tooth passing by, it generates a weak analog voltage. The 70PR05B-ES amplifies this signal and converts it into a standardized digital pulse. Its high common-mode rejection ratio (CMRR) is specifically designed to filter out the electromagnetic interference (EMI) commonly found near large generators and motors.
Q&A (Common Questions)
Q: Can I use this module with an active Proximity Switch? A: This module is primarily designed for passive inductive sensors (magnetic pickups). If using an active NPN/PNP switch, verify that the input voltage levels match the module’s trigger thresholds.
Q: What does the “ES” suffix signify? A: In ABB nomenclature, “ES” often denotes an “Enhanced Specification” or a revision intended for specific safety-critical or high-temperature environments.
Q: Why is my system reporting a “Zero Speed” error when the turbine is spinning? A: Check the gap between the sensor and the gear wheel. If the gap is too large, the voltage produced will be too weak for the 70PR05B-ES to amplify. Also, check for a break in the cable shield.
Q: Is this module compatible with ProControl P13? A: Yes, the 70PR-series modules are widely used within the ProControl P13 system architecture for turbine and auxiliary control.
Similar Model Recommendations
- ABB 70PR05A (Standard sensitivity version)
- ABB 70PR06B (Higher frequency variant)
- ABB HESG448200R1 (Speed Signal Processor)
- ABB 70AA01 (Analog Input companion)
- ABB 70EB03 (Digital I/O module)
For technical support or to request a quote for the ABB 70PR05B-ES, please contact our automation specialists.
