Description
- The ABB 81EU01E-E GJR2391500R1210 is a high-reliability electronic unit designed for the Advant Controller system, specifically engineered to provide stable signal processing and logic execution in demanding industrial environments. This 81EU01E-E GJR2391500R1210 module serves as a critical interface component, ensuring seamless communication between the central processing unit and field instrumentation while maintaining high electromagnetic compatibility and thermal stability.
Technical Specifications
- Model Number: 81EU01E-E
- Product ID: GJR2391500R1210 / GJR2391511R42
- System Compatibility: Advant Controller Series / Procontic System
- Input Voltage: 24V DC (nominal range 18-30V)
- Power Consumption: Typically < 5W
- Operating Temperature: 0°C to +55°C
- Mounting Type: Subrack/Rack-mounted
- Communication Interface: Standard System Bus
- Weight: Approx. 0.45 kg As a specialized processing unit, this module integrates advanced diagnostic features to minimize downtime, offering a robust solution for complex automation sequences and real-time control applications within large-scale distributed control systems.

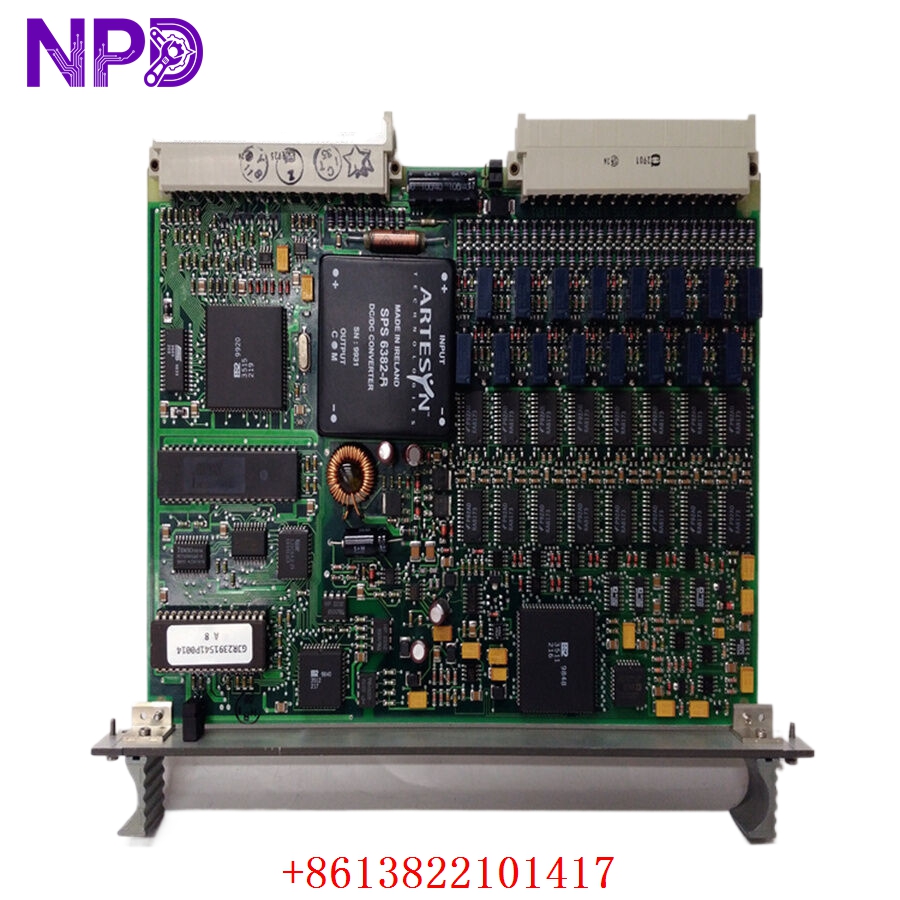

ABB 81EU01E-E GJR2391500R1210 GJR2391511R42

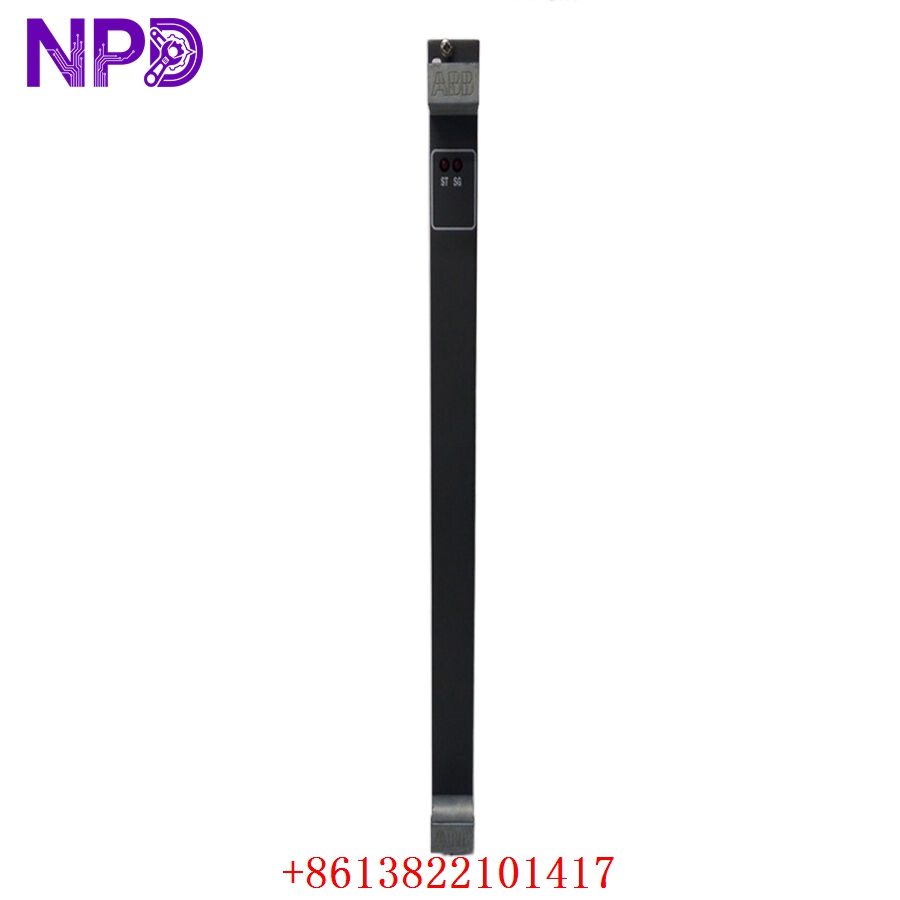

ABB 81EU01E-E GJR2391500R1210 GJR2391511R42

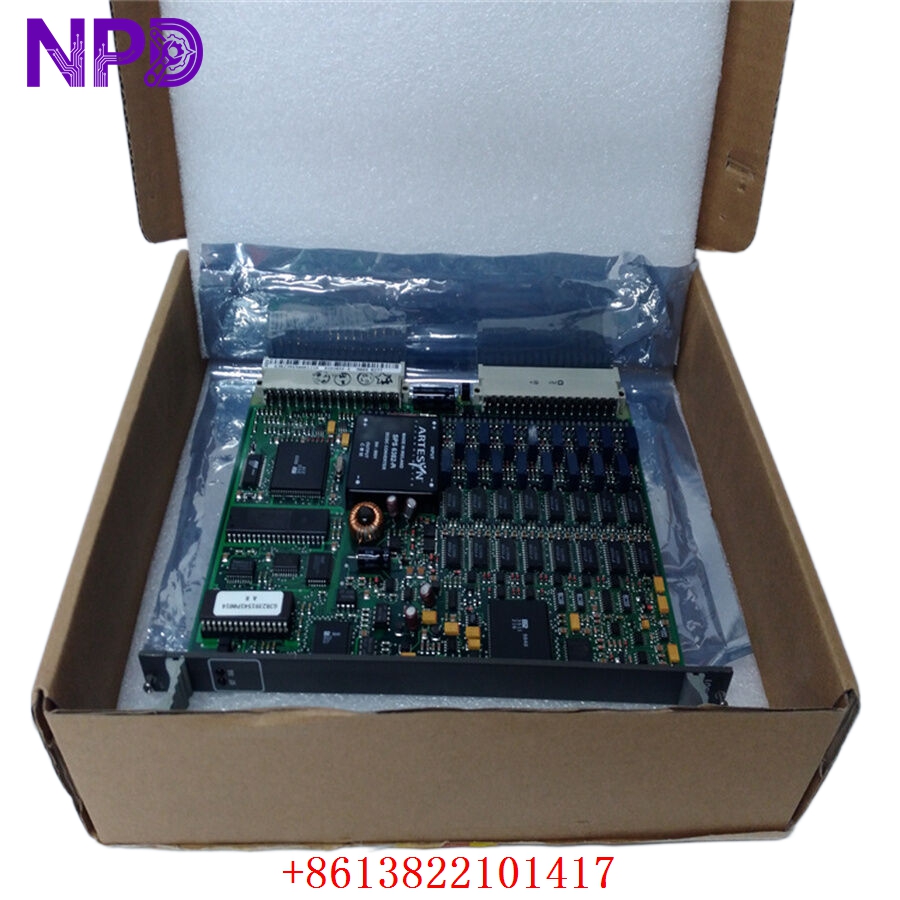

ABB 81EU01E-E GJR2391500R1210 GJR2391511R42
ABB 81EU01E-E GJR2391500R1210 GJR2391511R42
Model Comparison
While the 81EU01E-E shares a similar footprint with the standard 81EU01 series, the specific GJR2391500R1210 variant features enhanced firmware capabilities and specialized I/O mapping compared to the base R11xx versions. The “E-E” suffix often denotes an extended environmental rating or specific European compliance standards, making it more resilient to power fluctuations than older, non-suffixed hardware revisions.
Operational Tips
- Static Safety: Always use an ESD (Electrostatic Discharge) wrist strap when handling the module to prevent internal circuit damage.
- Hot-Swapping: Review the specific rack configuration before removal; while many Advant modules support hot-swapping, ensure the control loop is in “Manual” or “Bypass” mode to prevent system trips.
- Firmware Verification: Ensure the GJR revision matches your existing system software version to avoid compatibility errors during synchronization.
- Status Indicators: Pay close attention to the front-panel LEDs; a steady green light indicates normal operation, while flashing red typically signals a self-test failure or communication bus error.
