Description
| Attribute | Detailed Information |
| Model | ABB 83SR04C-E |
| Assembly Number | GJR2390200R1411 / GJR2390211R45 |
| Brand | ABB (Germany/Switzerland) |
| Series | Procontrol P13 (Power Generation Control) |
| Core Function | Binary logic control and signal processing (Sub-loop Control) |
| Product Type | Binary Control Module |
| Key Specs | 24 V DC Power / P13 Bus Communication / Dedicated Logic Processor |
Key Technical Specifications
- Operating Voltage: 24 V DC (Permissible range 19.2 to 30 V)
- Backplane Interface: P13 Standard Euro-card Connector
- Processor Type: 8-bit specialized binary processor
- Communication Protocol: ABB Procontrol P13 Serial Bus
- Diagnostic Features: Hardware self-test, bus timeout detection, I/O status feedback
- Ambient Temperature: 0 to +55 °C (Operating)
- Mounting: Plug-in Rack Installation (Decentralized architecture)
- Firmware Rev: Typically R1411 (Verify against site requirements)

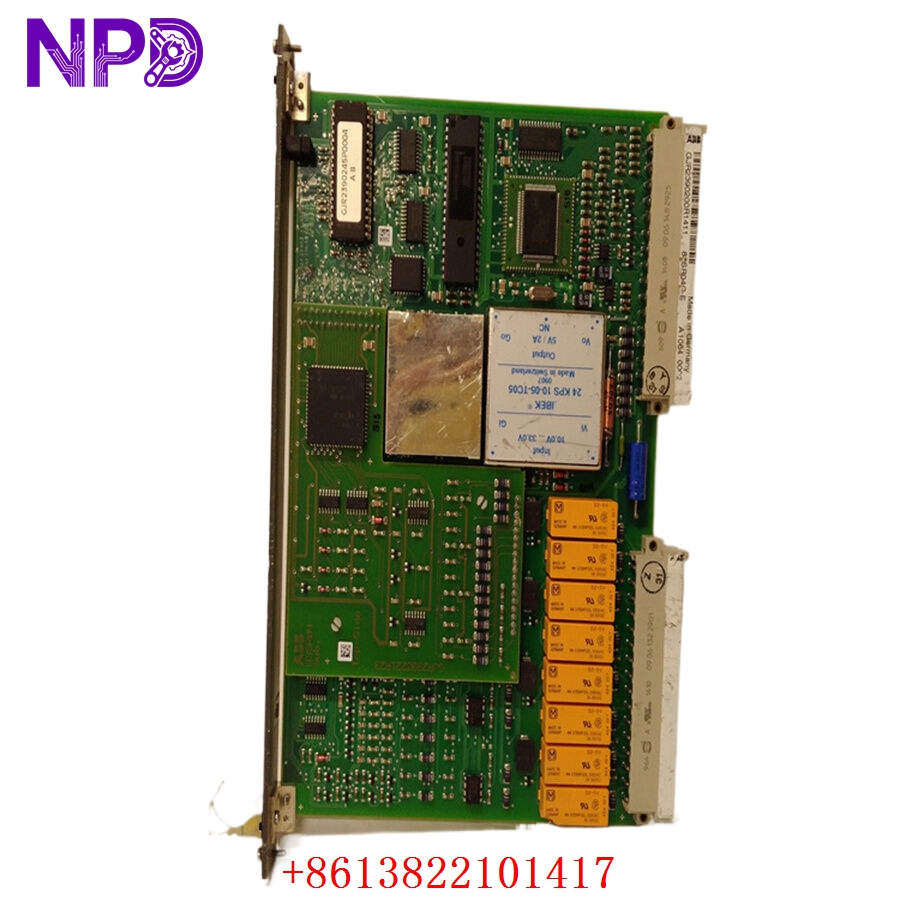

ABB 83SR04C-E GJR2390200R1411 GJR2390211R45

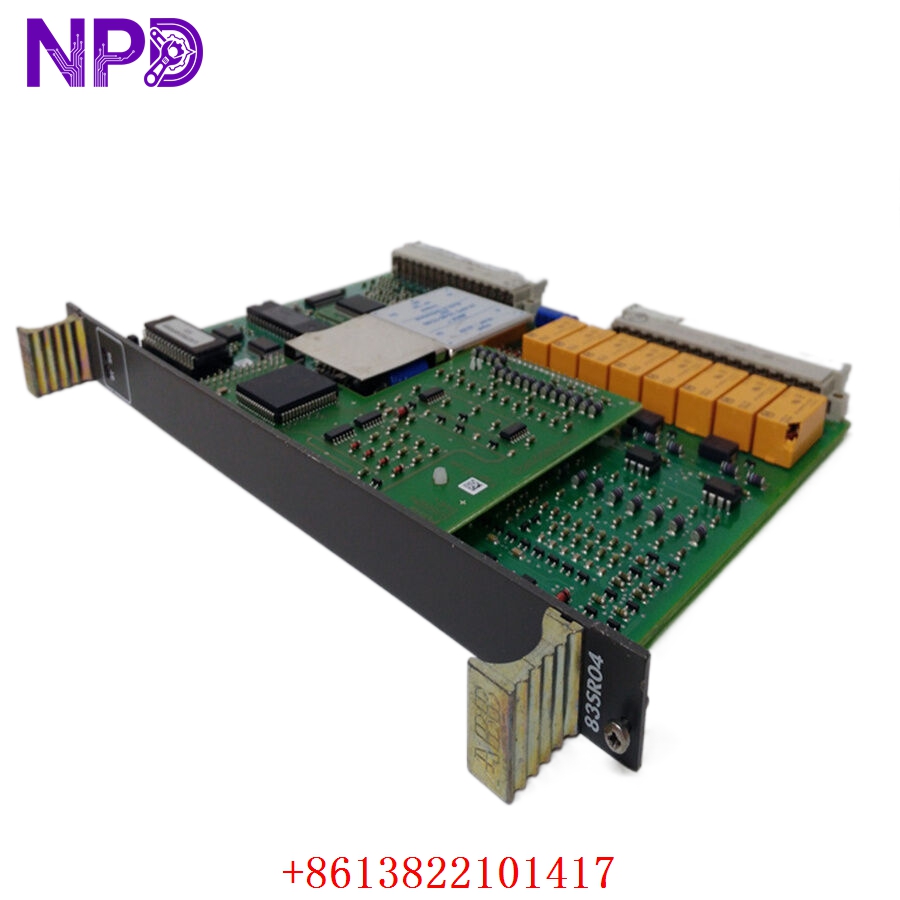

ABB 83SR04C-E GJR2390200R1411 GJR2390211R45
ABB 83SR04C-E GJR2390200R1411 GJR2390211R45
Application Scenarios & Pain Points
In the world of DCS (Distributed Control Systems) for power plants, the Procontrol P13 is a legendary workhorse, but it can be temperamental. The 83SR04C-E module handles the fundamental logic—issuing start commands to oil pumps or slamming valves shut when pressure thresholds are breached.
The Engineering Challenge:
Many facilities face the reality that these modules have been out of production for years. When a module fails due to aging capacitors or logic chip burnout, the entire interlocking system alarms, often leading to an unscheduled unit trip. Finding a tested, firmware-matched spare in the middle of the night is often the difference between a minor fix and a million-dollar outage.
Typical Application Scenarios:
- Thermal Power Plants – Boiler Interlock Logic
Managing start/stop sequences for coal mills, feed water pumps, and fans where timing is critical.
- Turbine Control Systems (TCS)
Processing high-speed binary trip signals to ensure the turbine enters a safe state during emergency conditions.
- Heat Recovery Steam Generator (HRSG) Monitoring
Acting as a local processing unit for valve manifold state switching in combined-cycle plants.
- Legacy DCS Lifecycle Extension
Replacing individual failed boards to keep the system operational while long-term migration to ABB Ability Symphony Plus is planned.
Compatible Replacement Models
Note: P13 compatibility is strictly dependent on the GJR number and the Rxxxx revision suffix.
| Original Model | Alternative Model | Compatibility Level | Key Differences | Recommendation |
| 83SR04C-E | 83SR04C (Early Version) | ⚠️ Software Compatible | Bus response and firmware Rev differences | Check R-number; jumper adjustments may be needed |
| GJR2390200R1411 | GJR2390200R1410 | ✅ Direct Replacement | Minor logic bug fixes in R1411 | Fully interchangeable |
| 83SR04C-E | 83SR04B | ❌ Hardware Incompatible | Different logic density and pin-out | Do not use; risks backplane short circuit |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check | Action |
| “ST” LED is Solid Red | Module Self-test Failure | ✅ High | Reseat module; check for burnt traces on the edge connector | Replace module if Red LED persists after reseat |
| Command Sent, No Action | Channel Fuse Blown | ⚠️ Medium | Measure 24 V at the terminal block for that specific output | Check rack-base fuses; the module itself may be fine |
| All Rack I/O Failing | Rack Power/Bus Fault | ❌ Low | Check if other modules in the same rack show errors | Inspect power supply modules or bus couplers |
| Intermittent Logic Errors | Address Conflict / Loose DIPs | ⚠️ Medium | Check if DIP switches on the side have shifted | Ensure DIP switches match the old module exactly |
Field Engineer’s Insight:
Never “hot-swap” P13 modules without checking the rack manual first. More importantly, the GJR2390200R1411 uses side-mounted DIP switches to define its logic address. If you don’t copy the switch positions from the old card to the new one, the system simply won’t recognize the I/O. Take a photo of the side of the old module before you send it to the shop!
If your revision number doesn’t match exactly, send me a photo of the side label, and I will check our cross-reference database for compatibility.
