Description
- Model: 83SR06B-E (GJR2395400R1210)
- Brand: ABB (Switzerland/Germany)
- Series: Procontrol P13 (Power Generation Control)
- Core Function: Binary control and signal processing for turbine/boiler systems
- Type: Binary Control Module / I/O Module
- Key Specs: 24 V DC Logic P13 Bus Compatible Multi-channel Binary Input
Key Technical Specifications
- Input Voltage: 24 V DC (System Power)
- Internal Current Consumption: Max 250 mA
- Signal Type: Binary (Digital) signals for process control
- Channel Count: 16-channel processing capability (Configuration dependent)
- Bus Interface: Procontrol P13 local bus connection
- Logic Levels: Standard ABB P13 logic thresholds
- Indicators: Front-panel LEDs for Status and Fault (ST, FA)
- Installation: Subrack mounting (Standard P13 rack system)
- Operating Temperature: 0 to +70°C (Extended industrial grade)
- Storage Temperature: -40 to +85°C
Installation & Configuration Guide
Phase 1: Pre-Installation (Estimated time: 10 minutes)
⚠️ Safety Protocol:
- This module is typically part of a Power Plant DCS. Ensure the system is in “Local” or “Manual” mode before pulling any cards.
- Confirm that the specific control loop handled by this 83SR06B-E is bypassed or safe to interrupt.
- Use a grounded anti-static wrist strap. P13 modules are highly sensitive to ESD (Electrostatic Discharge).
Phase 2: Removal (Estimated time: 5 minutes)
- Observe LEDs: Record the state of the LEDs on the faulty module before removal. If “FA” (Fault) is red, the module is likely dead.
- Loosen Fasteners: Use a small flat-head screwdriver to loosen the top and bottom captive screws.
- Ejection: Gently pull the extraction levers (if equipped) or use a steady pull on the handle to disengage the module from the backplane connector.
Phase 3: Configuration (Estimated time: 15 minutes)
- Jumper Mapping: This is the most critical step. Look at the side of the 83SR06B-E. There are often jumper fields (X1, X2, etc.) or DIP switches used to set the module address and function codes.
- Comparison: Set the jumpers on the new GJR2395400R1210 to exactly match the ones on the failed unit. I’ve seen many engineers skip this and spend hours wondering why the station won’t recognize the new card.
- Firmware Check: Verify the version printed on the EPROM chip (e.g., V4.x). It should be compatible with your current P13 bus master.
Phase 4: Commissioning (Estimated time: 20 minutes)
- Insertion: Slide the module into the subrack guides. Push firmly but smoothly until the connector seats.
- Initialization: Upon power-up, the module will undergo a self-test. The “ST” LED should stabilize.
- Bus Status: Check the P13 operator station to ensure the module is “Online” and showing no communication errors.
- I/O Verification: Force a test signal (if safe) to confirm the module is correctly reading field inputs.

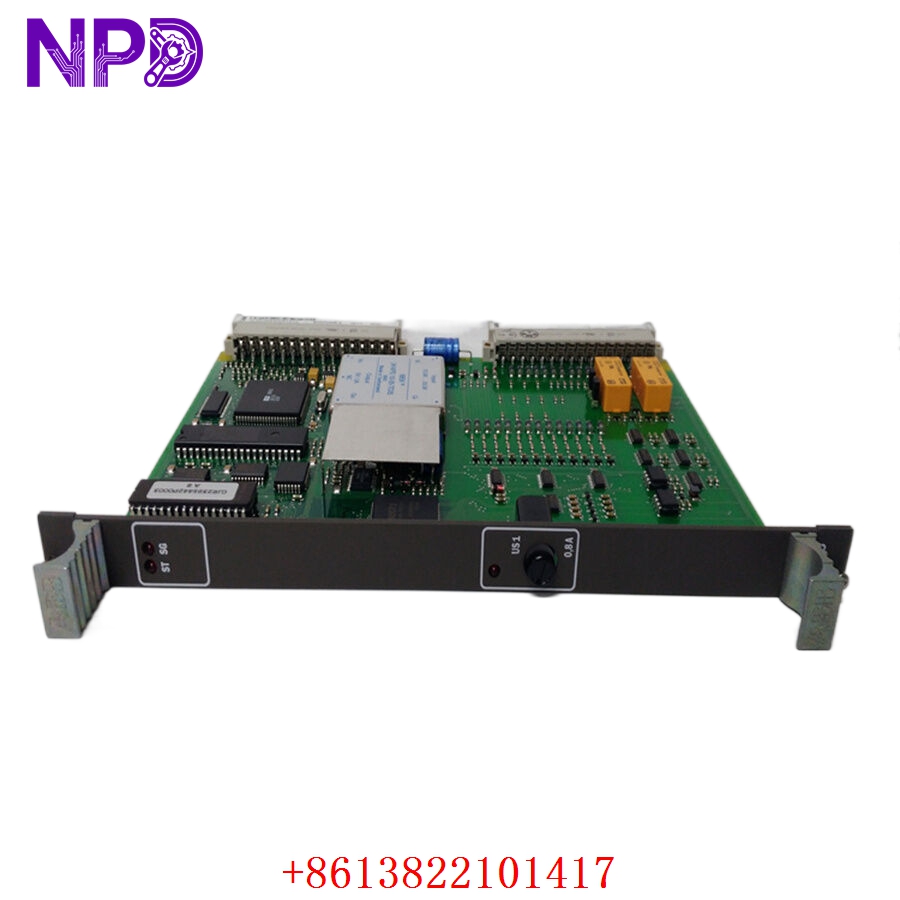

ABB 83SR06B-E GJR2395400R1210

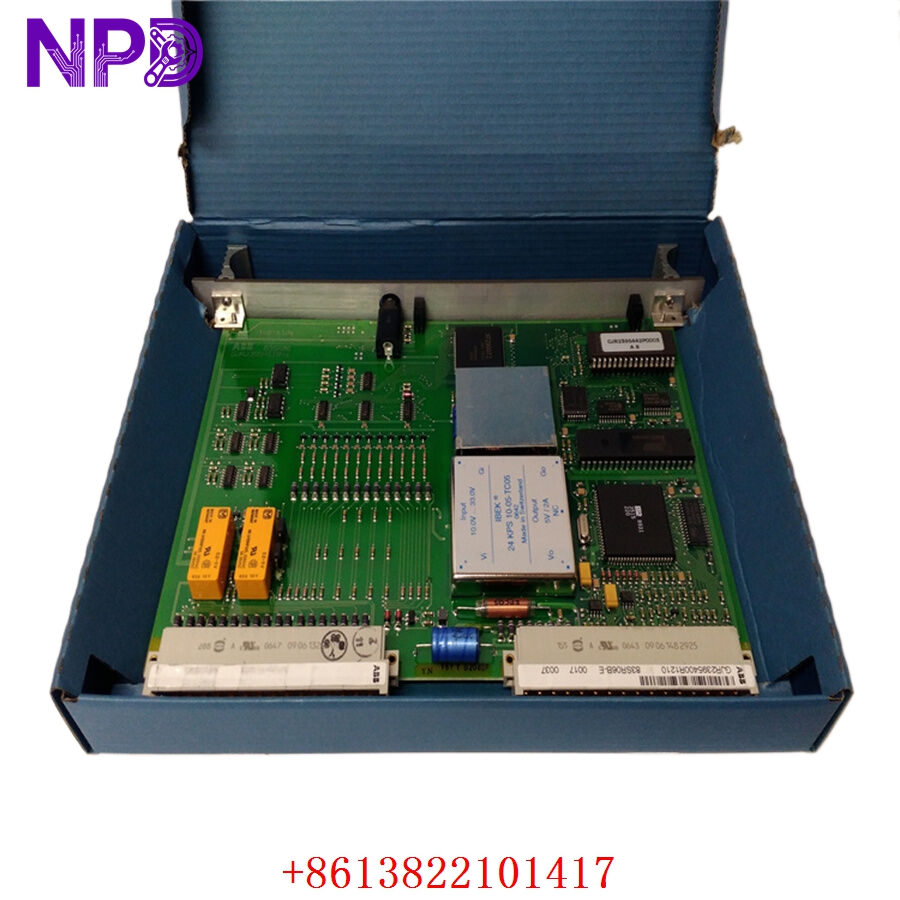

ABB 83SR06B-E GJR2395400R1210

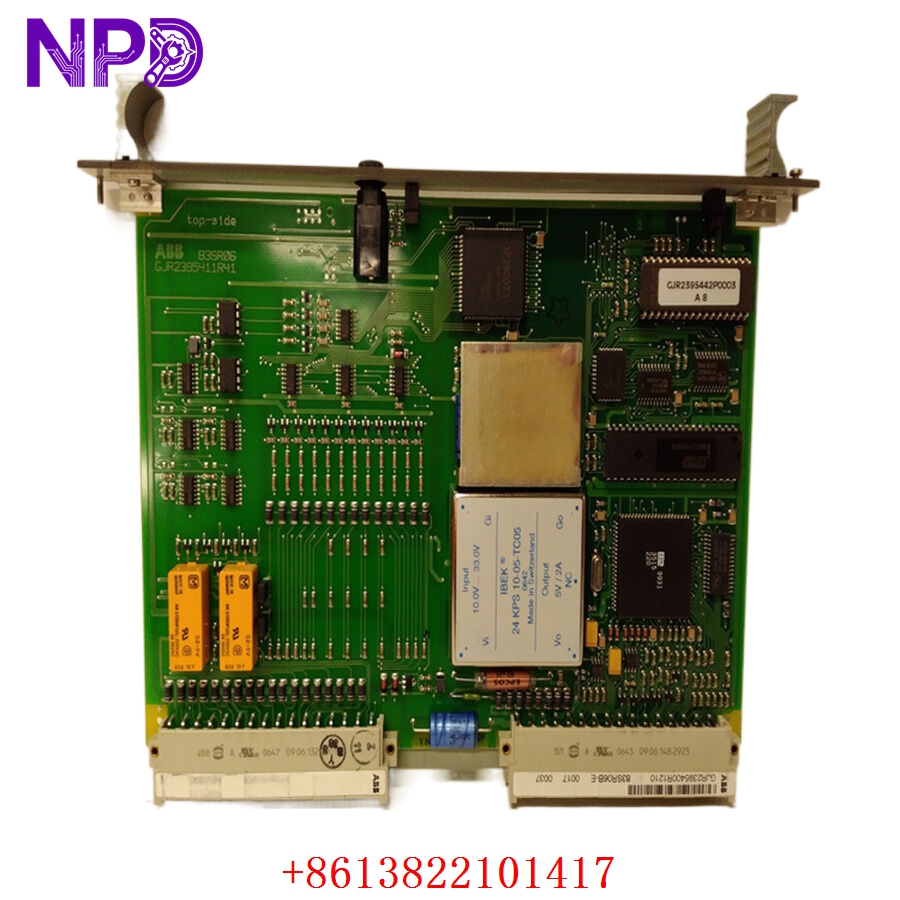

ABB 83SR06B-E GJR2395400R1210
ABB 83SR06B-E GJR2395400R1210
Customer Cases & Industry Applications
Case 1: Fossil Fuel Plant Emergency Maintenance
Situation: A 600MW coal-fired power plant in Northern China experienced a “Loss of Binary Signal” alarm on a critical cooling water pump. The 83SR06B-E module in the DCS rack had failed due to a localized power surge. Task: The pump was running on a failsafe bypass, but the plant could not legally operate for more than 48 hours without the automated safety interlocks active. ABB quoted an “extended lead time” because the P13 series is in the “Classic/Obsolete” lifecycle phase. Action: We supplied a New Surplus GJR2395400R1210 from our inventory. Since we keep these in a humidity-controlled warehouse, the card was pristine despite its production date. We shipped it via same-day air freight. Result: The plant technicians replaced the card within 2 hours of arrival. Total downtime for the automated loop was less than 18 hours.
Case 2: Extending the Life of a Hydropower Station
Situation: A hydropower facility in the Pacific Northwest was planned for a full DCS upgrade in 2028. However, three 83SR06B-E modules failed in 2024, threatening to pull the timeline forward at a cost of $2 million in unbudgeted capital. Task: Secure reliable, non-refurbished spares to bridge the 4-year gap. Action: The customer avoided “refurbished” cards from auction sites due to the risk of internal component aging. We provided two units of GJR2395400R1210 with certified test reports. Result: The facility resumed full operations and successfully delayed the capital-intensive upgrade, maintaining their ROI targets for the existing system.
Frequently Asked Questions (FAQ)
Q: Is the 83SR06B-E interchangeable with the 83SR04 or 83SR07? A: No. While they belong to the same Procontrol family, the internal logic and channel mapping differ. Replacing an 83SR06B-E with a different variant will cause bus errors or, worse, incorrect control actions. Always stick to the exact GJR number.
Q: Why should I buy “New Surplus” instead of a cheaper repaired unit? A: In power plant environments, reliability is everything. A repaired unit often has “patch-work” fixes—one capacitor is replaced, but the others are still 20 years old. Our New Surplus units have zero runtime, meaning the components haven’t been subjected to decades of heat and electrical stress.
Q: Do I need special software to configure this module? A: Most 83SR series modules are “hard-coded” via jumpers for their basic address and function. However, the high-level logic resides in the bus master. As long as you replicate the jumper settings from your old card, it should be “Plug-and-Play.”
Q: How do you test these obsolete modules? A: We use a dedicated ABB Procontrol P13 test rack. We power the module, verify the 5V and 24V internal rails, and perform a loopback test on the binary channels to ensure the optocouplers are firing correctly. We can provide a video of your specific module’s LEDs during testing upon request.
