Description

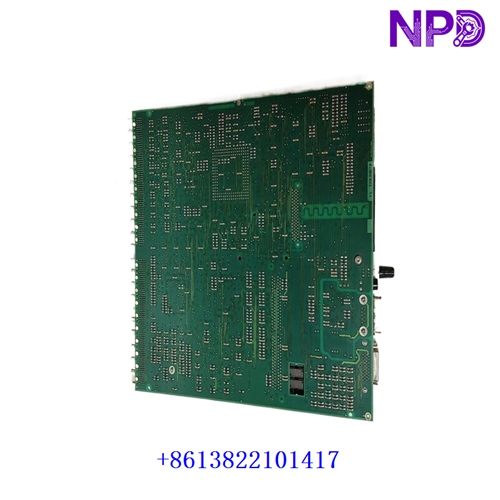

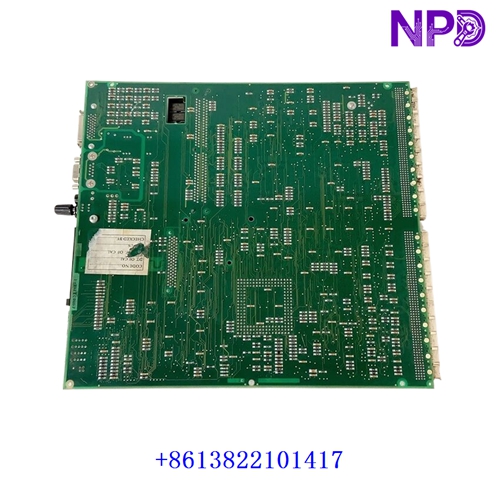

The ABB PM511V16 (Catalog Part Number: 3BSE011181R1) is a high-performance Processor Module engineered for the ABB Advant OCS control system architecture (specifically supporting Advant Controller 400 / AC400 series). It serves as a core processing unit designed to execute critical automation tasks, real-time control logic, and system diagnostics in demanding industrial manufacturing and process environments.
| Parameter | Specification |
| Brand / Manufacturer | ABB |
| Model / Type Designation | PM511V16 |
| Part / Ordering Code | 3BSE011181R1 |
| Product Type | Central Processor Module (CPU) |
| System Family | ABB Advant OCS / Advant Controller 400 Series |
| Internal Memory | 16 MB internal system memory |
| Common Application | Process Control & Process Shutdown (PSD) Safety Systems |
| Physical Dimensions | Approx. 274.5 mm × 270 mm × 27 mm (or modular rack footprint) |
| Approximate Weight | ~0.8 kg |
| Product Status | Industrial Automation Spare Part / Legacy System Support |
First-Run Inspection Checklist
- ☑ Physical & Faceplate Integrity
Inspect the module housing, front diagnostic indicators, locking levers, and rear multi-pin connector headers for any transit damage, bending, or physical distortion.
- ☑ Rack Slot Alignment
Ensure that the target rack slot inside the Advant controller chassis is clean, unobstructed, and correctly aligned to prevent backplane pin damage during insertion.
- ☑ Firmware & Memory Backup Check
Verify that system configuration parameters and application files are correctly backed up via engineering tools before initializing the processor module in a live environment.
Routine Maintenance & Servicing
- 🛠 Environmental and Thermal Management
Ensure that industrial control cabinets housing the Advant controller maintain stable operating temperatures and remain free of excessive dust, humidity, or corrosive agents.
- 🔌 Diagnostic Buffer Monitoring
Periodically check controller error logs and diagnostic status indicators through the engineering workstation to catch memory, communication, or bus anomalies early.
Troubleshooting & Common Issues
- ⚠️ Processor Fault / Watchdog Error
If the module indicates a major fault or watchdog trip, verify backplane seating depth, check input power stability, and review system diagnostic codes via the control terminal.
- ⚠️ Communication Link Interruptions
If the processor loses communication with local or remote I/O nodes, inspect network cable connections, bus terminators, and interface module statuses.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, rack insertion, configuration, and module replacements must be executed exclusively by certified automation engineers familiar with ABB Advant OCS architecture.
- ⚠️ Power Isolation
Always isolate and lock out system rack power before inserting or extracting the processor module to prevent electrical arcing, data corruption, or unexpected process shutdowns.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary role of the PM511V16 module?
A: It functions as the core processor module for ABB Advant control systems, running user application logic, handling data processing, and coordinating real-time communication across connected I/O nodes.
- ❓ Q2: What systems typically utilize this processor?
A: It is deployed across heavy industrial sectors utilizing the ABB Advant Controller 400 platform, including continuous process plants and Process Shutdown (PSD) safety environments.
