Description

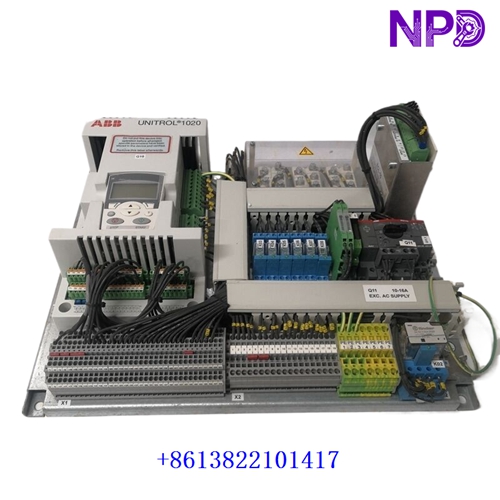

The ABB AFP9075355, identified with part number 3BHS537443, is associated with the ABB UNITROL 1020 digital excitation and automatic voltage regulation platform. It is used for generator excitation control, voltage regulation, reactive power management, and generator protection functions.
This unit is designed for synchronous generator applications where stable excitation and accurate voltage control are required. The UNITROL 1020 platform provides digital control, monitoring, diagnostics, and communication functions for power-generation systems.
🔧 Key Features
• ABB UNITROL 1020 excitation control platform
• Automatic Voltage Regulator (AVR) function
• Digital generator excitation control
• Generator voltage and field-current regulation
• Automatic and manual operating modes
• Integrated monitoring and diagnostic functions
• Industrial power-generation application
• Communication with plant control systems
• Compact control-system architecture
📋 Product Datasheet
• Brand: ABB
• Model: AFP9075355
• Part Number: 3BHS537443
• Associated System: ABB UNITROL 1020
• Product Type: Digital Excitation / Voltage Regulator Module
• Main Function: Automatic Voltage Regulation
• Application: Synchronous Generator Excitation
• Input Supply: Approx. 90–264 VAC / 110–300 VDC*
• Field Current: Application dependent, up to approx. 10 A DC*
• Field Voltage: Up to approx. 250 V DC*
• Communication: IEC 61850 / Modbus / PROFIBUS, configuration dependent*
• Control Accuracy: Approx. ±0.25% of setpoint*
• Operating Temperature: Approx. -40 to +70 °C*
• Protection Rating: Approx. IP20, cabinet installation*
• Dimensions: Approx. 320 × 200 × 160 mm*
• Weight: Approx. 4.2 kg*
• Mounting: Control cabinet / excitation system installation
• Power Consumption: System configuration dependent
• Firmware / Configuration: UNS0119A-Z, V1*
• Country of Origin: Switzerland / production version dependent
🏭 Typical Applications
The ABB AFP9075355 / 3BHS537443 is intended for generator excitation and voltage-control applications such as:
• Hydroelectric generators
• Steam turbine generators
• Gas turbine generators
• Industrial power-generation systems
• Synchronous generator plants
• Power plant excitation systems
⚡ Functional Description
The module operates within the UNITROL 1020 excitation system to regulate generator terminal voltage and manage excitation output. It processes generator feedback signals and adjusts excitation according to the configured control mode.
Typical functions include automatic voltage regulation, manual excitation control, reactive power control, monitoring, limit functions, and system diagnostics. The UNITROL 1020 platform is intended for medium-sized synchronous generator applications.
🔌 Configuration & Commissioning
Basic commissioning procedure:
• Install the unit in the designated excitation control cabinet
• Verify the AFP9075355 / 3BHS537443 identification
• Check auxiliary power connections
• Connect generator voltage and current feedback circuits
• Connect excitation control wiring
• Configure AVR parameters
• Set communication parameters when required
• Verify automatic and manual control modes
During commissioning, check generator feedback values, excitation output, alarms, limiters, and communication status before placing the generator into normal operation.
🛠️ Replacement Notes
Before replacing an existing unit, verify:
• Complete part number AFP9075355
• ABB reference 3BHS537443
• UNITROL 1020 system compatibility
• Hardware revision
• Firmware/configuration version
• Existing excitation parameters
• Terminal and connector arrangement
After installation:
• Check auxiliary power
• Confirm controller diagnostics
• Verify generator measurement signals
• Test AVR response
• Verify excitation output
• Check protection and limiter functions
• Confirm communication with the plant control system
📦 Ordering Information

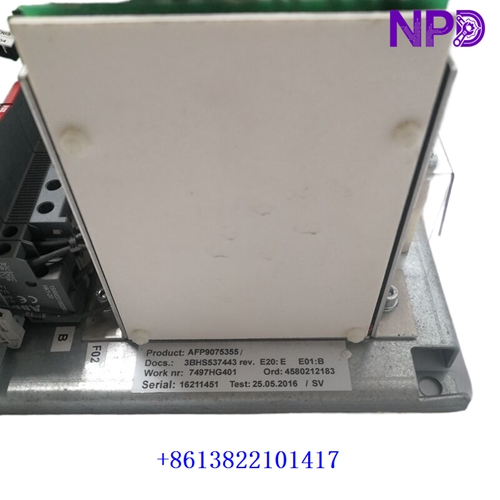

The correct identification is:
ABB AFP9075355 3BHS537443 UNITROL 1020 Automatic Voltage Regulator / Excitation Control Module
Current technical references associate AFP9075355 / 3BHS537443 with the ABB UNITROL 1020 excitation and voltage-regulation system.
Electrical ratings, dimensions, weight, and firmware information marked with an asterisk are reference values. Verify the exact nameplate, hardware revision, and UNITROL configuration before engineering replacement or installation.
