Description
The ABB ASE2UDC920AE01 (Part number 3BHB022793R0001) is a critical control and interface board designed for high-power rectifier systems, typically used within the PCS6000 or ACS6000 drive families. It serves as a bridge between the central control unit and the power conversion hardware.
Product Parameters (Datasheet)
- Model Number: ASE2UDC920AE01
- Part Number: 3BHB022793R0001
- Device Category: Control Interface / Drive Logic PCA
- Compatibility: ABB PCS6000 Power Conversion Systems, ACS6000 Medium Voltage Drives
- Fiber Optic Ports: Integrated high-speed optical links for firing pulse transmission and feedback
- Supply Voltage: 24V DC (Internal logic supply)
- Communication: Proprietary ABB high-speed internal bus (DDCS or similar protocol)
- Isolation: High-voltage galvanic isolation via fiber optics to ensure operator and control-side safety

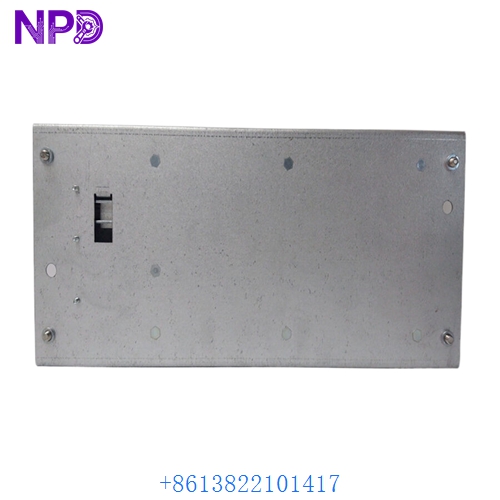

ABB ASE2UDC920AE01 3BHB022793R0001

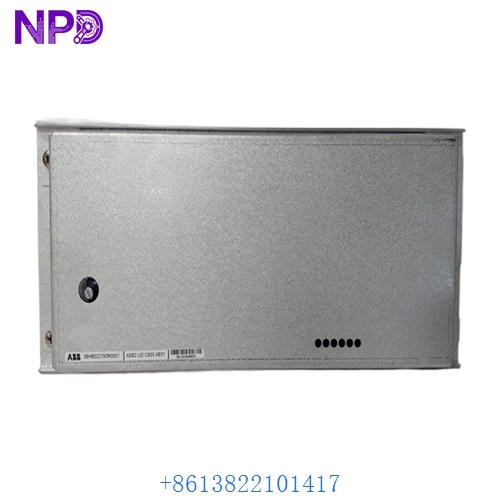

ABB ASE2UDC920AE01 3BHB022793R0001
ABB ASE2UDC920AE01 3BHB022793R0001
Country of Origin
This precision power electronics component is manufactured by ABB in Switzerland (Turgi facility), where ABB develops its world-class medium-voltage power conversion and drive technology.
Application Fields
The ASE2UDC920AE01 is found in massive power-handling infrastructures:
- Grid Stabilization: Part of the PCS6000 converters used in STATCOM and battery energy storage systems (BESS).
- Metal Industry: Controlling the massive rectifiers used in aluminum smelting and electric arc furnaces.
- Marine Propulsion: Integrated into the ACS6000 drives powering large cruise ships and LNG carriers.
- Oil & Gas: Controlling large compressors and pumps in pipeline and LNG processing facilities.
Product Usage Instructions
- ESD Protection: This board is highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the unit or opening the control cabinet.
- Fiber Optic Handling: Inspect all fiber optic cables for dust or damage. Clean the connectors with lint-free wipes and alcohol before inserting them into the board’s optical ports. Avoid sharp bends in the fiber.
- Mounting: Install the board into the designated sub-rack or mounting plate. Ensure all standoffs are secure to provide proper grounding and mechanical stability.
- Firmware Verification: In many cases, these boards require specific firmware synchronization with the main controller. Verify compatibility versions using the ABB DriveWindow or similar engineering tool.
- Cooling: Ensure the drive’s air-cooling or liquid-cooling system is operational, as excessive heat in the cabinet can lead to premature failure of the logic components on the board.
Product Technical Description
The ASE2UDC920AE01 functions as a gate driver interface and signal processing hub. Technically, it receives complex PWM (Pulse Width Modulation) commands from the main control computer via fiber optics and translates these into electrical firing signals for the IGCT (Integrated Gate-Commutated Thyristor) or IGBT power modules. By using fiber optics for the primary communication path, the board provides total electrical immunity from the massive electromagnetic interference (EMI) generated by the high-current switching occurring in the power stacks. This ensures precise timing and prevents accidental “shoot-through” conditions that could damage the rectifier.
Q&A (Common Questions)
Q: Can I swap a 3BHB022793R0001 with a different revision of the ASE2UDC board? A: No, ABB boards with different part numbers (R-numbers) often have subtle hardware or timing differences. Always match the exact part number for safety-critical power systems.
Q: What do the red LEDs on the board indicate? A: Typically, a solid red LED indicates a “Fault” or “Communication Loss,” while a flashing red LED might indicate a configuration mismatch. Refer to the specific drive service manual for the blink code definitions.
Q: Is this board repairable? A: Due to the high-density surface-mount components and its role in high-voltage safety, ABB typically recommends replacing the entire board rather than attempting component-level repair.
Q: Does this board control the liquid cooling valves? A: Generally, this board focuses on power switching and gate pulses. Cooling logic is usually handled by a separate I/O module (like the AC800PEC or a standard AC800M controller).
Similar Model Recommendations
- ABB 3BHB003154R0101 (Gate Driver Board)
- ABB 3BHB022793R0002 (Alternative revision/variant)
- ABB 3BHB013088R0001 (Communication Interface)
- ABB GVC750BE01 (Related Control Unit)
- ABB 3BHE022293R0101 (Power Supply Module for Control Electronics)
For more information on the ABB ASE2UDC920AE01 3BHB022793R0001 and other medium-voltage drive components, please contact our technical sales team.
