Description
- Model: ABB AV94a (HESG441114R1)
- Brand: ABB (Switzerland/Sweden)
- Series: Advant OCS / UNITROL / 200 Series
- Core Function: Central processing and system control interface
- Product Type: Controller Board / Processor Module
- Key Specs: 32-bit architecture, high-speed system bus interface, 24 V DC logic
- Main Hardware ID: HESG441114R1
- Processor Type: High-performance RISC processor for real-time control
- Backplane Interface: Specialized ABB 200 Series / Advant bus
- Operating Voltage: +5 V, ±15 V DC (Backplane) / 24 V DC (I/O)
- Communication: Supports AF100 (Advant Fieldbus) via modem modules
- Diagnostics: Multi-segment LED display and status LEDs on the front panel
- Mounting: 6U Eurocard format for standard ABB sub-racks
- Compatibility: Integrated with UNITROL P and other high-power excitation systems
ABB AV94a
Application Scenarios & Pain Points
The AV94a is a powerhouse module found in the “classic” era of ABB’s high-power electronics. It is most commonly used as the main controller in UNITROL P excitation systems, where it manages the complex algorithms required for generator voltage regulation. Because it handles the high-speed calculations for the thyristor bridges, a failure in the AV94a doesn’t just trigger an alarm—it typically results in an immediate loss of generator excitation, leading to a full plant trip.
1. Large Generator Excitation (UNITROL P)
Serving as the primary logic solver for voltage regulation in hydro and thermal power plants.
2. Advant OCS Distributed Control
Acting as a high-speed node in large-scale process automation where deterministic response times are required.
3. Power Grid Stability
Utilized in static frequency converters and grid compensation systems to manage power factor and voltage levels.
Case Study: The “Over-Temperature” Processor Failure
Background: A power plant in a desert environment was running a UNITROL P system with an older AV94a board. The cooling fans in the cabinet failed during a summer heatwave, but the system kept running until the internal cabinet temperature reached 65°C.
The Problem: The AV94a began reporting “CPU Checksum Errors.” The heat had caused the solder joints on the main RISC processor to expand and contract, creating micro-fractures. The generator tripped, costing the utility thousands in “lost generation” penalties.
The Solution: We supplied a certified HESG441114R1 (AV94a) from our stock. Before shipping, we performed a 48-hour “burn-in” test in our ABB simulation rack at elevated temperatures to ensure the unit was thermally stable.
The Result: The generator returned to the grid 48 hours after our board arrived.
- Avoided Loss: Prevented an extended outage during peak pricing season, saving an estimated $110,000.
- Takeaway: If your AV94a is in a high-heat environment, proactively checking your cabinet fans is the best insurance policy you can buy.

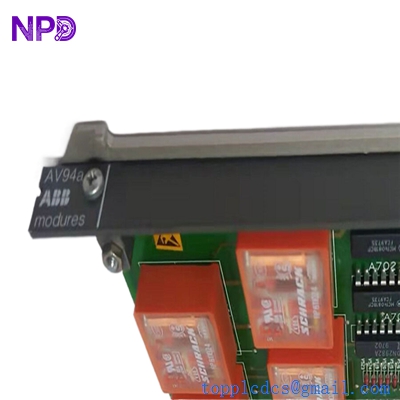

ABB AV94a
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Workload |
| AV94 | AV94a | ✅ Direct | AV94a is the improved revision | Plug & Play |
| AV91 | AV94a | ❌ Incompatible | Completely different logic density | System redesign |
| HESG441114R1 | AV94a | ✅ Direct | This is the official part number | Plug & Play |
Engineer’s Advice: The “a” suffix in AV94a denotes a hardware revision that addressed timing issues in the original AV94. If you have an original AV94, you can upgrade to the “a” version without any software changes. However, check your EPROMs. If your logic is stored on socketed chips, you must move them to the new board.
Troubleshooting Quick Reference
| Symptom | Possible Cause | AV94a Related? | Quick Check | Action |
| “RUN” LED Off | Processor Stalled | ✅ High | Check backplane voltages (+5V) | Replace Module |
| “ERR” LED Red | Memory Corruption | ✅ High | Check EPROM seating | Re-seat or replace EPROMs |
| “FLT” LED On | Bus Failure | ✅ High | Check for other failed cards in rack | Isolate faulty module |
| Diagnostic Code “E1” | Startup Error | ✅ High | Verify power sequence | Check rack power supply |
Expert Maintenance Tips:
- EPROM Transfer: ❗ Critical! The AV94a uses site-specific firmware stored on socketed EPROM chips (usually with white labels). If you don’t move these from your old board to the new one, the board will be “blank” and won’t control your system. Use an ESD-safe chip puller.
- Backplane Pins: The AV94a has high-density DIN connectors. If the board is hard to push in, do not force it. You likely have a bent pin on the backplane or the module.
- Static Shielding: These boards use sensitive CMOS logic. Always keep them in anti-static bags until the moment they are being installed in a grounded rack.
