Description
The ABB BCU-02 (Part Number 3AUA0000110429) is a high-performance Control Unit used primarily in ABB’s ACS880 series of premium industrial drives. It serves as the “brain” of the drive system, managing all power electronics switching, motor control algorithms, and external communications.
Product Parameters (Datasheet)
- Model Number: BCU-02
- Part Number: 3AUA0000110429
- Series: ACS880 Drive Modules
- Input Voltage: 24 VDC (Nominal, auxiliary supply)
- Processor Type: High-speed DSP for motor control and FPGA for PWM generation
- Communication Interfaces: * 3x Fiber Optic channels (for DDCS communication to power units)
- Integrated Ethernet port (for PC tool connection/Modbus TCP)
- Multiple slots for Fieldbus adapters (F-series)
- Memory: Removable ZMU-02 memory unit (contains firmware and parameters)
- Digital I/O: Typically 6x DI, 2x DI/O, 3x Relay outputs (standard ACS880 configuration)
- Analog I/O: 2x AI, 2x AO
- Mounting: Built-in to the drive module or separate wall-mounting via FEA-03 adapter

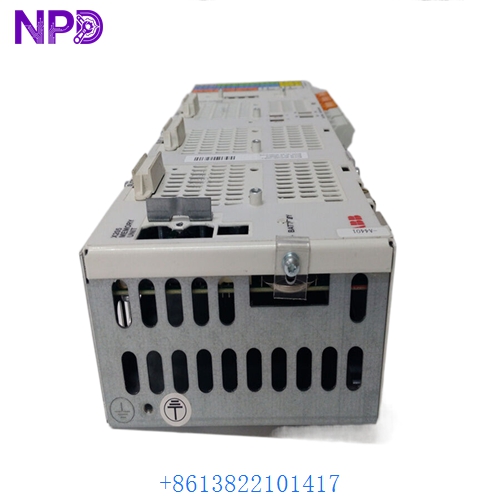

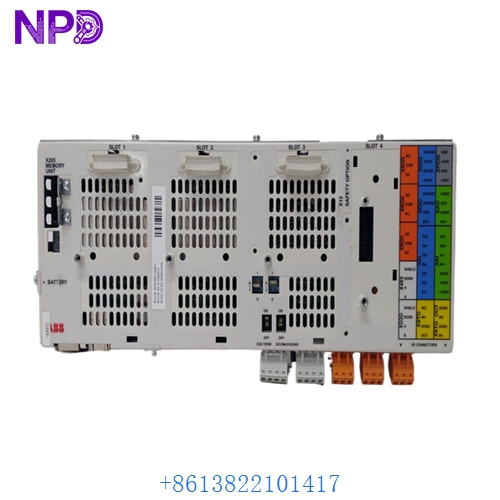

ABB BCU-02 3AUA0000110429
ABB BCU-02 3AUA0000110429
ABB BCU-02 3AUA0000110429
Country of Origin
This control unit is engineered and manufactured by ABB in Finland or Estonia, adhering to strict European standards for industrial automation.
Application Fields
The BCU-02 is the central control component in large-scale power applications:
- Heavy Industry: Controlling high-power motors in cement kilns, mining crushers, and steel rolling mills.
- Oil & Gas: Managing gas compressors and large centrifugal pumps.
- Marine & Offshore: Controlling thrusters, winches, and propulsion systems on vessels.
- Power Generation: Coordinating converters in wind turbines and hydro-electric plants.
- Pulp & Paper: Synchronizing multiple drive sections in paper machine lines.
Product Usage Instructions
- Installation: The BCU-02 is typically mounted on the frame of the ACS880 drive module. Ensure all fiber optic connectors are clean before insertion to prevent communication “Link Fail” errors.
- Powering Up: Supply 24 VDC to the auxiliary power terminals. The unit will initialize and perform a self-test of the fiber optic links to the inverter modules.
- Firmware/Parameters: Ensure the ZMU-02 memory unit is inserted into the card. This unit stores the specific drive firmware and the user-defined parameter set.
- Commissioning: Use the Drive Composer PC tool connected via the front panel or the integrated Ethernet port to set motor data and control logic.
- Fiber Optic Mapping: In multi-inverter systems (Parallel-connected units), ensure the fiber optic cables are connected to the correct ports (V1T/V1R, etc.) to match the software configuration.
Product Technical Description
Technically, the BCU-02 is an advanced controller capable of Direct Torque Control (DTC). It calculates the optimal switching pattern for the inverter’s IGBTs every few microseconds. Unlike simpler controllers, the BCU-02 is designed for “Parallel-connected” power units, meaning one BCU-02 can manage multiple inverter modules simultaneously to achieve very high power outputs (up to several Megawatts). It features advanced diagnostics, including a “Flight Recorder” function that logs drive data leading up to a fault.
Q&A (Common Questions)
Q: Can I swap a BCU-01 with a BCU-02? A: No. The BCU-01 is designed for single-inverter modules, while the BCU-02 is specifically built for systems requiring parallel power units or higher processing overhead.
Q: What does a red “FAULT” LED on the BCU-02 indicate? A: A red LED usually signifies a hardware failure within the control unit or a critical communication loss with the power units (Fiber optic link failure).
Q: Does the BCU-02 store the drive parameters? A: No, the parameters and firmware are stored on the removable ZMU-02 memory unit. If you replace the BCU-02 hardware, moving the ZMU-02 to the new unit allows the drive to resume operation without reprogramming.
Q: Can I connect the BCU-02 directly to a PLC via Profibus? A: Yes, but it requires an optional Fieldbus adapter (e.g., FPBA-01) plugged into one of its expansion slots.
Similar Model Recommendations
- ABB BCU-12 (Updated variant)
- ABB BCU-01 (Single-module control unit)
- ABB ZMU-02 (Essential Memory Unit for BCU-02)
- ABB ZCON-11 (Control Board for smaller ACS880 frames)
- ABB FEA-03 (F-series extension adapter)
For technical support or to procure the ABB BCU-02, please contact our drive specialists.
