Description
The ABB BCU-12 (Part Number: 3AUA0000110430) is a specialized Control Unit designed for the ACS880 series of high-power industrial drives. It serves as the primary intelligence hub for multi-drive systems and high-power inverter modules, managing complex motor control algorithms and communication interfaces.
Product Parameters (Datasheet)
- Model Number: BCU-12
- Part Number: 3AUA0000110430
- System Compatibility: ABB ACS880 (Multi-drives and High-power modules)
- Supply Voltage: 24 V DC (±10%)
- Current Consumption: Max 2.0 A (Internal) + Load on peripheral outputs
- Processor Architecture: High-speed DSP for real-time motor control
- Slots for Extensions: 3 Optional slots for I/O expansion, fieldbus adapters, and encoder interfaces
- Communication Ports: * XD2D (Drive-to-drive link)
- X9 (Internal fiber optic links to power modules)
- USB (Control panel/PC tool connection)
- Mounting: Cabinet or Frame mounting within the drive enclosure

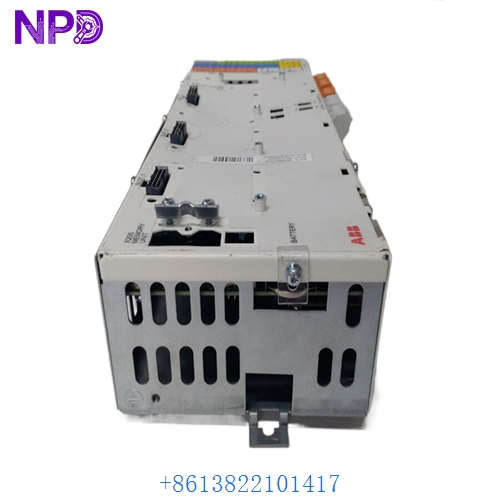

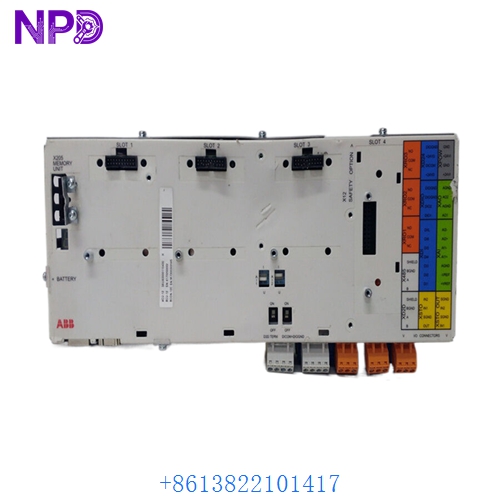

ABB BCU-12 3AUA0000110430
ABB BCU-12 3AUA0000110430
ABB BCU-12 3AUA0000110430
Country of Origin
This drive control component is engineered and manufactured by ABB in Finland, the global center of excellence for ABB’s high-performance variable speed drives.
Application Fields
The BCU-12 is utilized in the most demanding heavy-industry drive applications:
- Mining & Minerals: Controlling high-power conveyors, grinders, and hoists.
- Pulp & Paper: Managing section drives for paper machines requiring precise synchronization.
- Marine & Offshore: Governing propulsion drives and large thrusters on DP-rated vessels.
- Metal Processing: Operating rolling mills and wire drawing machines.
- Water & Wastewater: Controlling high-capacity pump arrays and aeration blowers.
Product Usage Instructions
- Mounting: Install the BCU-12 onto the designated mounting plate within the drive cabinet. Ensure the unit is grounded through its chassis.
- Fiber Optic Connections: Connect the fiber optic cables from the power modules to the “X9” ports. These links are critical for the high-speed firing commands and feedback.
- Powering: Supply a stabilized 24V DC to the power terminals. It is highly recommended to use a redundant power supply for critical applications.
- Firmware Loading: Use the ABB Drive Composer PC tool to load the specific application firmware required for your process (e.g., Primary Control Program or Crane Control Program).
- SD Card: Insert the ZCU memory unit or SD card containing the drive’s parameter settings and identification data.
Product Technical Description
The BCU-12 acts as the “brain” of the ACS880 modular drive system. Unlike standard drives where control is integrated, the BCU-12 is separate from the power stage. It calculates the Direct Torque Control (DTC) variables at microsecond intervals and transmits firing pulses to the power modules via noise-immune fiber optic cables. This separation allows one BCU-12 to control multiple power modules in parallel, providing a scalable solution for multi-megawatt applications. It also manages the functional safety features, including Safe Torque Off (STO), and provides the interface for all fieldbus protocols like Profinet, EtherCAT, and DeviceNet.
Q&A (Common Questions)
Q: What is the difference between a BCU-12 and a BCU-02? A: The BCU-12 generally features more fiber optic channels (typically 12 channels) compared to the BCU-02 (2 channels), allowing it to control a larger number of parallel power modules.
Q: Can I swap a BCU-12 from one drive to another? A: Yes, but you must transfer the memory unit (ZCU) to the new board, as the ZCU contains the specific parameters, firmware, and motor data for that specific machine.
Q: Why are fiber optics used instead of copper for the power module links? A: High-power drives generate significant electromagnetic interference (EMI). Fiber optics provide complete galvanic isolation and immunity to electrical noise, ensuring reliable control signals.
Q: What does a flashing red “Fault” LED on the BCU-12 indicate? A: This typically indicates a critical system fault, such as a loss of communication with the power modules or a firmware error. Diagnostic details can be viewed through the Drive Composer tool.
Similar Model Recommendations
- ABB BCU-02 (2-channel control unit)
- ABB BCU-22 (Higher capacity variant)
- ABB ZCON-11 (Control board component)
- ABB FENA-21 (Ethernet/IP / Profinet adapter)
- ABB ZCU-12 (Related memory unit)
For technical assistance or to request a quote for the ABB BCU-12, please contact our drive systems technical team.
