Description
The ABB CI522A (Part Number: 3BSE018283R1) is a high-performance communication interface module designed to integrate the Advant Fieldbus 100 (AF 100) network with ABB distributed control systems and master controllers. This module serves as a dedicated communication link, enabling high-speed, reliable, and deterministic data exchange between process controllers, I/O clusters, and operator stations. Built specifically to survive demanding industrial automation environments, the CI522A provides seamless fieldbus connectivity, supports redundant network topologies, and ensures continuous process monitoring and control with minimal transmission latency.
Technical Specifications & Datasheet
- Product ID: 3BSE018283R1
- Model Designation: CI522A
- Product Type: Communication Interface Module
- Protocol Support: Advant Fieldbus 100 (AF 100)
- System Compatibility: Advant OCS / S800 I/O / AC 400 Series Controllers
- Dimensions (Width x Height x Depth): 114 mm x 214 mm x 57 mm
- Weight: 0.60 kg (1.32 lbs)
- Country of Origin: Sweden
- Power Consumption: Nominal 5V DC from the subrack backplane
- Network Redundancy: Supported (Dual media channels)

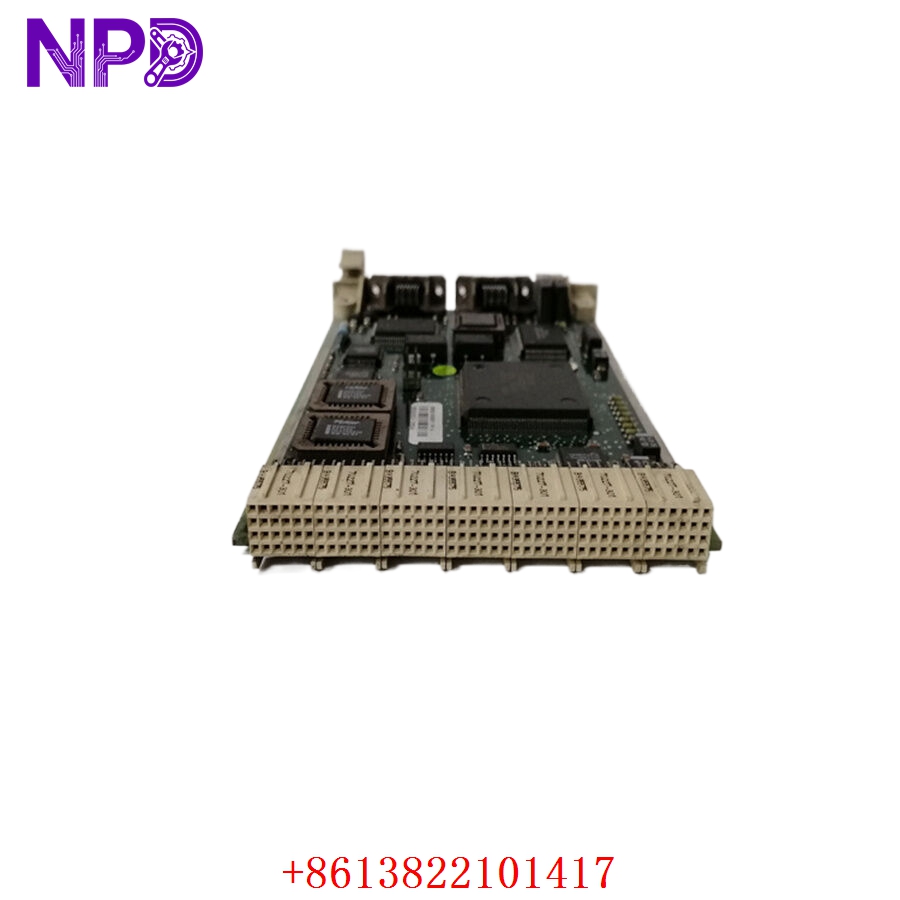

ABB CI522A 3BSE018283R1

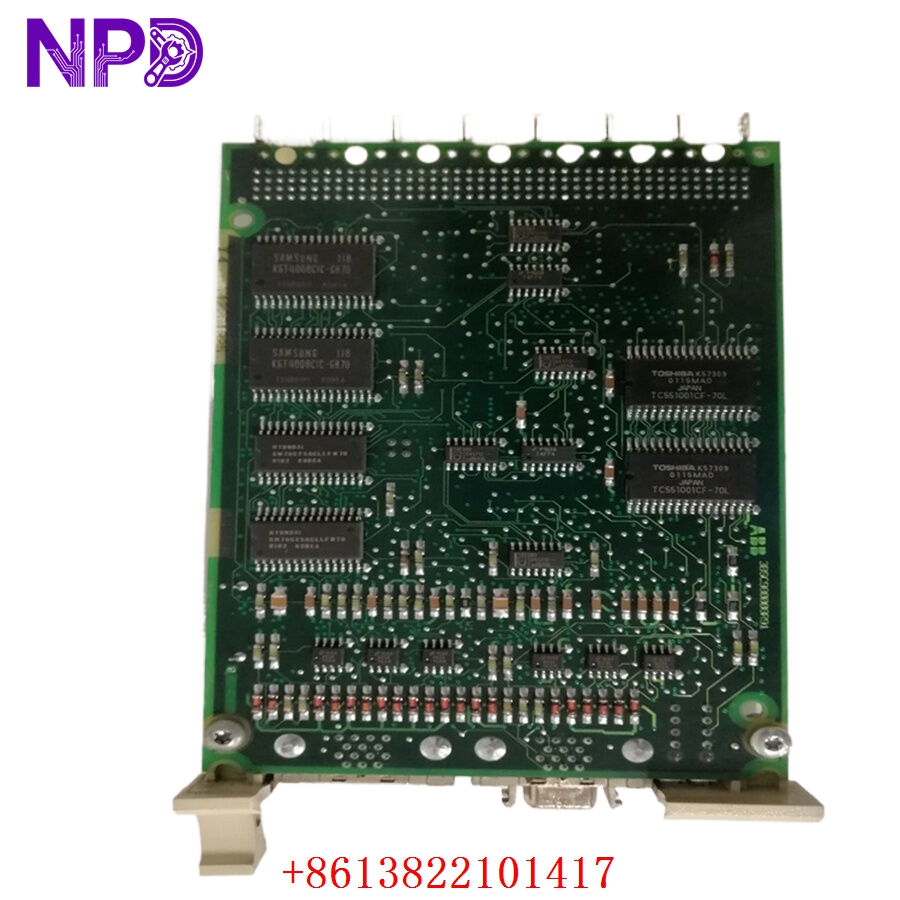

ABB CI522A 3BSE018283R1
ABB CI522A 3BSE018283R1
Target Application Fields
The CI522A communication interface is heavily utilized in complex process automation sectors where robust network communication is vital for plant safety and operational continuity. Key application areas include large petrochemical refineries, chemical processing plants, power generation facilities (including thermal and hydro plants), and pulp and paper mills. It is also deeply integrated into metal processing facilities, water treatment infrastructure, and marine automation networks that rely on the time-critical synchronization of ABB control platforms.
Installation and Usage Instructions
Installation of this module must be executed by personnel trained in industrial automation systems. Prior to insertion, completely isolate the power supply to the subrack or controller chassis. Follow standard anti-static procedures by wearing an approved ESD wrist strap. Align the CI522A card carefully with the tracking guides of the designated slot on the module termination unit (MTU) or backplane. Push the module smoothly until it clicks and locks into place, ensuring the multi-pin connectors are fully seated. Connect the AF 100 twisted-pair or fiber optic media cables to the allocated communication ports on the front panel or baseplate. Once all physical connections are verified, re-energize the system and configure the appropriate node address via the control system software.
Frequently Asked Questions
Q: Does the CI522A module support network media redundancy? A: Yes, the ABB CI522A 3BSE018283R1 features dual channel interfaces to support redundant AF 100 bus lines, ensuring that communication remains uninterrupted even if one physical network cable is compromised.
Q: Can this communication interface card be hot-swapped while the system is energized? A: While certain ABB subracks allow hot-swapping of peripheral units, it is highly recommended to refer to your specific master controller manual. Swapping an active communication module can cause a temporary loss of communication to down-line nodes, potentially triggering safety interlocks or process shutdowns.
Q: How do I verify if the module is communicating properly over the AF 100 network? A: The front panel features dedicated diagnostic LED indicators. A steady green status indicator typically signifies normal internal operation, while flickering transmit/receive (Tx/Rx) LEDs indicate active data exchange across the fieldbus network.
