Description

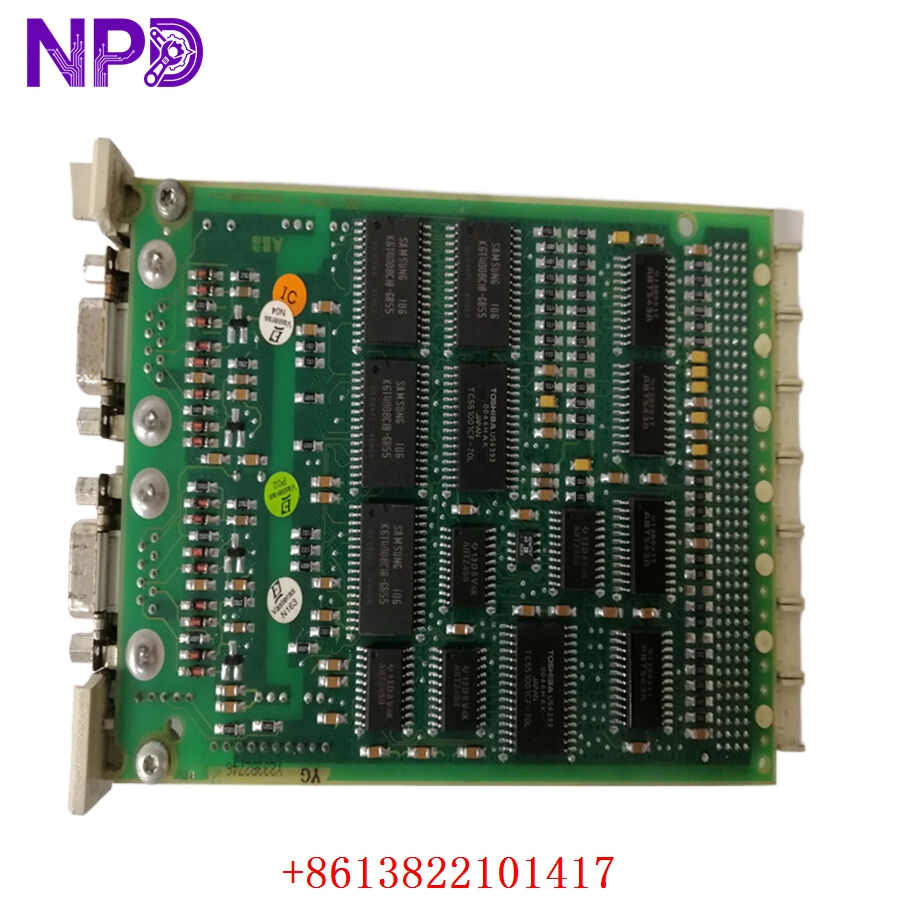

The ABB CI541V1 3BSE014666R1 is a specialized, high-performance communication interface module designed for ABB’s Advant OCS and System 800xA distributed control systems. This module acts as a dedicated hardware bridge that connects the Advant Controller 400 series or S800 I/O systems directly to the Advant Fieldbus 100 (AF100) network. Engineered for high-speed, deterministic process data transfer, it manages real-time transmission of critical control loop values, alarm states, and configuration data, ensuring precise synchronization across plant-wide automation architectures.
Product Datasheet & Specifications
- Manufacturer: ABB
- Part Number: 3BSE014666R1
- Model Designation: CI541V1
- Product Type: Advant Fieldbus 100 (AF100) Communication Interface
- Operating Power Input: 24 V DC internal system supply
- Power Consumption: Approximately 5.5 Watts (typical drawing 230 mA)
- Network Interfaces: Dual redundant twisted-pair (modem-dependent) or fiber-optic AF100 ports
- Approximate Dimensions: 18.5 cm x 4.2 cm x 12.7 cm
- Approximate Weight: 480 grams (0.48 kg)
- Country of Origin: Sweden / Germany
- Certification Standards: CE, UL Listed, CSA, ATEX Zone 2 Compliant
ABB CI541V1 3BSE014666R1
ABB CI541V1 3BSE014666R1
Key Application Fields
- Power Generation Utilities: Manages continuous high-speed data transfer between turbine controllers and main control room panels over the AF100 backbone.
- Petrochemical Refining Enclosures: Handles distributed process loops across separated chemical processing units without transmission delays.
- Pulp and Paper Processing: Syncs multi-sectional variable speed drives and wet-end sensor telemetry into centralized automation hubs.
- Heavy Duty Metallurgical Plants: Operates reliably in high-temperature blast furnace environments to maintain real-time fieldbus communications.
- Distributed Water Systems: Interconnects remote pumping sub-stations and filtration networks back to primary DCS clusters.
Product Instructions & Guidelines
- Antistatic Protocol: Prior to unboxing and handling the CI541V1 card, always wear an earth-grounded electrostatic discharge (ESD) wrist strap to protect internal surface-mount CMOS microchips.
- Hardware Slot Mounting: Ensure the target system carrier or sub-rack housing is fully powered down before insertion. Slide the module straight into its designated guide tracks until the rear multi-pin DIN plug seals securely into the backplane.
- Network Redundancy Setup: Connect both primary and secondary bus lines to the module to enable automatic, seamless failover pathing in case one network leg suffers an accidental cable cut.
- Address and Node Mapping: Adjust the physical address switches or software node assignments to match your existing AF100 network topography before activating the communication bus.
- Diagnostic Checks: Monitor the front panel LEDs (“Run”, “Fault”, and network activity indicators) during initial commissioning. Periodically clear away any dust on the ventilation openings using low-pressure, dry, compressed air.
Q&A – Frequently Asked Questions
- Q: What is the main purpose of the dual network channels on the CI541V1 interface?
- A: They support full AF100 network redundancy. If the primary cable line drops or gets damaged, the module immediately routes data through the secondary line without interrupting process monitoring.
- Q: Does this module require standalone external 24V power wiring on its faceplate?
- A: No, the CI541V1 module draws all its necessary operational power directly from the internal system backplane connections once it is fully seated in the rack carrier slot.
- Q: What is indicated by a solid red “Fault” LED on the front display?
- A: A solid red light indicates that the module has failed its internal power-on self-test (POST), has missing or corrupted configuration settings, or has suffered a hardware component breakdown.
- Q: Is this card backward compatible with older CI541 versions?
- A: Yes, the V1 revision is fully functional within traditional AF100 system configurations and can replace legacy variants, provided that your current system software version supports the module hardware definition profile.
