Description
The ABB CI546, part number 3BSE012545R1, is a high-performance communication interface module designed for the Advant Open Control System (OCS). It serves as a specialized gateway that allows Advant Controllers (such as the AC 410 or AC 450) to communicate with decentralized I/O devices and third-party instruments via the PROFIBUS DP protocol. This module is essential for integrating a wide variety of field devices into the ABB control environment, ensuring high-speed data exchange and robust diagnostic capabilities. The CI546 is built to industrial standards, offering reliability in demanding environments like power plants and chemical processing facilities.
Technical Specifications and Datasheet
Model Number: CI546 Part Number: 3BSE012545R1 Product Family: Advant OCS / MasterView Communication Protocol: PROFIBUS DP (Decentralized Periphery) Interface Type: RS-485 Transmission Rate: 9.6 kbit/s up to 12 Mbit/s (Auto-detection supported) Max Stations: Up to 125 slaves per network Dimensions: 220 mm x 20 mm x 170 mm Weight: 0.58 kg Country of Origin: Sweden / Estonia Power Consumption: 5.5W (Typical) Operating Temperature: 0 to +55 °C Module Slot: Single slot in Advant Controller subrack
Application Fields
The CI546 is primarily utilized in large-scale automation projects that require multi-vendor device integration:
- Power Generation: Connecting motor control centers (MCCs) and protection relays to the main plant controller.
- Oil and Gas: Interfacing with remote valve actuators and flow meters across PROFIBUS networks.
- Pulp and Paper: Managing distributed I/O across expansive production lines for real-time synchronization.
- Water Treatment: Integrating localized pump controllers and chemical dosing systems into a centralized SCADA.

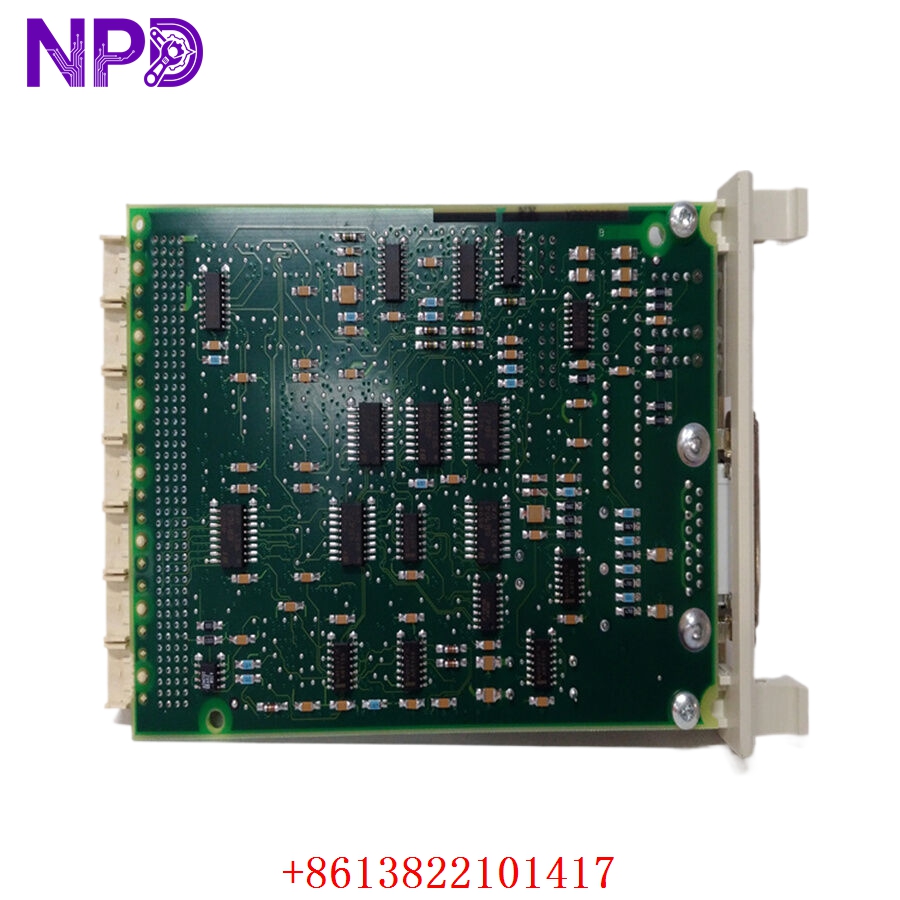

ABB CI546 3BSE012545R1

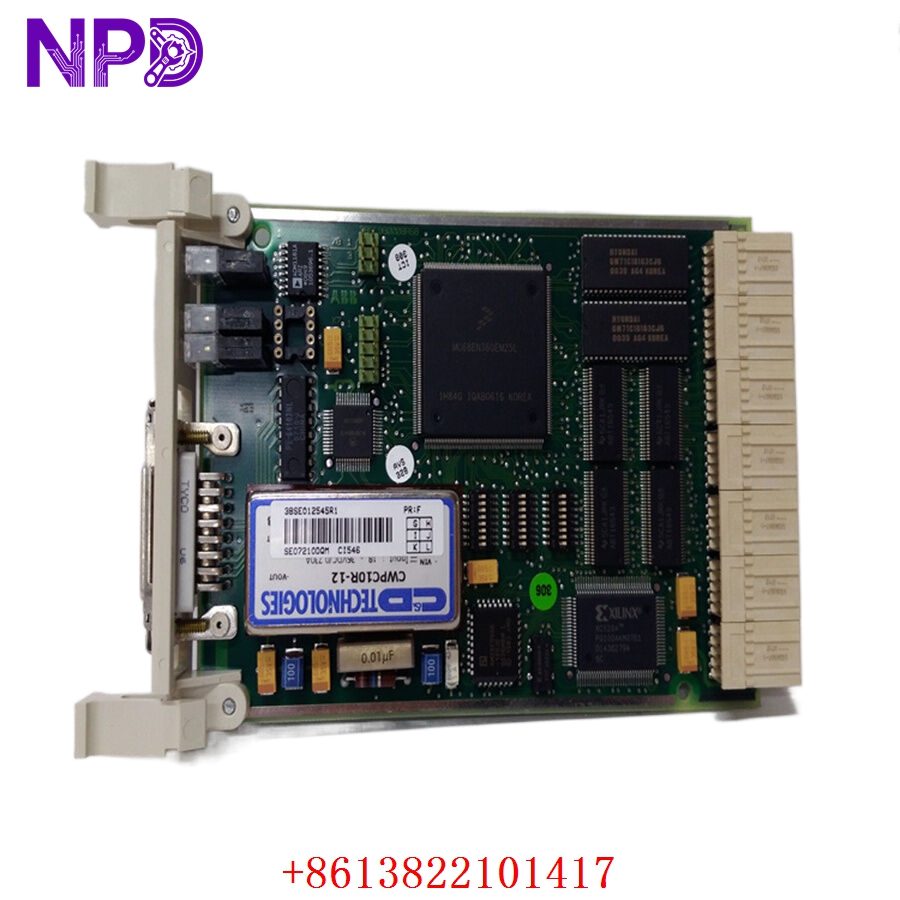

ABB CI546 3BSE012545R1

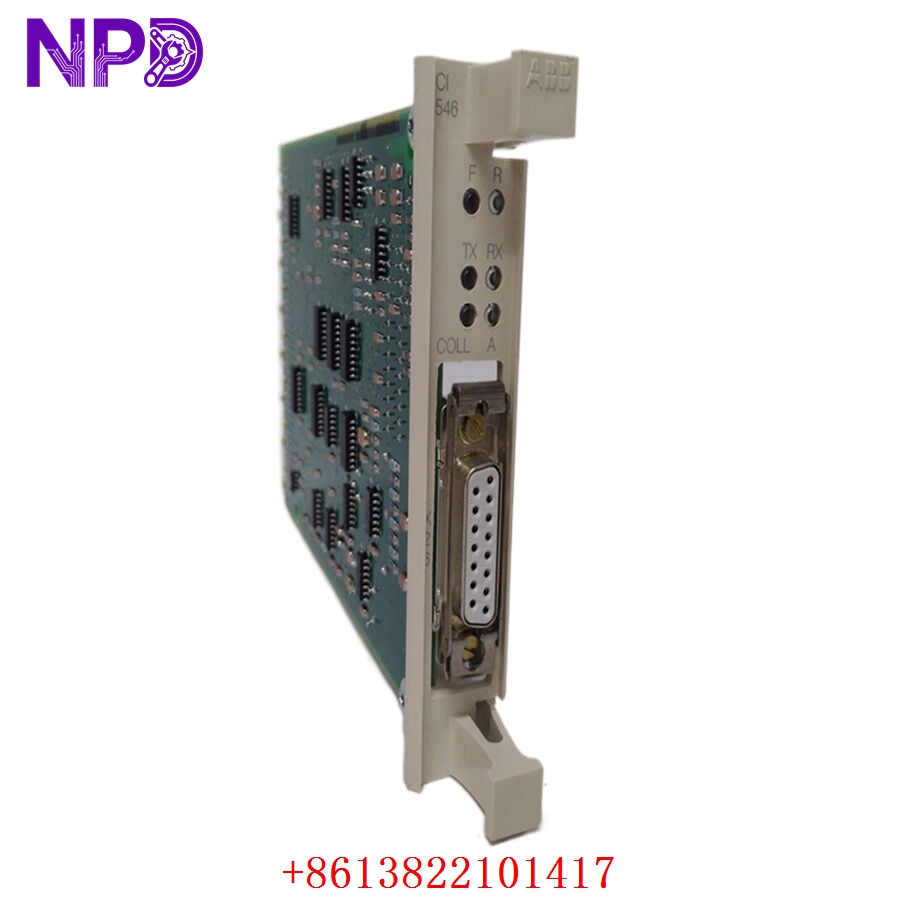

ABB CI546 3BSE012545R1
ABB CI546 3BSE012545R1
Product Instructions and Usage
The CI546 module is designed to be inserted into the module subrack of an Advant Controller. Before installation, the station address and communication parameters must be defined within the ABB engineering tool (e.g., AMPL or Advant Station). The module features a standard 9-pin D-sub connector for the PROFIBUS link; ensure that proper termination resistors are active at the physical ends of the network segments to prevent signal reflection. Status monitoring is available through front-panel LEDs: “RUN” indicates normal operation, while “ERR” or “FAULT” flashes during configuration mismatches or bus failures. Always use shielded twisted-pair cables specifically rated for PROFIBUS DP to maintain signal integrity.
Common Questions and Answers (Q&A)
What is the primary role of the CI546 in an Advant system? It acts as a Master or Slave interface that bridges the ABB proprietary backplane with the open PROFIBUS DP fieldbus standard.
Can I use the CI546 to connect to Siemens S7 PLCs? Yes, as long as the Siemens PLC is configured as a PROFIBUS Slave (or Master with appropriate mapping), the CI546 can facilitate seamless data exchange between the two systems.
Does this module support PROFIBUS PA? The CI546 natively supports PROFIBUS DP (RS-485). To connect to PROFIBUS PA devices (used in hazardous areas), a DP/PA coupler or link is required.
How do I troubleshoot a “Bus Failure” indicated on the module? First, check the physical cabling and the 9-pin D-sub connector. Ensure that the GSD file for each slave device is correctly loaded in the controller configuration and that the baud rate matches across the network.
Is the 3BSE012545R1 hot-swappable? While many ABB modules support removal under power, it is highly recommended to follow specific system safety procedures, as losing the communication link can cause the controller to enter a fail-safe state.
