Description

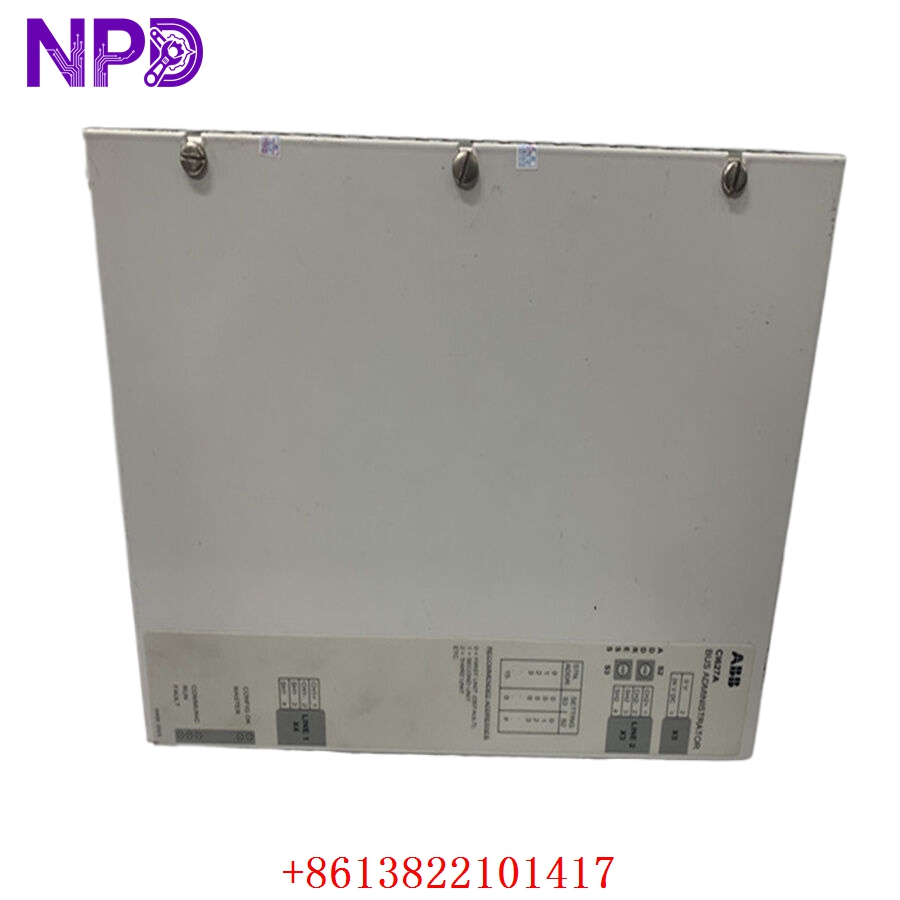

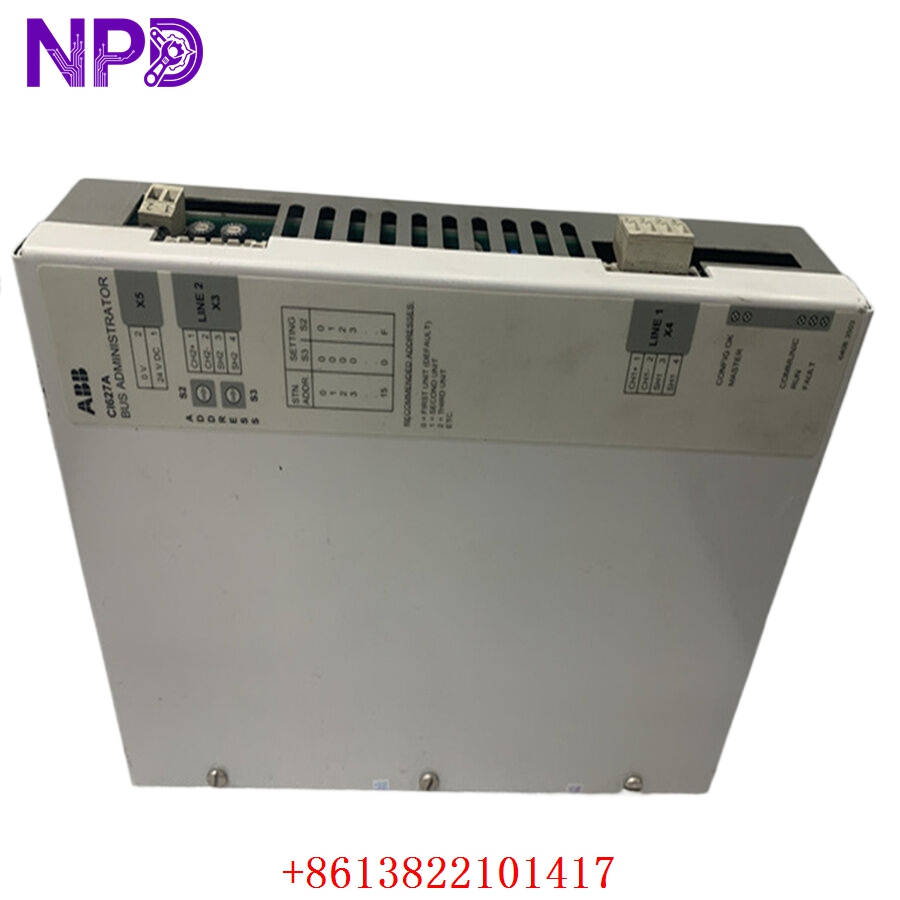

Model: CI627A
· Brand: ABB (Industrial Automation)
· Series: Advant Controller / MasterPiece Series
· Core Function: ⚙️ Provides high-speed communication link between controllers and remote I/O subsystems
· Product Type: 📟 Communication Interface Module
· Key Specs: 🛠️ Multi-channel link, high-speed data transfer, fault-tolerant design
- Communication Protocol: ABB MasterBus / MB300 link compatibility
- Data Rate: High-speed synchronous transmission for process data
- Isolation: Galvanic isolation on communication ports
- Diagnostic Features: Front-panel status indicators for link integrity and data health
- Mounting: Standard Advant controller rack-mounted module
- Power Supply: Powered directly from the system rack backplane
- Environment: Conformal coated for harsh industrial chemical or humid environments
Application Scenarios & Engineering Insights
The CI627A is a critical communication bridge in older Advant DCS architectures. In my experience, these modules rarely “die” from internal component failure; instead, they often suffer from backplane connector oxidation or static discharge damage during site maintenance. If your system reports “Link Timeout” errors, start by inspecting the module’s pins before assuming the board has failed.
Typical Use Cases:
- Petrochemical – DCS UpgradesMaintaining communication between legacy MasterPiece controllers and existing I/O islands during a phased plant upgrade.
- Power Generation – Turbine Auxiliary ControlHandling real-time data packets for auxiliary station monitoring and protection systems.
- Water Treatment – Remote I/O LinkLinking distributed process stations to the main control room in geographically spread-out facilities.
Troubleshooting Pro-Tip:
When swapping a CI627A, always take a snapshot of the DIP switch/jumper settings on the old board. Many people forget that these modules often have hardware-level address or baud rate settings that are not stored in the software. If you install a replacement with default settings, the link will fail to initialize.
Compatible Replacement Models
| Original Model | Replacement | Compatibility | Difference |
| CI627A | CI627 | ✅ Direct | Original version; functionally identical |
| CI627A | CI630 | ⚠️ System Review | Different protocol structure; check system map |
| CI627A | Modern Gateway | ❌ System Modification | Requires complete DCS migration; expensive |
Note: Since the CI627A is a specific communication interface, there is usually no “drop-in” modern equivalent from other vendors. If your module is malfunctioning, repairing or sourcing an original is the most viable path.
Troubleshooting Quick Reference
| Symptom | Probable Cause | Action |
| “FAULT” LED Red | Internal self-test failure | Perform power cycle; check rack power supply |
| Link Comm Error | Cabling or termination failure | Check MB300 link termination and connector pins |
| Module Not Visible | Hardware address mismatch | Compare DIP switch settings with original unit |
| Intermittent Dropped Packets | EMI or loose connection | Check shield grounding of the communication cable |
Safety Warning: While these modules are typically designed for “hot-swapping,” always confirm your specific DCS software version supports it before pulling the module out of an active rack. In some older Advant systems, removing a communication module while the processor is running can trigger a CPU “Halt” state.
