Description
The ABB CI855K01 3BSE018106R1 is a MasterBus 300 (MB300) communication interface module designed for ABB AC 800M controllers within the System 800xA automation platform. It provides communication between modern AC 800M controller systems and existing ABB Advant OCS / MB300-based control systems, allowing integration of legacy installations without complete system replacement.
The CI855K01 package includes the CI855 MB300 Interface Module and TP853 baseplate. It connects to the AC 800M controller through the CEX-Bus and supports MB300 master communication, network redundancy, clock synchronization, dataset communication, hot swap capability, and peer-to-peer data exchange.
This module is commonly used in process industries, power generation plants, marine automation systems, and industrial facilities where ABB Advant Controller 410/450, MasterPiece 200/1, or other MB300-based systems need to communicate with newer AC 800M and System 800xA platforms.

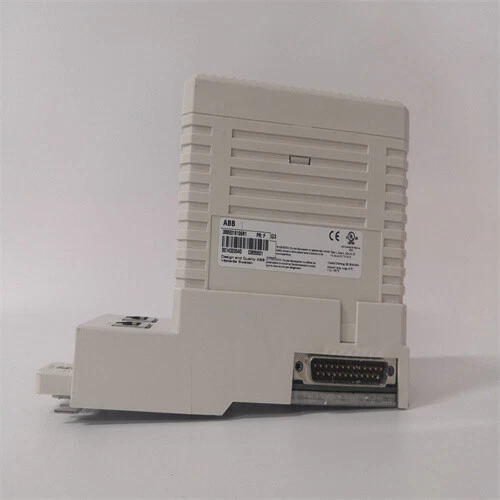

ABB CI855K01 3BSE018106R1
Product Specifications
| Specification | Details |
|---|---|
| Brand | ABB |
| Model | CI855K01 |
| Part Number | 3BSE018106R1 |
| Series | AC 800M / System 800xA |
| Product Name | MB300 Interface Module |
| Module Type | Communication Interface Module |
| Communication Protocol | ABB MasterBus 300 (MB300) |
| Communication Role | Master |
| Transmission Speed | 10 Mbit/s |
| Data Communication | Approx. 200 Datasets/s |
| Interface Connection | CEX-Bus |
| Connector Type | RJ-45 Female (8-pin) |
| Network Redundancy | Supported |
| Module Redundancy | Not Supported |
| Hot Swap | Supported |
| Baseplate Included | TP853 Baseplate |
| Power Supply | 24 VDC / CEX-Bus supplied |
| Maximum CEX-Bus Units | 12 |
| Mounting Type | DIN Rail Mounting |
| Operating Temperature | 0 to +55 °C |
| Protection Class | IP20 |
| Place of Manufacture / Origin | Sweden |
| Product Status | New Surplus / Tested PLC Spare Part |
| Dimensions | Approx. 59 × 185 × 127.5 mm |
| Weight | Approx. 0.7 kg |
| Country of Origin | Sweden |
| Discontinued | No |
Key Features
⚙️ MB300 Network Integration
Provides communication between AC 800M controllers and ABB legacy MB300-based systems, supporting gradual migration and hybrid control architectures.
⚙️ Reliable Industrial Communication
Supports 10 Mbit/s MB300 communication with dataset exchange for controller-to-controller and controller-to-system communication.
⚙️ Network Redundancy Support
Designed with redundant communication capability to improve system availability in critical industrial applications.
⚙️ Hot Swap Maintenance
Allows module replacement without extensive system shutdown procedures, reducing maintenance time.
⚙️ Legacy System Upgrade Solution
Enables ABB Advant OCS installations to connect with newer System 800xA environments while preserving existing control infrastructure.
Typical Applications
• ABB System 800xA control systems
• AC 800M controller communication expansion
• Advant Controller 410 / 450 integration
• MasterPiece 200/1 system migration
• Power generation automation
• Chemical and process control systems
• Marine automation and industrial DCS applications
Frequently Asked Questions
❓ Q: What is the function of ABB CI855K01 3BSE018106R1?
A: It is an MB300 communication interface module used to connect ABB AC 800M controllers with legacy ABB MB300-based control systems.
❓ Q: Which ABB systems are compatible with CI855K01?
A: It is designed for AC 800M and System 800xA environments and supports communication with ABB Advant OCS systems using MB300 protocol.
❓ Q: Does CI855K01 include the mounting base?
A: Yes. The standard CI855K01 package includes the CI855 module and TP853 baseplate.
❓ Q: What communication protocol does this module use?
A: It uses ABB MasterBus 300 (MB300) communication protocol.
❓ Q: Can this module be used for system upgrades?
A: Yes. It is commonly used for integrating existing MB300 installations with newer AC 800M and System 800xA control platforms.
❓ Q: Is CI855K01 still available from ABB?
A: The module remains part of ABB AC 800M communication solutions, although many units in the market are supplied as maintenance spares for existing installations.
