Description
- The ABB CI857K01 is a specialized communication interface module for the AC 800M controller. It enables seamless integration between the 800xA automation system and INSUM (Integrated System for User-optimized Motor control) devices, providing efficient supervision and control of motor control centers over a LonWorks network.
Product Parameters
- Communication Protocol: LonWorks (via INSUM)
- Hardware Interface: Ethernet-based to AC 800M
- Power Supply: 24 VDC (Typical via baseplate)
- Baud Rate: 78 kbps (LonWorks side)
- Max Units per Interface: Up to 128 devices
- Mounting: Horizontal or Vertical on TP853 baseplate
Product Specifications
- Origin: Sweden / Estonia
- Discontinued Status: Active
- Weight: 0.28 kg
- Dimensions: 185 x 59 x 127 mm
- Datasheet: Available upon request

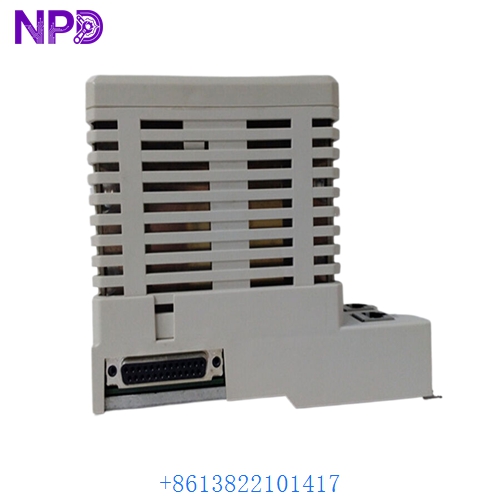

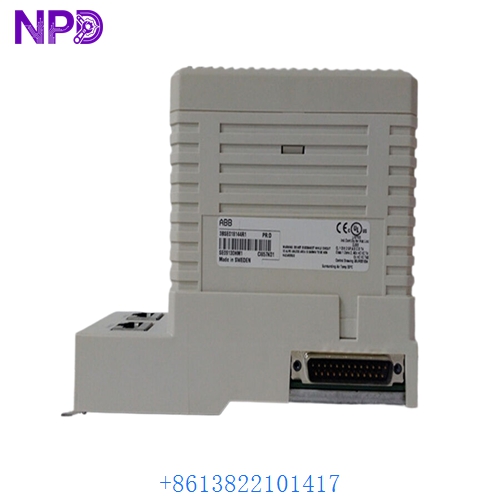

ABB CI857K01 3BSE018144R1
ABB CI857K01 3BSE018144R1
ABB CI857K01 3BSE018144R1
Application Fields
- Motor Control Centers (MCC): Real-time monitoring of intelligent motor starters.
- Process Automation: Data acquisition for current, voltage, and thermal state of motors.
- Power Distribution: Integration of circuit breakers and protection relays.
- Heavy Industry: Reliable communication in mining, cement, and pulp and paper mills.
Product Q&A
Q: What is the difference between the CI857 and the CI857K01? A: The “K01” designation usually refers to a kit version, which includes the communication module and the necessary baseplate or accessories for installation.
Q: Does this module support hot swap? A: Yes, it is designed for high availability and can be replaced while the system is powered (Hot Swap) without shutting down the entire controller.
Q: How does it communicate with the AC 800M CPU? A: It plugs into the CEX-bus (Communication Expansion bus) of the AC 800M controller, allowing the CPU to access motor data as standard I/O points.
