Description
🖥️ ABB CP6607 / 1SAP560710R0001 is a CP600-Pro series industrial control panel featuring a 7-inch TFT multi-touch display, 16 million colors, and 800 × 480 pixel resolution. It is designed for operator visualization and machine-control applications using ABB PB610 Panel Builder 600 and AC500 V3 Web Server environments. ABB identifies CP6607 as a CP600-Pro control panel with Chromium Browser support.
The panel provides a compact operator interface for PLC and automation systems, with industrial Ethernet connectivity, USB interfaces, serial communication capability, and a front IP66 protection rating. The complete product ID 1SAP560710R0001 should be matched when replacing an existing panel to maintain the intended hardware configuration.

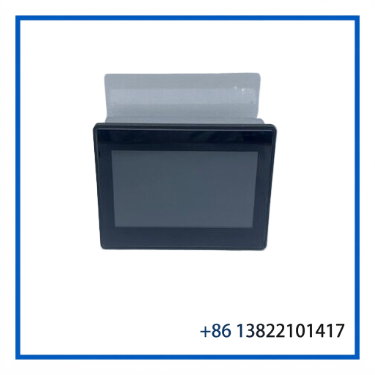

CP6607 1SAP560710R0001
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | CP6607 |
| Product ID | 1SAP560710R0001 |
| Series | CP600-Pro |
| Product Name | 7-inch Industrial Control Panel |
| Display | 7″ TFT Capacitive Multi-Touch |
| Resolution | 800 × 480 pixels |
| Display Colors | 16 Million |
| Supply Voltage | 18–32 V DC |
| Dimensions / Weight | Approx. 187 × 147 × 55 mm / 1.0 kg |
🔧 Key Features
- 🖥️ 7-inch TFT multi-touch operator display
- 🎨 16 million display colors
- 📐 800 × 480 pixel resolution
- 🌐 Industrial Ethernet communication interfaces
- 🔌 USB connectivity for engineering and service functions
- 🔄 Designed for ABB PB610 / Panel Builder 600 applications
- ⚙️ Supports visualization of AC500 V3 Web Server applications
- 🌍 Chromium Browser platform
- 🛡️ IP66 protection at the front
- 🌡️ Operating temperature range of approximately -20°C to +60°C
- 🔧 Compact panel-mount construction for industrial HMI applications
ABB’s product data specifies 18–32 V DC supply, approximately 147 mm height × 187 mm width × 55 mm depth, 1 kg net weight, and a 47 mm built-in depth. ABB also lists CP6607 among the CP600-Pro panels supporting PB610 applications and AC500 V3 Web Server visualization.
🔗 System Integration
The CP6607 can be used as an operator interface within ABB automation architectures, providing visualization and touch-based control functions between the operator and the control system. Its Ethernet and serial communication interfaces allow integration with compatible PLC, drive, and automation equipment. ABB’s CP600 platform is engineered using Panel Builder 600, which is part of ABB Automation Builder.
For an existing installation, check the Panel Builder project, firmware/BSP version, communication configuration, supply voltage, and panel cutout before replacement.
❓ FAQ
Q1: What is ABB CP6607?
It is a 7-inch CP600-Pro industrial control panel with a TFT multi-touch display.
Q2: What is the complete part number?
The product ID is 1SAP560710R0001.
Q3: What is the display resolution?
The CP6607 provides 800 × 480 pixels with 16 million colors.
Q4: What power supply does it require?
The specified supply range is 18–32 V DC.
Q5: Which engineering software is used with CP6607?
ABB identifies PB610 / Panel Builder 600 for CP600 panel engineering, with the software included within the ABB Automation Builder environment.
Q6: Can CP6607 replace another ABB CP600 panel?
Not automatically. Screen size, resolution, communication interfaces, panel cutout, project configuration, and firmware should be checked before substitution.
🔑 Product Keywords
ABB CP6607, 1SAP560710R0001, ABB CP600-Pro, ABB control panel, ABB HMI, 7 inch TFT HMI, ABB multi-touch panel, 800 x 480 HMI, PB610 Panel Builder 600, AC500 V3 Web Server, ABB operator panel.
For additional industrial automation replacement parts: New PLC DCS.
🔟 Other ABB Models to Consider
- ABB CP6605
- ABB CP6610
- ABB CP6615
- ABB CP6621
- ABB CP620
- ABB CP635
- ABB CP650
- ABB CP660
- ABB CP670
- ABB CP600-Pro Series
Before replacement, verify the complete product ID, display configuration, panel cutout, supply voltage, communication ports, project software, and firmware/BSP compatibility.
