Description
The ABB CS513 (Part Number: 3BSE000435R1) is a specialized communication interface board designed for the Advant OCS and MasterPiece 200/1 series control systems. This module acts as a dedicated processor card that enables RCOM (Remote Communication) protocol connectivity over point-to-point or multi-drop network topologies. Engineered to offload communication overhead from the main central processing unit, the CS513 manages long-distance data transmission, protocol translation, and error checking, ensuring highly reliable serial data links between geographically dispersed controllers, supervisory computers, and remote terminal units (RTUs).
Technical Specifications & Datasheet
- Product ID: 3BSE000435R1
- Model Designation: CS513
- Product Type: RCOM Communications Interface Board
- Protocol Support: RCOM / Serial Link
- System Compatibility: MasterPiece 200/1 / Advant OCS / AC450
- Dimensions (Width x Height x Depth): 240 mm x 310 mm x 25 mm
- Weight: 0.85 kg (1.87 lbs)
- Country of Origin: Sweden
- Power Requirements: Supplied via the subrack backplane (5V DC)
- Interface Type: RS-232C / RS-485 via matching subrack connection boards

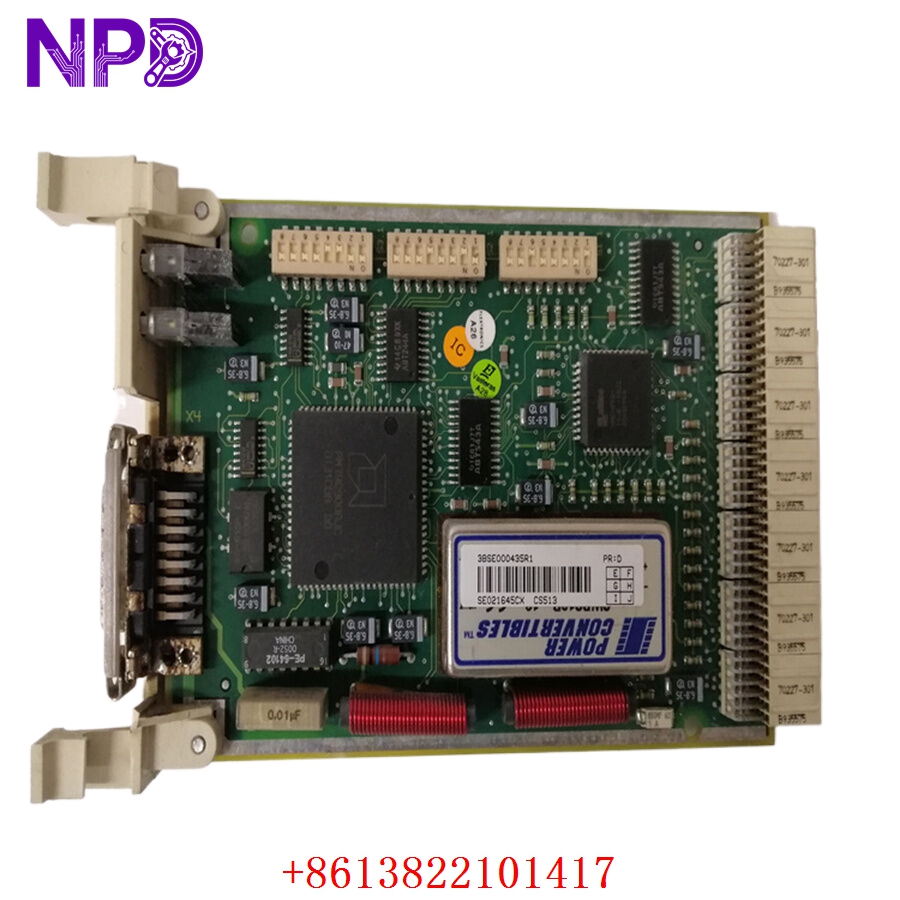

ABB CS513 3BSE000435R1

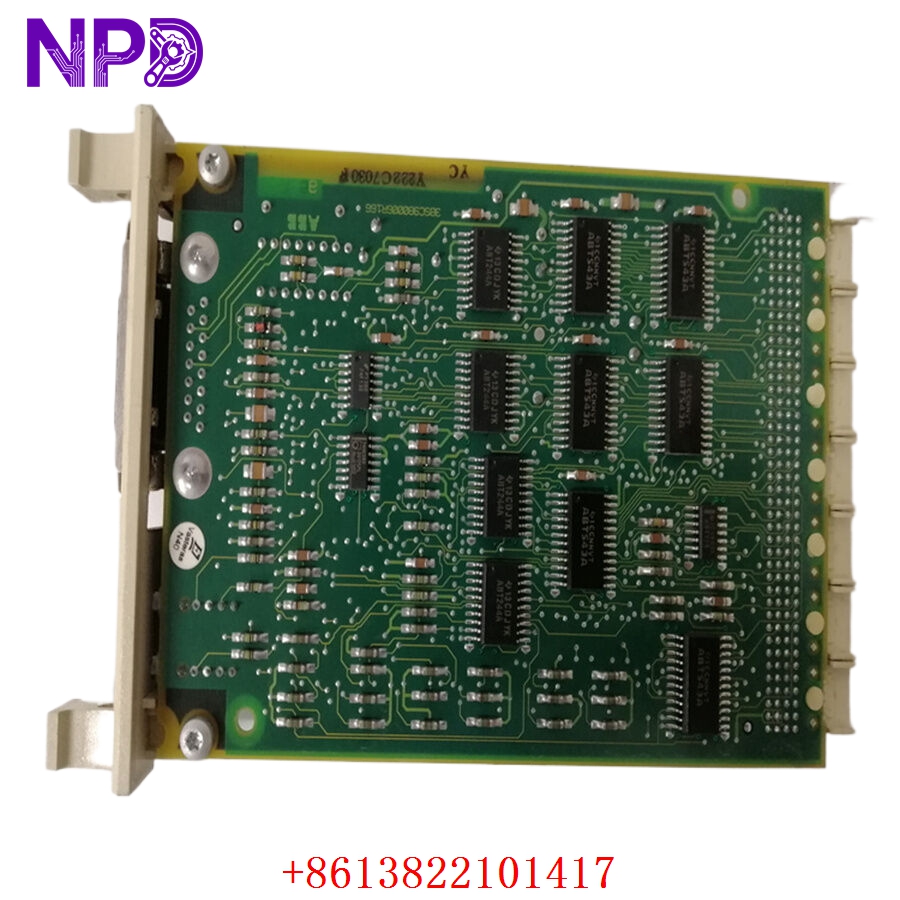

ABB CS513 3BSE000435R1
ABB CS513 3BSE000435R1
ABB CS513 3BSE000435R1
Target Application Fields
The CS513 communication module is widely utilized in large-scale infrastructure and process automation networks where data must be transmitted reliably across long distances. Typical applications include water distribution networks, wastewater treatment facilities, oil and gas pipeline monitoring, and electrical substations. It is also utilized in large manufacturing complexes, steel mills, and pulp processing facilities where master control stations require decentralized communication links to coordinate operations with auxiliary sub-systems.
Installation and Usage Instructions
Installation must be carried out in a completely de-energized environment by qualified technical personnel. Before removing the module from its protective packaging, ensure proper ESD grounding measures are active, such as using an anti-static wrist strap. Slide the CS513 module vertically or horizontally (depending on your specific rack orientation) into the designated slot of the controller subrack along the guide rails. Push firmly until the board’s high-density pins engage fully with the backplane connectors, then secure any front panel locking tabs or screws. Ensure that the corresponding connection unit or termination board on the rear of the rack is correctly wired for the specific serial interface requirements before applying power to the rack.
Frequently Asked Questions
Q: What is the primary purpose of the CS513 module in an older MasterPiece or Advant setup? A: The ABB CS513 3BSE000435R1 is specifically designed to handle the RCOM protocol, allowing the master controller to communicate with remote sub-stations or master computers over modems or dedicated serial lines without straining the main CPU.
Q: Can this module be plugged into a live controller rack? A: No, the CS513 does not support hot-swapping. Inserting or removing this board while the subrack power is switched on can cause electrical arcing across the backplane pins, potentially damaging the module’s processing chips or interfering with other active cards in the system rack.
Q: How are the node address and baud rate configured for this interface board? A: The hardware configuration, including the station address, transmission speed, and protocol parameters, is typically managed via onboard DIP switches or configured through the system software tools during the application engineering phase.
