Description
- Model: CSA464AE
- Part Number: HIEE400106R0001
- Brand: ABB (Switzerland)
- Series: UNITROL / MEGATROL Control & Excitation Systems
- Core Function: High-speed digital communication and signal processing interface
- Condition: New Surplus (Original factory stock, verified non-commissioned)
- Type: Communication/Interface Module
- Key Specs: Compatible with ABB AC 800PEC / UNITROL 6000 hardware environments
- Function: Serves as a bridge between the central processing unit and field-level I/O or power electronics.
- Communication Protocol: High-speed proprietary fiber optic or serial links (depending on system configuration).
- Processing: On-board logic for fast signal conditioning and fault monitoring.
- Form Factor: Standard ABB European-format PCB with high-density edge connectors.
- Diagnostic Features: Multi-LED status panel for hardware health, link activity, and fault identification.
- Compliance: Designed for the rigorous electromagnetic environments of power generation and heavy industry.
- Coating: Industrial-grade conformal coating to protect against humidity and conductive dust.

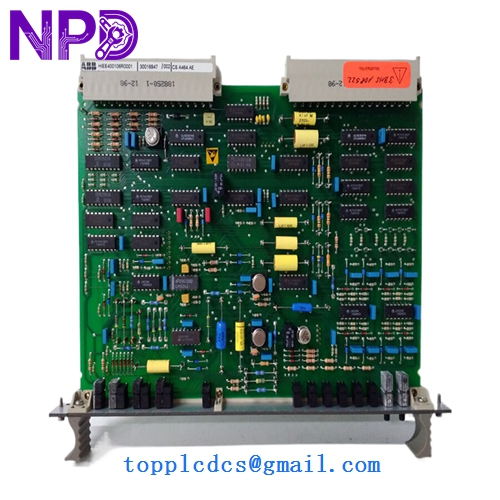

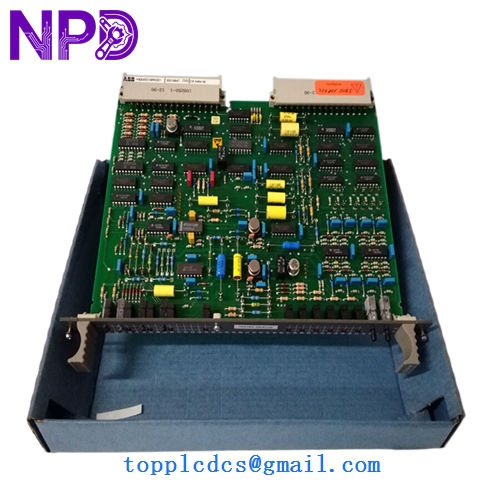

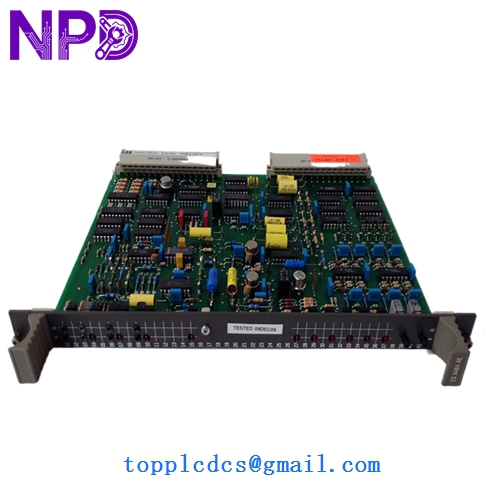

ABB CSA464AE HIEE400106R0001CSA464AE
Installation & Configuration Guide
Phase 1: Pre-Installation (15 Minutes)
⚠️ Safety Protocol:
- This module is typically part of an Excitation System (UNITROL). Failure to handle correctly can lead to a generator trip or loss of voltage control.
- Ensure the system is in “Manual” or “Off” mode before swapping, or verify that the redundant channel is fully functional.
- ESD Protection: Always use a grounded wrist strap. These high-speed CMOS components are highly susceptible to static damage.
Phase 2: Removing the Old Module (10 Minutes)
- Loosen the captive screws on the front panel of the CSA464AE.
- If fiber optic cables are connected to the front ports, label them carefully. Pro Tip: Do not bend fiber cables at a sharp angle (minimum bend radius is usually 30mm).
- Pull the module handles outward to disengage the backplane connection.
- Use a clean, lint-free cloth to check the backplane slot for any carbon scoring or debris.
Phase 3: Installing the HIEE400106R0001 (15 Minutes)
- Switch Alignment: Check the DIP switches or rotary dials on the new CSA464AE and match them exactly to the module you are replacing. These usually set the station address.
- Insertion: Slide the module along the guide rails. Push firmly until the module is flush with the rack.
- Connectivity: Reconnect all fiber and serial cables. Ensure they “click” into place.
Phase 4: Commissioning (20 Minutes)
- Power-Up: Apply power to the rack/chassis.
- LED Check: – The RUN LED should be solid green.
- The ERR/FLT LED should be OFF.
- Software Sync: Access the UNITROL Control Tool or AC 800PEC interface software. Verify that the hardware ID of the new module is recognized and that the communication status shows “OK.”
- Functional Test: Perform a signal trace or loop test to ensure the interface is correctly passing data between the field and the processor.
ABB CSA464AE HIEE400106R0001
Customer Cases & Industry Applications
Case 1: Hydroelectric Plant Excitation Recovery A hydropower facility in Scandinavia experienced a “Comm Failure” alarm on their UNITROL 6000 system. The issue was traced to a degraded CSA464AE module. With the generator down, the plant was losing thousands of dollars in revenue per hour. We provided a New Surplus HIEE400106R0001 from our stock, which arrived on-site via priority air within 48 hours. The module was replaced and the generator synchronized back to the grid that same afternoon.
Case 2: Industrial Rectifier Interface Refresh A large-scale aluminum smelter utilized MEGATROL systems for power conversion. During a planned maintenance window, several interface modules were flagged for preventative replacement due to years of operation in high-heat conditions. By purchasing our New Surplus stock, the smelter was able to refresh their critical I/O section with original ABB components while staying 40% under their projected maintenance budget.
ABB CSA464AE HIEE400106R0001
Frequently Asked Questions (FAQ)
Q: Is the CSA464AE compatible with older UNITROL 5000 systems? A: In my experience, the CSA464AE is specifically designed for the newer UNITROL 6000 and AC 800PEC architectures. If you are running a UNITROL 5000, please verify the part number in your manual. Often, these modules look similar but have different backplane pin-outs.
Q: What is the significance of the HIEE400106R0001 code? A: This is ABB’s unique “Material Number.” It identifies the exact hardware revision and firmware-ready state of the board. When ordering, this number is more critical than the model name (CSA464AE) because it ensures 100% compatibility with your specific system version.
Q: Can I hot-swap this module while the generator is running? A: Only if your system is configured for full redundancy. If you have a Dual Channel excitation system and the partner channel is currently “In Control,” you can swap the faulty unit. However, I always recommend checking the “Ready for Changeover” status on your HMI first.
Q: Why buy “New Surplus” for such a critical component? A: ABB production cycles for spare parts can be long, often 12-20 weeks. Our New Surplus HIEE400106R0001 units are “shelf-new”—original parts that were never used and are kept in climate-controlled storage. You get the same performance and a full 12-month warranty, but without the long lead time.
Q: Do you offer technical support if I have trouble with the software sync? A: While we are a parts supplier, we have a network of technical experts who specialize in UNITROL systems. If you encounter a software “Firmware Mismatch” during installation, we can provide guidance on how to perform a firmware download using the ABB standard service tools.
