Description
- Model: D674A906U01
- Brand: ABB (Germany)
- Series: ProcessMaster 300 / HygienicMaster 300 / FET 300
- Core Function: Electronic transmitter cartridge for signal processing and display
- Product Type: Plug-in Module / Transmitter Cartridge (New Surplus)
- Key Specs: U-High HART communication | 100–230V AC Power | Integrated HMI Display
- Compatibility: Dedicated for ABB FEP300 (ProcessMaster) and FEH300 (HygienicMaster) series
- Input: High-frequency flow sensor signals from electromagnetic flow tubes
- Output: 4–20 mA analog signal + HART digital protocol
- Power Supply: Universal 100 V to 230 V AC (Loop-powered versions also exist, but this specific ID is often AC-sourced)
- Communication: HART 5 / HART 7 protocol support
- User Interface: Integrated backlit LCD with a 4-button capacitive or push-button interface
- Protection Class: IP20 (when installed in the transmitter housing)
- Operating Temperature: -20 °C to +70 °C (-4 °F to +158 °F)
- Weight: 0.25 kg (approx. 0.55 lbs)
- Diagnostics: Built-in self-monitoring for sensor integrity and coil health

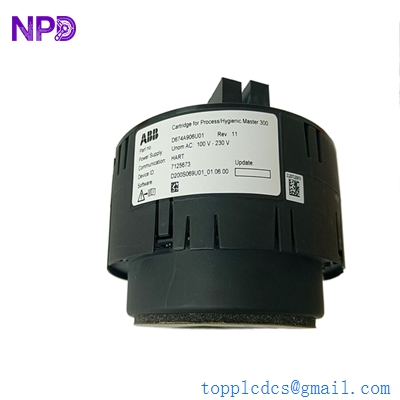

ABB D674A906U01
Installation & Configuration Guide
Phase 1: Preparation (Pre-Installation)
⚠️ Safety First:
- Ensure the power to the flowmeter housing is completely disconnected.
- Static Protection: Electronic cartridges are highly susceptible to ESD. Use a grounded wrist strap.
- Firmware Check: Note the software version on the side label of the new D674A906U01 to ensure it matches your existing DCS mapping.
Phase 2: Removal of Faulty Module
- Housing Access: Unscrew the front cover of the ProcessMaster transmitter (the part with the glass window).
- Disconnecting: If your model has a local display cable, unclip it. Most D674A906U01 units are “plug-and-play” and slide directly into a pin-header on the backplane.
- Extraction: Gently pull the cartridge toward you. If it feels stuck, do not pry with a screwdriver; verify the retaining clips are fully released.
Phase 3: New Module Installation

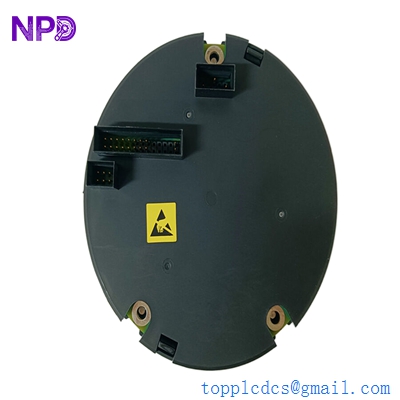

- Orientation: Align the pins on the back of the D674A906U01 with the socket inside the housing.
- Seating: Press firmly until the cartridge clicks into place. You should feel the connectors engage.
- Sealing: Inspect the O-ring on the transmitter cover. A degraded seal will lead to moisture ingress, which is the #1 cause of cartridge failure in wash-down environments.
Phase 4: Commissioning & Testing
- Power-On: Restore 230V AC power. The display should initialize within 5–10 seconds.
- Language/Units: Use the local buttons to set the flow units (e.g., m³/h or GPM) and pulse outputs.
- HART Verification: Connect a HART 475 or 700 communicator to the current loop. Verify you can “Read” the device ID and that the “PV” (Primary Value) matches the actual flow conditions.
- Zero Point: If the pipe is full and the flow is zero, perform a “Zero Point Adjustment” via the “Maintenance” menu to ensure maximum accuracy.
ABB D674A906U01
Customer Cases & Industry Applications
Case 1: Recovery from Lightning Surge in a Chemical Plant
Situation: A chemical processing plant in Southeast Asia experienced a localized lightning strike near their outdoor pipe rack. The ProcessMaster 300 flowmeter on a critical acid line went dark—the display was dead and the 4–20mA signal dropped to 0mA.
Task: The plant could not measure the acid feed, stalling the entire batch process. Every day of delay cost $15,000 in lost production. The sensor (the flow tube) was buried 2 meters underground, making a full replacement impossible.
Action: Diagnostics confirmed the flow tube was fine, but the electronics had fried. We provided a New Surplus D674A906U01 from our warehouse. It was shipped via international express and arrived in 48 hours.
Result: The electrician swapped the cartridge in 15 minutes. After re-entering the calibration factor (found on the original sensor nameplate), the meter was back to 0.5% accuracy. The plant avoided an expensive excavation.
Case 2: Upgrading Communication in a Food & Beverage Facility
Situation: A brewery was upgrading their automation from manual monitoring to a centralized DCS. Their older HygienicMaster 300 meters lacked the HART capabilities required for remote diagnostics.
Task: The facility needed to enable HART 7 communication across 12 meters without replacing the expensive stainless-steel flow sensors.
Action: We supplied 12 units of the D674A906U01 Rev 08. Since these cartridges contain the “brains” of the meter, replacing the old basic cartridges with these HART-enabled versions provided an instant digital upgrade.
Result: The facility now monitors “Tube Health” and “Coil Temperature” from the control room, allowing for proactive maintenance before a meter fails mid-brew.
ABB D674A906U01
Frequently Asked Questions (FAQ)
Q: Is the D674A906U01 compatible with the ProcessMaster 500? A: No. The D674A906U01 is specifically designed for the 300 series (FEP300/FEH300). The 500 series uses a different electronic architecture. Always check the first three digits of your model number.
Q: Do I need to recalibrate the sensor after replacing the cartridge? A: You must enter the “Sensor Calibration Factor” (often called the S-Factor) into the new cartridge’s menu. This factor is unique to the physical pipe (sensor) and is printed on the sensor’s nameplate. Once entered, the meter is calibrated.
Q: What does “U-High HART” mean? A: “U-High” refers to the universal high-voltage power supply (100–230V AC). “HART” means the board supports Highway Addressable Remote Transducer protocol for digital communication over the analog loop.
Q: Can I replace this “hot” (while power is on)? A: Honestly, it is not recommended. While some industrial modules claim hot-swap capability, the AC power pins on the backplane can spark, potentially damaging the new cartridge or the backplane itself. Always power down first.
Q: What happens if the display shows “Error 01”? A: Error 01 usually indicates a “Sensor Disconnected” or “Coil Fault.” If you just installed the D674A906U01, verify that the cartridge is pushed all the way into the socket—90% of the time, it’s just a poor physical connection.
