Description
- Model: ABB D674A906U01
- Brand: ABB (formerly Bailey / Hartmann & Braun)
- Series: Symphony Harmony / Advant OCS
- Core Function: Power scaling and rack interface management
- Product Type: Printed Circuit Board (PCB) / Power Module
- Key Specs: 24 V DC Logic Multi-rail Distribution High-MTBF Design
- Input Voltage: 24 V DC (Dual redundant inputs supported)
- Bus Interface: Standard ABB rack-mount backplane connector
- Operating Temp: 0°C to +70°C (32°F to 158°F)
- Signal Handling: Integrated voltage scaling and logic-level conditioning
- Indicators: Front-panel LED status for ‘Power OK’ and ‘Fault’
- Protection: On-board fuse protection and surge suppression
- Isolation: Galvanic isolation between power rails and logic bus
- Form Factor: Dedicated ABB vertical rack-mount PCB
- Test Points: Accessible gold-plated test points for multimeter verification
- Configuration: Hard-wired logic with jumper-selectable redundancy modes (Rev dependent)

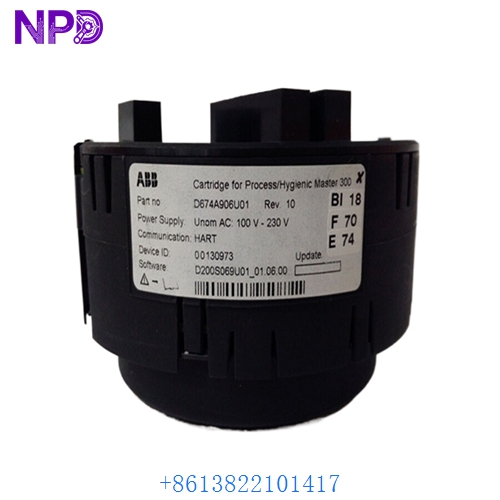

ABB D674A906U01

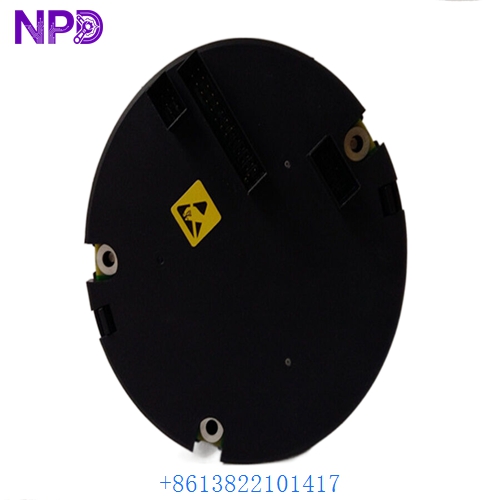

ABB D674A906U01
Application Scenarios & Pain Points
In a 24/7 continuous process like a wastewater treatment plant or a cement kiln, the ABB D674A906U01 acts as the gatekeeper for rack power. The primary pain point with these legacy boards is “Component Aging”—specifically the electrolytic capacitors and voltage regulators. After 15+ years of heat soak in a control cabinet, these components start to drift. This leads to “Low Voltage” alarms on the DCS console even when the primary power supply is healthy, often resulting in unnecessary and expensive manual overrides.
Typical Application Scenarios:
- Power Generation – Symphony Harmony DCS Distributing redundant 24V power to controller and I/O racks in steam turbine control systems.
- Oil & Gas – Advant OCS Integration Providing stable power signaling for remote I/O stations in hazardous refinery environments.
- Mining & Metals – Smelter Control Managing power interfaces in high-EMI (Electromagnetic Interference) environments where signal conditioning is vital.
Case Study: The “phantom Power Loss” in a Steel Mill
Background: A steel mill in East Asia was suffering from random rack shutdowns on their Symphony system. The DCS would log a “Total Power Loss,” but the electricians found the 24V bus was perfectly stable at 24.05V.
The Problem: The issue was traced to an aging ABB D674A906U01 board. The onboard voltage comparator was failing intermittently due to heat, sending a “False Zero” signal to the processor. The processor, thinking it had lost power, would execute a safety shutdown of the entire rack.
The Solution: We provided a “New Surplus” D674A906U01 that had been stored in a climate-controlled environment. Before shipping, we performed a 48-hour load test on our ABB test rig to ensure the comparator thresholds were rock-solid.
The Result: – Operational Impact: The random shutdowns stopped immediately after the swap.
- Outcome: The mill avoided an estimated $65,000 in lost production and “re-heating” costs associated with a sudden line stop.
- Client Feedback: “The board was clean, no oxidation, and worked straight out of the box.”
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Integration Effort |
|---|---|---|---|---|
| D674A906U01 | D674A906U02 | ✅ Direct Replace | Updated component tolerances | Drop-in; zero config |
| D674A906U01 | D674A906U501 | ✅ Direct Replace | Refers to the full assembly | Drop-in |
| D674A906U01 | SPASI series | ❌ Incompatible | Next-gen Symphony Plus | Requires full rack upgrade |
Troubleshooting Quick Reference
| Symptom | Likely Cause | Board Related? | Quick Check | Action |
|---|---|---|---|---|
| ‘Power OK’ LED Dark | Blown onboard fuse | ✅ High | Check continuity across F1/F2 fuses. | Replace fuse or board if fuse blows again. |
| False ‘Low Power’ Alarm | Voltage scaling drift | ✅ High | Measure voltage at the TP1 test point. | If < 4.75V (for 5V logic), replace board. |
| Intermittent Bus Errors | Connector oxidation | ⚠️ Medium | Inspect the backplane gold pins for film. | Clean with contact cleaner and eraser. |
| Red ‘Fault’ LED On | Logic failure | ✅ High | Cycle rack power. | If LED stays red, the board logic is dead. |
Integrator’s “Field Tips”:
- The Eraser Trick: Since the ABB D674A906U01 uses gold-plated edge connectors, they can develop a non-conductive film in humid or sulfurous environments. Before you condemn the board, take a high-quality white block eraser and gently clean the pins until they shine. It fixes about 40% of “dead” boards in my experience.
- Redundancy Check: If you are running a redundant setup, make sure the jumper settings on the new board match your old one exactly. If they don’t, the two boards might “fight” each other for control of the power signal, leading to more alarms. Photograph the jumpers before you pull the old card!
- Heat Management: If this board failed due to heat, check the fans at the bottom of your ABB rack. These power boards are usually the first to go when airflow is restricted.
