Description
Product Core Brief
- Model: ABB D685A1156U01
- Brand: ABB (Switzerland)
- Series: Process Instrumentation / Spare Components
- Core Function: Backplane/baseplate for field transmitter electronics
- Type: Backplane / Baseplate Module
- Key Specs: Universal backplane for dual-compartment transmitters Fits FEX300 & FEX500 instruments Supports signal/data transfer paths
ABB D685A1156U01
Key Technical Specifications
- Function Role: Universal backplane / baseplate for field transmitters (dual-compartment)
- Compatible Devices: ABB FEX300 / FEX500 electromagnetic flow transmitters
- Part Type: Spare backplane/baseplate element
- Mounting Style: Chassis/backplane support structure
- Signal Paths: Electrical/communication interface routes within transmitter housing
- Temperature Suitability: Field housing operating range per instrument specs (typ. industrial range)
- Environmental Rating: Per transmitter (often IP67 when installed in housing)
- Physical Support: Provides mechanical/cable organization within dual-compartment housing
- OEM Part Class: Documented spare part in ABB operating instrument manual
Installation & Configuration Guide
Preparations & Safety (≈10 min)
⚠️ Important: Before handling field transmitters, always follow local electrical safety and lockout/tagout procedures.
- Schedule maintenance with operations; ensure minimal process disruption.
- De-energize the transmitter and disconnect power/loop wiring.
- Take photos of existing housing internals and wire routing for reference.
Tools
- Insulated screwdriver set
- Torque-rated terminal drivers
- Labels and marker
- Camera for documentation
Removal of Old Backplane (≈5 min)
- Open field transmitter housing per manufacturer’s instructions.
- Disconnect cable harnesses gently—label connectors.
- Remove old backplane/baseplate from housing frame.
- Inspect connectors, cable routing clips, and seals.
Pro tip: Avoid twisting or pulling harnesses; transmission wires are delicate.
Installing New D685A1156U01 Backplane (≈10 min)
- Insert new baseplate/backplane into housing frame aligned with mounting guides.
- Secure retention points (screws/clips) to specified torque.
- Reconnect field wiring harnesses to corresponding terminals.
- Ensure cable ties/strain relief are properly placed.
Checklist
- Correct part installed
- Wiring terminals matched and torqued
- Housing seals intact
Power-Up & Functional Test (≈15 min)
- Restore loop power (4–20 mA or system supply as applicable).
- Confirm transmitter powers up normally (indicator/status).
- Verify communication interface (HART/other) if present.
- Calibrate or confirm measurement outputs per instrument manual.
If you observe irregular readings or communication errors, re-verify wiring and continuity.
Customer Cases & Industry Applications
Case 1: Field Transmitter Spare for Water Treatment Plant
Situation:
A regional water treatment facility deployed ABB electromagnetic flow transmitters (dual-compartment) for influent monitoring. During routine maintenance, a baseplate failure was seen on one transmitter.
Task:
The operations team needed a spare backplane to minimize process downtime and avoid loss of flow data that triggers pump adjustments.
Action:
We supplied ABB D685A1156U01 as a strategic spare in their inventory. Technicians replaced the backplane within one shutdown window.
Result:
Full transmitter functionality restored; plant avoided destabilizing feed control loops. The operations engineer updated their reorder point to include one spare per critical site.
Case 2: Chemical Process Unit Reduces Safety Trips
Situation:
In a mid-size chemical plant, frequent transmitter faults in high-humidity zones caused unexpected process trips.
Task:
Maintenance needed reliable housing electronics and strategic buffer stock for core components within transmitter assemblies.
Action:
ABB D685A1156U01 units were stocked and used proactively on units with recurrent issues.
Result:
Process reliability improved; scheduled maintenance replaced suspected aging bases before failure. Cross-site sharing ensured parts were available across the facility group.

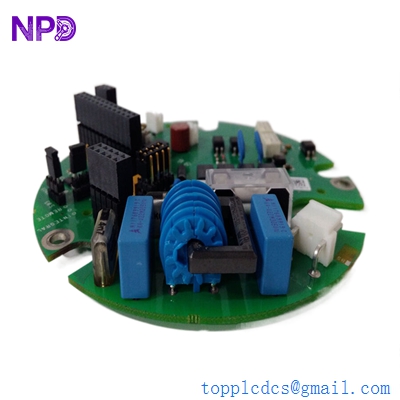

ABB D685A1156U01
Frequently Asked Questions (FAQ)
Q1: What is ABB D685A1156U01 used for?
A: It is the universal backplane/baseplate for dual-compartment field transmitter housings like FEX300/FEX500, serving as the structural and electrical interconnection platform for internal modules.
Q2: Is this module specific to one transmitter model?
A: It is referenced in spare part lists for dual-compartment instrument housings; always confirm compatibility with your instrument model and transmitter series.
Q3: Do I need to power down process loops to replace it?
A: Yes. Always de-energize the transmitter and its power/loop wiring before removal; hot swapping internal backplanes is not recommended.
Q4: How should this be stocked in inventory?
A: Keep one spare per critical process unit as buffer stock, especially if lead time variability or supplier constraints have been observed.
Q5: What’s the warranty?
A: Standard 12-month warranty from shipment, covering manufacturing defects.
